What Does a Tungsten Grinder Do

A tungsten grinder prepares the tip of a TIG welding electrode to the correct angle and surface finish for the job at hand. That is the plain answer. The machine holds the electrode at a fixed angle against a diamond wheel and grinds the tip lengthwise, producing a smooth, consistent point every time. A correctly prepared tungsten gives you a stable arc, a cleaner arc start, better weld quality, and noticeably longer electrode life.

If you TIG weld in New Zealand, there is a good chance you currently sharpen your tungsten on a bench grinder or an angle grinder. It works, more or less, and plenty of experienced welders have done it that way for years. But if you have ever watched your arc wander across a stainless joint, struggled with erratic arc starts on aluminium, or thrown away half a tungsten because the tip kept splitting, the problem may not be your technique or your machine. It is very often the way the electrode was ground.

This article explains what a tungsten grinder does, why grinding direction and angle matter so much, what the health risks of tungsten dust are, and how to decide honestly whether a dedicated grinder belongs in your workshop.

Why Tungsten Preparation Matters in TIG Welding

TIG welding depends on a focused, predictable arc, and the arc takes its shape directly from the geometry of the tungsten tip. Change the tip, and you change the arc.

A pointed tip concentrates the arc into a narrow column. This suits DC welding on steel and stainless steel, where you want tight control and deep penetration in a precise joint. A balled tip spreads the arc more broadly and handles the alternating polarity of AC welding, which is why it is the traditional preparation for aluminium. A blunt or truncated tip, where the very end of the point is ground flat, resists erosion under high amperage and stops the fine point from melting off and dropping into the weld pool.

When the geometry is wrong, the symptoms show up quickly. The arc wanders and searches instead of locking onto the joint. Penetration becomes inconsistent along the bead. Tungsten particles break away and contaminate the weld, which matters enormously in stainless fabrication and food processing equipment, where weld integrity is inspected. None of this is random. It traces back to a tip that was ground at the wrong angle, unevenly, or in the wrong direction.

What Is a Tungsten Grinder?

A tungsten grinder is a dedicated machine designed to shape tungsten electrodes accurately and repeatably, and its core features make it safer and more consistent than improvised methods. Three things separate it from the bench grinder in the corner of your workshop.

First, the wheel. Tungsten is an extremely hard material, and a tungsten grinder pairs a purpose-built motor with a diamond wheel that cuts it cleanly, leaving no jagged edges or a rough surface finish. A standard aluminium oxide wheel struggles with tungsten and can also transfer contamination from whatever else has been ground on it, and that contamination ends up in your weld.

Second, angle control. The machine holds the electrode in a guide set to a specific angle, and adjustable models commonly cover a range broad enough for virtually any TIG application, so every electrode you prepare comes out identical. Consistency is the point. Most machines accept common electrode sizes from 1.0mm to 3.2mm, with some models handling 4.0mm. When each tungsten behaves the same way, your welding becomes predictable, and diagnosing problems becomes far easier.

Third, dust capture. The grinding chamber is enclosed and collects the fine tungsten dust at the source rather than releasing it into the air around your face. That is a genuine health benefit, which we cover below, and it also keeps loose particles away from your work area.

Tungsten grinders come in portable, benchtop, and automatic units. Some models, including cordless kits, add a cutting function alongside the grinding wheel. This enables the quick removal of a contaminated tip before regrinding, which is the correct way to handle a dipped tungsten. Grinding away contamination often just smears it across the wheel, ready to be picked up by the next electrode.

Longitudinal vs Radial Grinding and Why It Matters

This is the core technical difference between a tungsten grinder machine and a bench grinder, and it is the one most welders have never been told about.

When you hold a tungsten against a bench grinder wheel and spin it by hand, the grinding marks run around the tip's circumference. That is radial grinding. Those circular grooves sit at right angles to the direction the arc wants to travel. The arc hunts across the ridges, looking for the path of least resistance, causing it to rotate around the tip, split, and wander. You feel this as an arc that will not settle, especially at low amperage on thin material.

A tungsten grinder does the opposite. It grinds longitudinally, so the grind marks run along the length of the electrode toward the tip. Tungsten is manufactured with its grain running lengthwise, and grinding with that grain leaves smooth channels that guide the arc steadily off the very end of the point. The arc starts straight, stays narrow, and holds its position.

The outcome, in plain terms: a longitudinally ground tungsten gives you a stable, concentrated arc that goes where you point it. A radially ground tungsten gives you an arc that argues with you. Same machine, same settings, same filler, completely different result, purely because of the direction of a few microscopic grooves.

Tungsten Electrode Tip Shapes at a Glance

Treat the table as a starting point rather than a rulebook. Machine settings, joint design, and electrode type all influence the final choice, and a grinder with adjustable angle settings lets you test what works best for the tungsten sizes and jobs in your own workshop.

Tungsten Dust: Health and Contamination Risks

Grinding tungsten produces very fine dust, and it deserves a mention in any honest discussion of electrode preparation.

The most significant concern involves thoriated tungsten, the familiar red-tipped electrode still found in many New Zealand workshops. Thorium is a low-level radioactive material, and while the electrode itself poses little risk sitting in its packet, grinding releases thorium-bearing dust that can be inhaled. Inhalation is the primary route of exposure, and the standard advice from welding authorities is to control dust at the source with extraction or enclosed capture, to wear appropriate respiratory protection when grinding, and to consider thorium-free alternatives such as ceriated or lanthanated tungsten. WorkSafe NZ expects employers to manage airborne contaminants in the workshop like any other health hazard, and tungsten dust falls squarely within that duty.

There is no need for alarm here, only good workshop hygiene. An enclosed tungsten grinder captures dust where it is created rather than letting a bench grinder throw it into the air, and wet-grinding models offer superior cooling while further reducing the risk of dust inhalation. The same enclosure also prevents loose tungsten particles from settling onto your work and later contaminating the weld pool. It is a practical improvement on two fronts at once.

What Is a Cordless Tungsten Grinder?

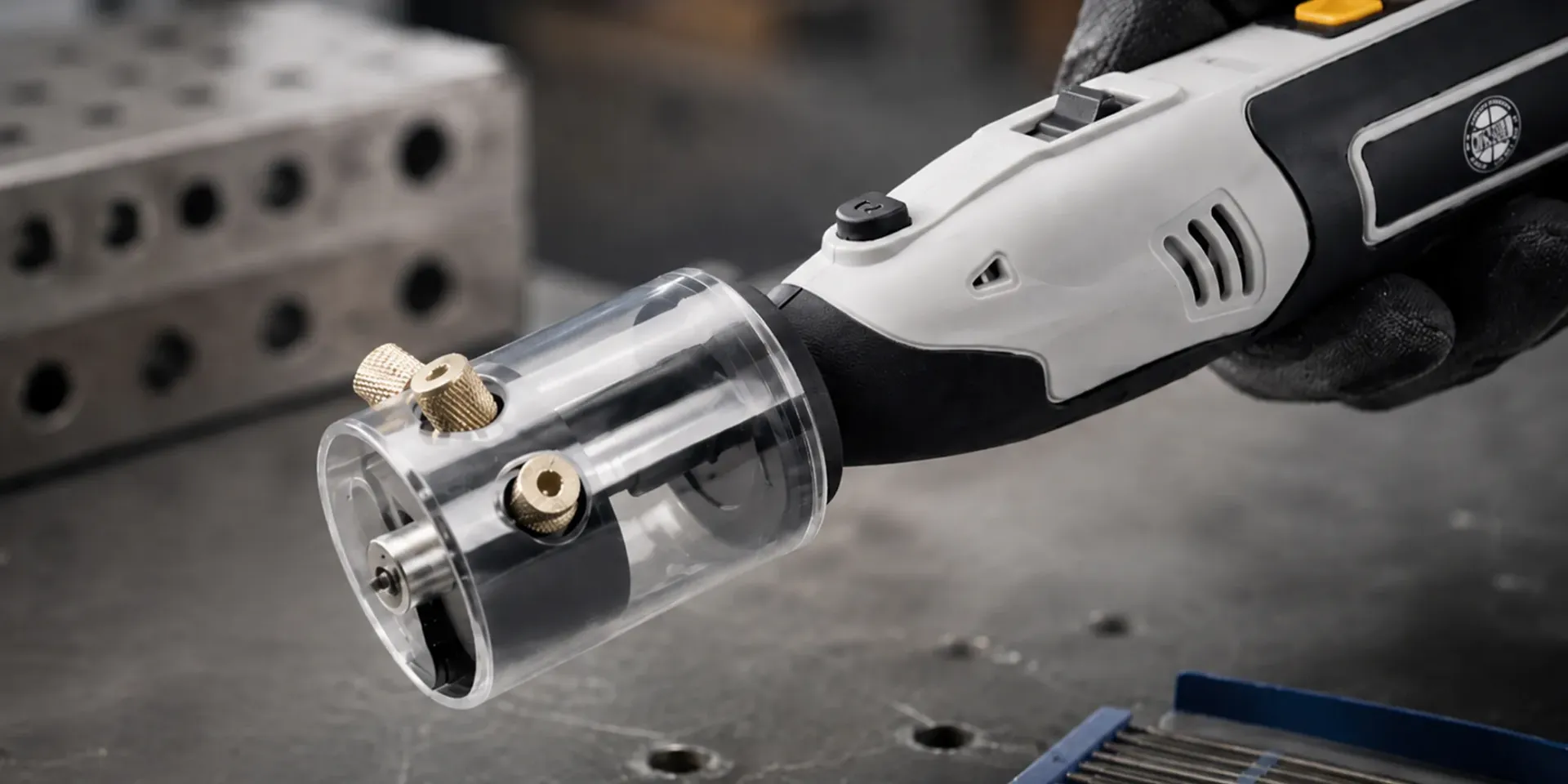

A cordless tungsten grinder is exactly what it sounds like: the same dedicated grinding function, powered by a battery, in a compact handheld format. The appeal is portability, lightweight handling, and fast electrode preparation on a job site, which matters most for mobile welders when prep cannot wait. Plenty of New Zealand workshops run TIG at more than one station, and site work, marine repair, and maintenance jobs regularly happen well away from a fixed bench. A cordless unit travels with the welder, so electrode preparation happens properly wherever the welding takes place, rather than being skipped or improvised because the grinder is back at the workshop.

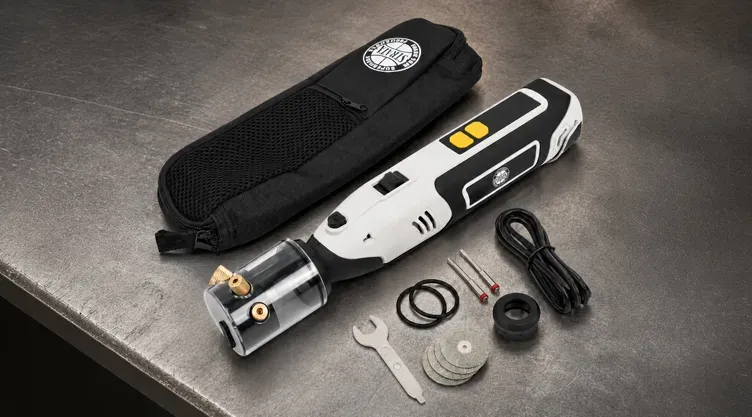

The Strata Cordless TIG Tungsten Grinder and Cutter Kit is a good example of the format. It combines longitudinal diamond grinding with a cutting function in a single portable tool with a dedicated grinding head, so a welder can cut off a contaminated tip and regrind it to a consistent angle in seconds, right on the spot. For a mobile welder or a workshop with several bays, that convenience translates directly into weld quality, because electrodes are actually prepared correctly every time rather than only when it is convenient.

Do You Really Need a Tungsten Grinder?

An honest answer, because not everyone does.

If you are an occasional hobby welder running DC on mild steel, and you take care to grind lengthwise on a clean, dedicated wheel, a bench grinder can produce an acceptable tip. Careful welders have managed this way for decades, and for low-stakes work, the difference may not justify the spend.

The calculation changes as soon as your work becomes more demanding. If you weld stainless where contamination shows, aluminium where arc stability on AC is hard-won, thin material where the arc must sit exactly on the joint, or you simply TIG-weld regularly, a dedicated grinder pays for itself. You get repeatable angles, a noticeably more stable arc, fewer rejected welds, and electrodes that last significantly longer because they are ground cleanly and reground less often. Add the dust capture benefit, particularly if thoriated tungsten is anywhere in your workshop, and the case becomes straightforward.

For most professional and serious hobby TIG welders in New Zealand, the best tungsten grinder is the one that gets used consistently. A cordless kit like the Strata grinder and cutter delivers professional results because proper preparation is available wherever the work is done. The price can seem steep at first, but the performance and reduced waste save money over time. Weld quality begins before the arc ever strikes, and it begins at the tip of the tungsten.
