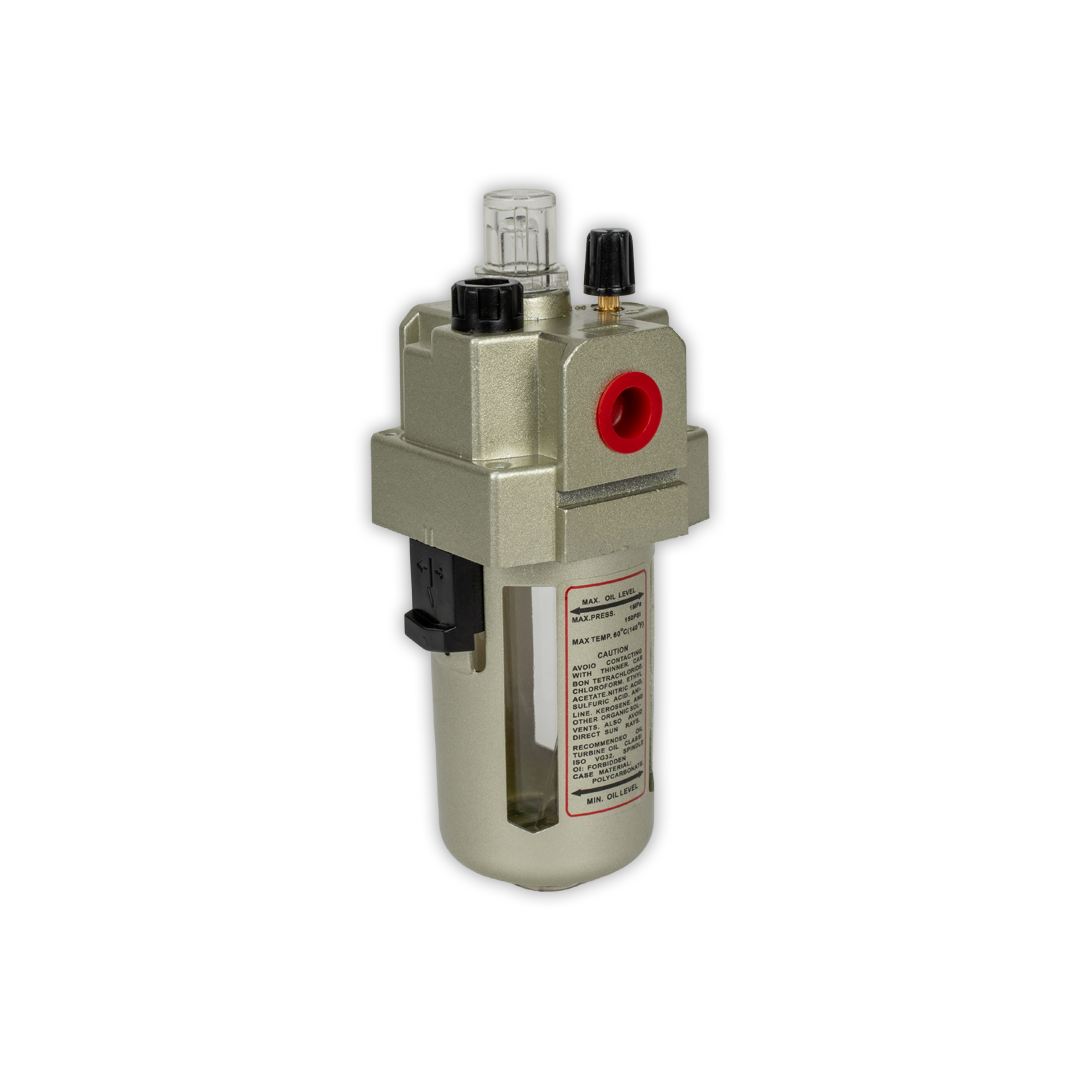

1/4" NPT Modular Air Line Lubricator, 60 cfm Max. Flow, 150 psi Max. Pressure

Brand: Air Command
SKU: ACL2000
1/4" NPT Modular Air Line Lubricator, 60 cfm Max. Flow, 150 psi Max. Pressure
$ 25 .00
$ 28.75 Incl GST
Free shipping on orders over $300
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

1/4" NPT Modular Air Line Lubricator, 60 cfm Max. Flow, 150 psi Max. Pressure

Product Details


Lubricator maintains a constant oil-to-air density over a wide range of flow. Provides lubrication for multiple pneumatic tools/devices. An integral flow sensor provides proportional control. Comes equipped with a red 360° sight/feed dome. For the Max. Flow, the CFM is based on 90 psig inlet and 5 psig pressure drop.

• Modular connector allows easy removal and swap out
• Up to 50-ft. pipe runs
Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, andor air compressor systems using synthetic fire-resistant lubricants.

Specifications

Products specifications
ItemModular Air line lubricator
SeriesIntermediate
Bowl MaterialPolycarbonate with steel Guard
Pipe Size1/4" NPT
Max. Flow60 cfm
Max Pressure150 psi
Body MaterialAluminium
Max. Temp125 Degrees F
Bowl Size3.5 oz
Adjustment TypeScrewdriver
Oil Feed typeMicromist
Sight Dome IncludedYes
Dome MaterialTransparent Nylon
Max. Pipe Run50fit
Dimension2.45x2.68x8.15
