Arcbro Stinger 4800 CNC Cutting Table 1300x2500mm

Brand: Arcbro
Style: Arcbro
SKU: 34362
Qualifies for Free Shipping
Arcbro Stinger 4800 1300x2500mm CNC Cutting Table
Arcbro Stinger 8400 CNC Cutting Table 1300x2500mm

Arcbro Stinger 4800 CNC Cutting Table 1300x2500mm

Now only:
Product Overview
Product Videos
Learning Center
Product Overview

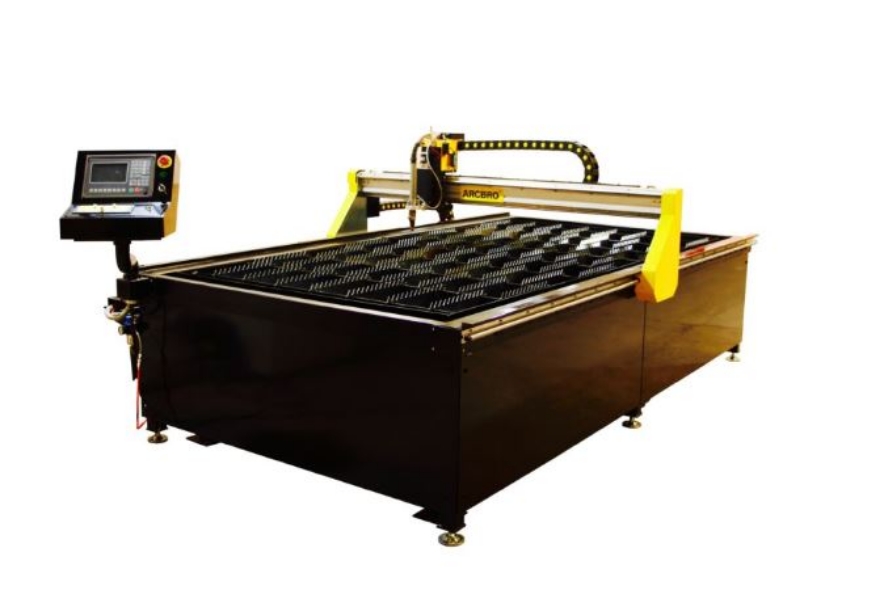

Arcbro Stinger 4800 CNC Cutting Table 1300x2500mm

Key Features

- Compact and smart design for workshop

- Cutting size: 1300x2500mm

- Cutting capacity: 0.3mm - 20mm

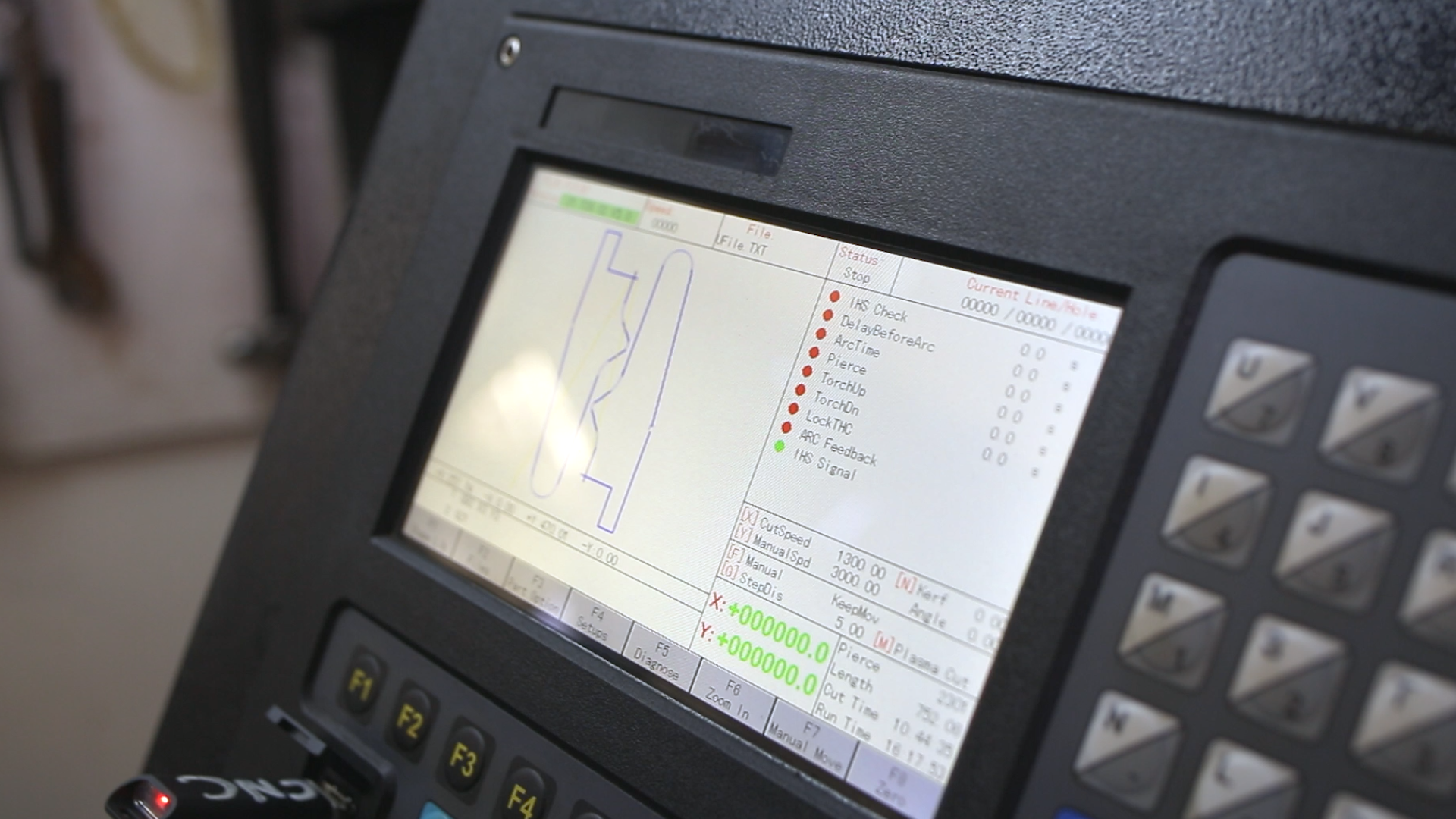

- 7'' true colour LED screen with mirror imaging

- 24 pre-set patterns to help user set up machine and commence running efficiently

- Nesting software is included with the machine package and can read any TXT format NC code

- Two THC modes - Air pressure height control and arc voltage height control

- Quality square guide rails on XY axis, running speed can be up to 12000mm/min and cutting speed up to 6000mm/min

- Runs updated Smart Servo motor system

- Three cutting modes - pneumatic height adjustment mode, high arc voltage mode and capacitor height adjustment mode

- Air dusting table available on request

- FastCam Pro Software with Auto Nesting - Easy to operate and capable to handle your most demanding cuts

- Includes: Control system, FastCAM software, Standard Water Table, Instruction Manual


Products specifications
Input VoltageSingle Phase, 110/220V
Power Frequency50/60Hz
Display7 Inches
Effective Area1300x2500mm
Running Speed0-15000mm/min
Cutting Speed0-6000mm/min
Cutting Thickness0.3-20mm
Cutting ModePlasma cutting system
THCAir Pressure Height Control, Arc Voltage Height Control
Drive ModeDual drive, Smart servo motor
SoftwareItaly Libellula Wizard 3
Table optionWater Table (15mm Thickness), Water Table (30mm Thickness), Air (Suction) Table (30mm Thickness)

Product Videos

Frequently Asked Questions

What sort of material can I cut with this machine?

How thick can I cut with the Strata Advancecut125?

How much weight can the plasma table carry?

How long do the tips last?

How do I increase the life of my consumables ?

Will I need three phase power?

What sort of back up can I expect?

How long will it take me to set this up?

What sort of learning is involved before I can start cutting?

Can I stop and restart the machine if something goes wrong?

Can I see where the cut is going prior to starting?

Customer Reviews


Filter Results

Do you own this product?

Write a review and help others discover the best products available online today.

Sort By :
Displaying 1-1 of 1 reviews
Arcbro Stinger 4800 Review
I purchased an Arcbro Stinger 4800 CNC from Proline Industrial, and we matched it with the Strata Advance Cut 125 plasma.

Prolines customer care and service was brilliant. Being a larger installation there was a few teething issues which they were very helpful with, was up and running pretty quick smart! It was a steep learning curve learning to operate the machine and software, but to be honest it was all easier then I thought it would be.

No regrets with buying this bit of gear, has worked faultlessly now for almost a year, cutting 3mm to 20mm thick mild steel plate. We design, build and sell agricultural and machinery attachments, the Arcbro has revolutionised what we can make and cut costs to an unpresented low.

Love the gear, love the customer service! *****5 STAR*****

Shane Murray
Orange Hitches NZ Limited
Shane Murray
1 out of 1 has found this review helpful
Did you find it helpful? 👍 👎
