    ATP160Weldtech Multiprocess TIG/MMA/CUT Inverter

    $895.00 excl GST
    $1,029.25 Incl GST

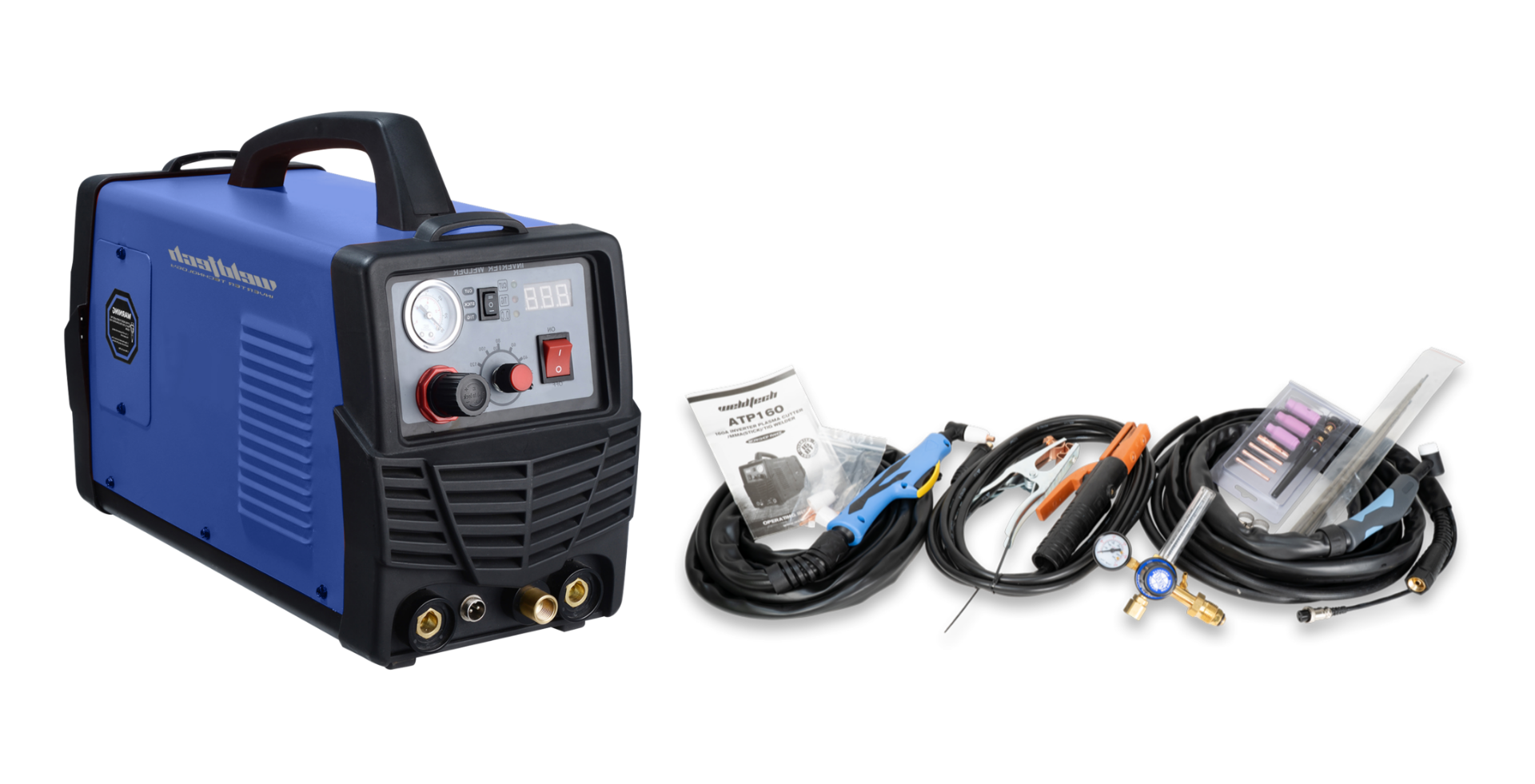

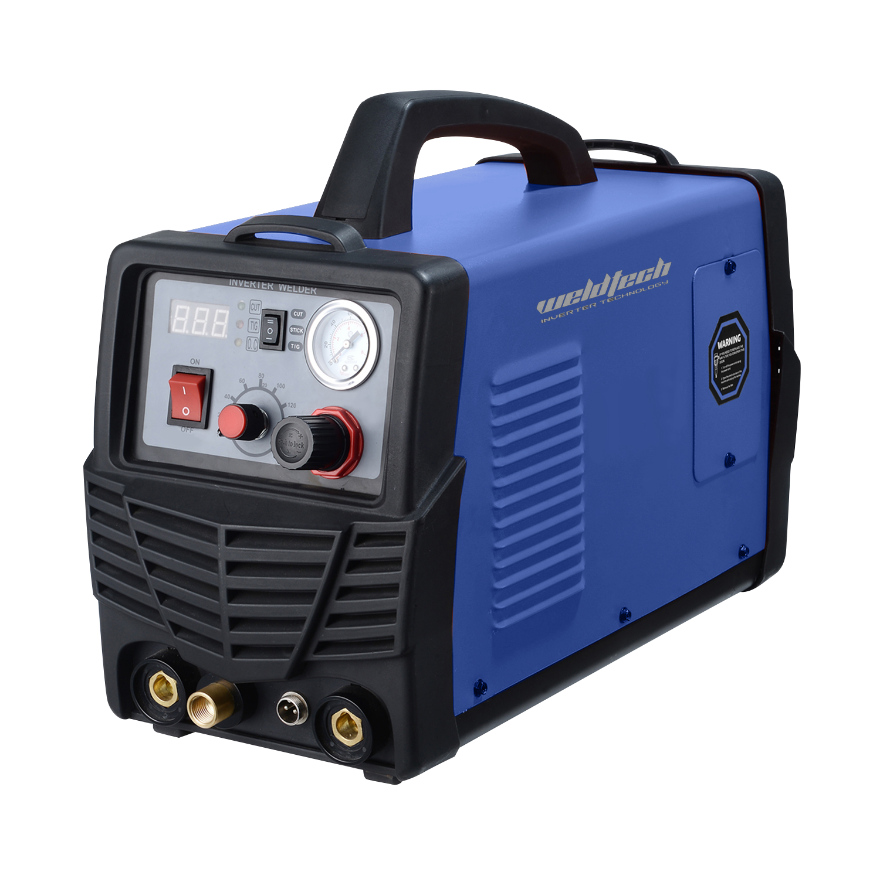

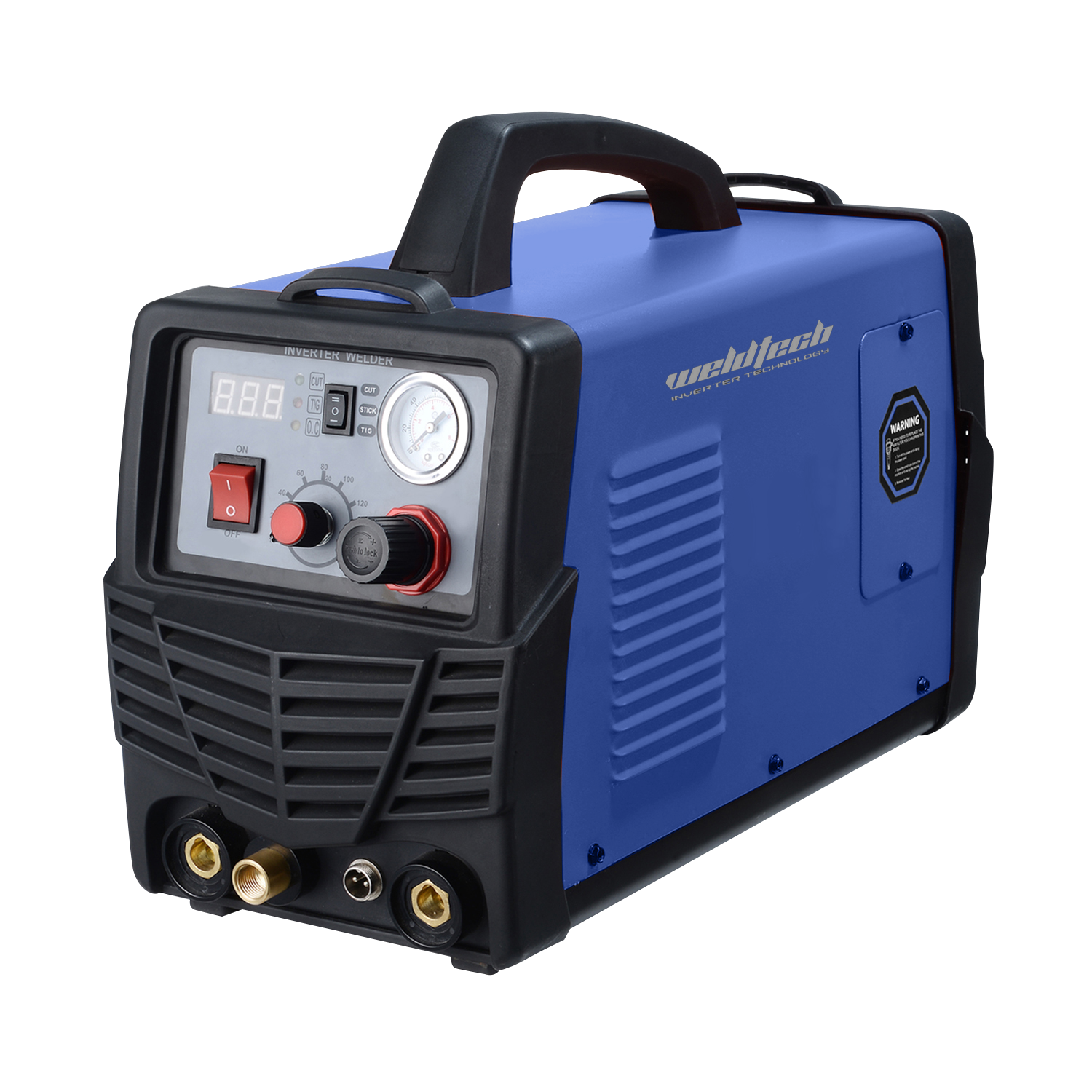

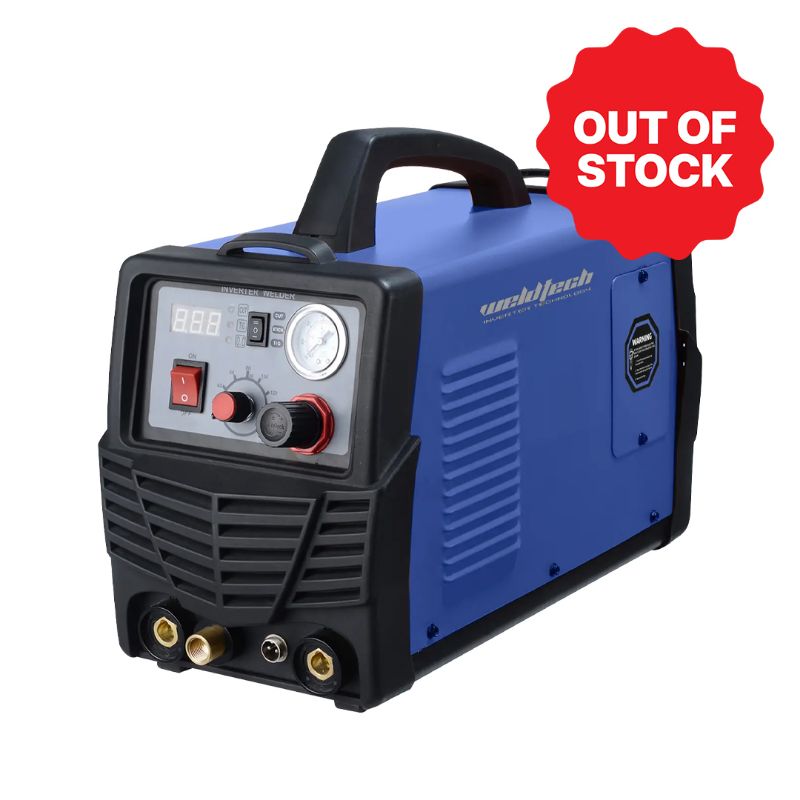

    ATP160 Weldtech Multiprocess TIG/MMA/CUT Inverter
    SKU: ATP160
    Please give us a brief description of your intended application (we may have a better solution.)

    The WELDTECH ATP160 is the perfect multi-process welder for MMA/TIG and plasma cutting tasks around the workshop!

    Powerful - 160A TIG. 140A MMA. 30A plasma output current - Welds up to 12mm - Cuts up to 8mm
    Portable - At 18kg this machine is portable and robust
    Reliable - Cutting edge IGBT Inverter Technology

    • Perfect choice for projects around the home, small workshop, and auto-repair tasks
    • Combination 3-in-1 for ultimate convenience
    • Advanced IGBT technology, synergic controlled, very easy, precise and simple operation.
    • Featured wave-form control system: perfect wave from of volts and amps during short circuits and Arc burning cycles.
    • Automatic input voltage fluctuation controller, over-voltage protection, under voltage protection, over current protection, overload protection
    • Automatic temperature control, fan on demand function.
    • Generator optimised
    • 1 year warranty, extends to 18 months if registered
    Products specifications
    Power Input230V AC 10A 50/60Hz
    Nominal DC Open Circuit Voltage (OCV)58V
    Tig Output Current10A-160A
    TIG Duty Cycle160A@50%, 112A@100%
    Plasma Duty Circle30A@40%, 20A@100%
    Plasma Output Current10A-30A
    Plasma Production Cut Capacity Carbon Steel8mm
    Insulation ClassIP21
    Weight18kg
    Dimention220x465x330mm
    Power Efficiency0.85
    Power Factor0.93
    MMA Current Output10A-140A
    MMA Duty Cycle140A@25%, 70A@100%
    MMA Rod Size1.6-3.2mm
    Plasma Cut Capacity12mm
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The WELDTECH ATP160 is the perfect multi-process welder for MMA/TIG and plasma cutting tasks around the workshop!

    Powerful - 160A TIG. 140A MMA. 30A plasma output current - Welds up to 12mm - Cuts up to 8mm
    Portable - At 18kg this machine is portable and robust
    Reliable - Cutting edge IGBT Inverter Technology

    • Perfect choice for projects around the home, small workshop, and auto-repair tasks
    • Combination 3-in-1 for ultimate convenience
    • Advanced IGBT technology, synergic controlled, very easy, precise and simple operation.
    • Featured wave-form control system: perfect wave from of volts and amps during short circuits and Arc burning cycles.
    • Automatic input voltage fluctuation controller, over-voltage protection, under voltage protection, over current protection, overload protection
    • Automatic temperature control, fan on demand function.
    • Generator optimised
    • 1 year warranty, extends to 18 months if registered
    Products specifications
    Power Input230V AC 10A 50/60Hz
    Nominal DC Open Circuit Voltage (OCV)58V
    Tig Output Current10A-160A
    TIG Duty Cycle160A@50%, 112A@100%
    Plasma Duty Circle30A@40%, 20A@100%
    Plasma Output Current10A-30A
    Plasma Production Cut Capacity Carbon Steel8mm
    Insulation ClassIP21
    Weight18kg
    Dimention220x465x330mm
    Power Efficiency0.85
    Power Factor0.93
    MMA Current Output10A-140A
    MMA Duty Cycle140A@25%, 70A@100%
    MMA Rod Size1.6-3.2mm
    Plasma Cut Capacity12mm
