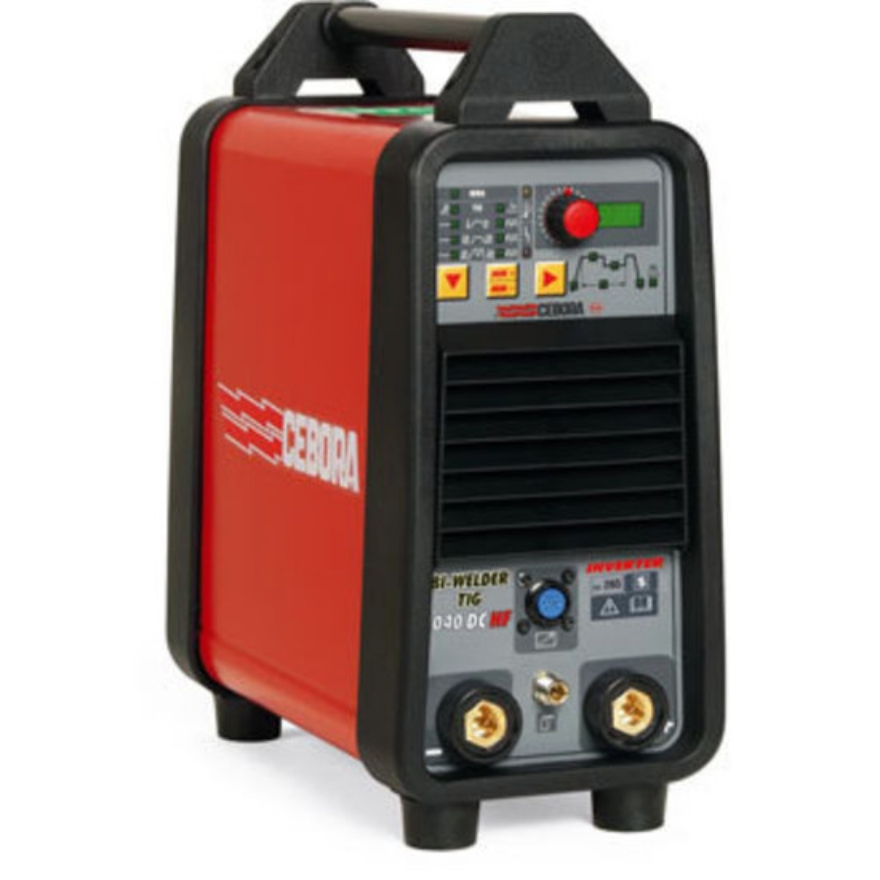

CEBORA BI-WELDER TIG 2040 DC HF

Brand: Cebora
SKU: 201503
8026500 - Cebora Tig 2040 DC-HF Bi Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

BI-WELDER TIG 2040 DC-HF is a single-phase inverter power source for TIG and MMA-SMAW use, not including AWS6010 cellu-losic electrodes, designed for maintenance work and small production batches. The machine may work with pulsed arc, for use on thin workpieces where heat transfer must be minimal and is set up for remote control using the foot control (art. 193), remote control (art. 187), or up-down com-mand on the torch. The following gases may be used for protection: argon, argon/helium, hydrogen argon. In TIG mode, the arc is started either in high frequency or by contact with the Cebora lift sys-tem. It is also possible to save up to 9 welding programs in memory. The compliance with EN 61000-3-12 brings sub-stantial energy saving and a wide supply voltage toler-ance (+15% / -20%). The power source can be powered by motor genera-tors of adequate power (Min. 6 KVA).

Specifications

Products specifications
Input Power4,7 KVA 40% 3,2 KVA 60% 2,7 KVA 100%
Fuse rating (slow blow)16 A
Current Draw5A ÷ 200A
Duty Cycle200A 40% 160A 60% 140A 100%
Protection classIP 23 S
Weight12,9 Kg
Dimension(L x W x H)176x450x402mm

BI-WELDER TIG 2040 DC-HF is a single-phase inverter power source for TIG and MMA-SMAW use, not including AWS6010 cellu-losic electrodes, designed for maintenance work and small production batches. The machine may work with pulsed arc, for use on thin workpieces where heat transfer must be minimal and is set up for remote control using the foot control (art. 193), remote control (art. 187), or up-down com-mand on the torch. The following gases may be used for protection: argon, argon/helium, hydrogen argon. In TIG mode, the arc is started either in high frequency or by contact with the Cebora lift sys-tem. It is also possible to save up to 9 welding programs in memory. The compliance with EN 61000-3-12 brings sub-stantial energy saving and a wide supply voltage toler-ance (+15% / -20%). The power source can be powered by motor genera-tors of adequate power (Min. 6 KVA).

Products specifications
Input Power4,7 KVA 40% 3,2 KVA 60% 2,7 KVA 100%
Fuse rating (slow blow)16 A
Current Draw5A ÷ 200A
Duty Cycle200A 40% 160A 60% 140A 100%
Protection classIP 23 S
Weight12,9 Kg
Dimension(L x W x H)176x450x402mm
