    CEBORA PLASMA PROF ACC 163

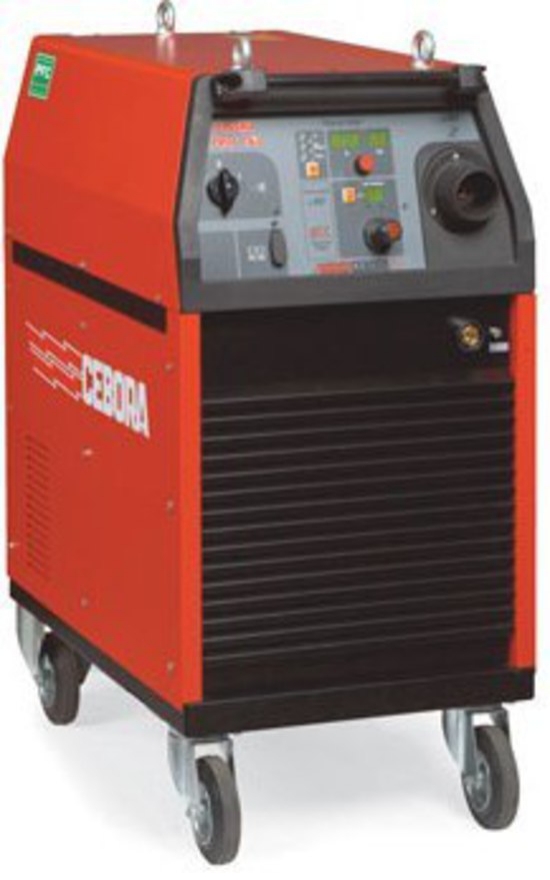

    CEBORA PLASMA PROF ACC 163
    SKU: 1406
    Please give us a brief description of your intended application (we may have a better solution.)

    The new PLASMA PROF 163 ACC three-phase "chopper" power source, with a power of 160A at 40%, represents the top model in the Cebora metal plasma cutting power sources and is the evolution of the former models Prof 150 and Prof 152 in comparison to which, thanks to the new CP161 torch, it can cut higher thicknesses (the recommended thickness, for the best cutting quality and productivity, is 40 mm; the maximum thickness is 45 mm and the severance thickness is 50 mm), has a higher piercing thickness (15 mm) and does not need water cooling.

    The high continuous (95A at 100%) duty cycle and the cutting speed make the PLASMA PROF 163 ACC ideal for automatic production applications, as well as for manual productions of average size.

    Products specifications
    Three phase input220/230-400V 415/440V 50/60 Hz
    Fuse rating (slow blow)220/230V 80A 400/415/440V 40V
    Input Power27 kVA 40% 22 kVA 60% 16 kVA 100%
    MMA Duty Cycle @ 25%160A 40% 120A 60% 95A 100%
    Stepless regulationELECTRONIC
    Protection classIP 21S
    Weight140kg
    Dimensions465x720x965mm

    The new PLASMA PROF 163 ACC three-phase "chopper" power source, with a power of 160A at 40%, represents the top model in the Cebora metal plasma cutting power sources and is the evolution of the former models Prof 150 and Prof 152 in comparison to which, thanks to the new CP161 torch, it can cut higher thicknesses (the recommended thickness, for the best cutting quality and productivity, is 40 mm; the maximum thickness is 45 mm and the severance thickness is 50 mm), has a higher piercing thickness (15 mm) and does not need water cooling.

    The high continuous (95A at 100%) duty cycle and the cutting speed make the PLASMA PROF 163 ACC ideal for automatic production applications, as well as for manual productions of average size.

    Products specifications
    Three phase input220/230-400V 415/440V 50/60 Hz
    Fuse rating (slow blow)220/230V 80A 400/415/440V 40V
    Input Power27 kVA 40% 22 kVA 60% 16 kVA 100%
    MMA Duty Cycle @ 25%160A 40% 120A 60% 95A 100%
    Stepless regulationELECTRONIC
    Protection classIP 21S
    Weight140kg
    Dimensions465x720x965mm
