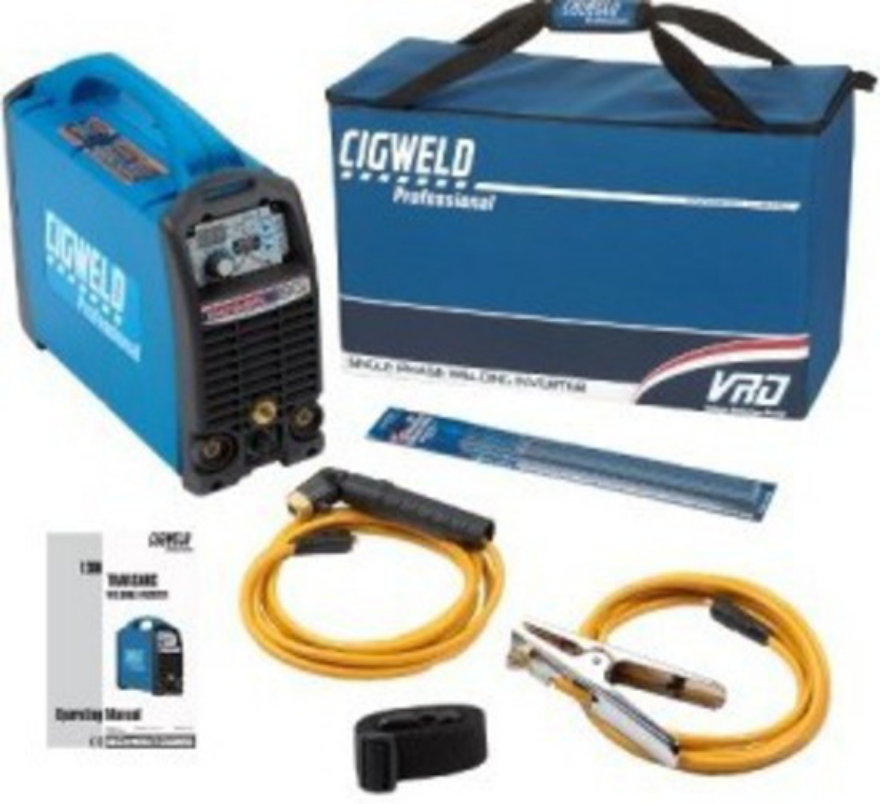

CIGWELD TRANSARC 130

Brand: Cigweld
SKU: 1423
CIGWELD TRANSARC 130
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Loaded with safety features, our new 130 amp single-phase inverters are more efficient and easier to control than ever. VRD ensures voltage at the Stick before you start is just 8V DC, integrated Fail To Safe will shut the unit down if voltage exceeds 35V DC whilst not welding and insulated plastic housing with an IP23S rating ensures your safety when working in confined spaces or outdoors.

At a shade over 7kg, you can throw one of these over your shoulder or in the back of the ute and get straight on with the job.
With Stick (MMAW) and Lift TIG (GTAW), we’ve designed the range to meet the demands of a wide range of industries – from farming to construction, general maintenance, building and on site repairs.
We’ve also got a model specific to mining too. These robust units offer extra protection without compromising on performance.

Specifications

Products specifications
ProcessesStick (MMAW), Lift TIG (GTAW)
Minimum generator power4.8kW (6.2kVA at 0.8 PF)
Open circuit voltage8V DC (VRD On), 66V DC (VRD Off)
Duty CycleStick (MMAW): 130A@25%, 60A@100% TIG (GTAW): 130A@25%, 60A@100%
Dimension(H X W X D)306 H x 121 W x 376 D mm
Protection classIP23S
Weight7.2kg

Loaded with safety features, our new 130 amp single-phase inverters are more efficient and easier to control than ever. VRD ensures voltage at the Stick before you start is just 8V DC, integrated Fail To Safe will shut the unit down if voltage exceeds 35V DC whilst not welding and insulated plastic housing with an IP23S rating ensures your safety when working in confined spaces or outdoors.

At a shade over 7kg, you can throw one of these over your shoulder or in the back of the ute and get straight on with the job.
With Stick (MMAW) and Lift TIG (GTAW), we’ve designed the range to meet the demands of a wide range of industries – from farming to construction, general maintenance, building and on site repairs.
We’ve also got a model specific to mining too. These robust units offer extra protection without compromising on performance.

Products specifications
ProcessesStick (MMAW), Lift TIG (GTAW)
Minimum generator power4.8kW (6.2kVA at 0.8 PF)
Open circuit voltage8V DC (VRD On), 66V DC (VRD Off)
Duty CycleStick (MMAW): 130A@25%, 60A@100% TIG (GTAW): 130A@25%, 60A@100%
Dimension(H X W X D)306 H x 121 W x 376 D mm
Protection classIP23S
Weight7.2kg
