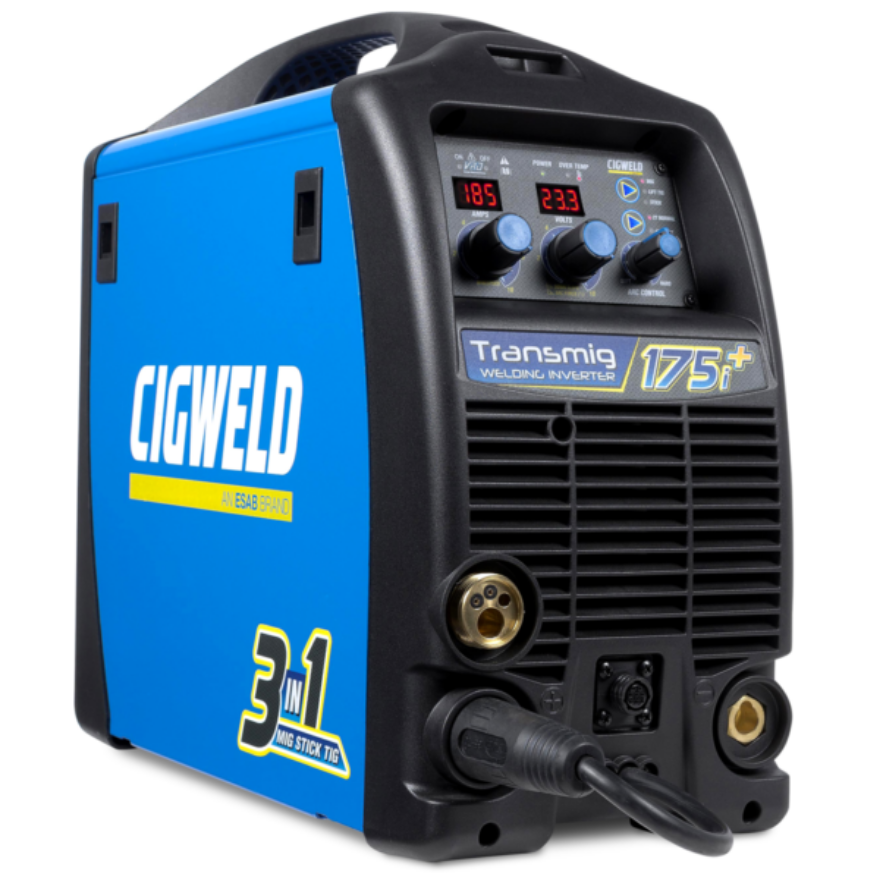

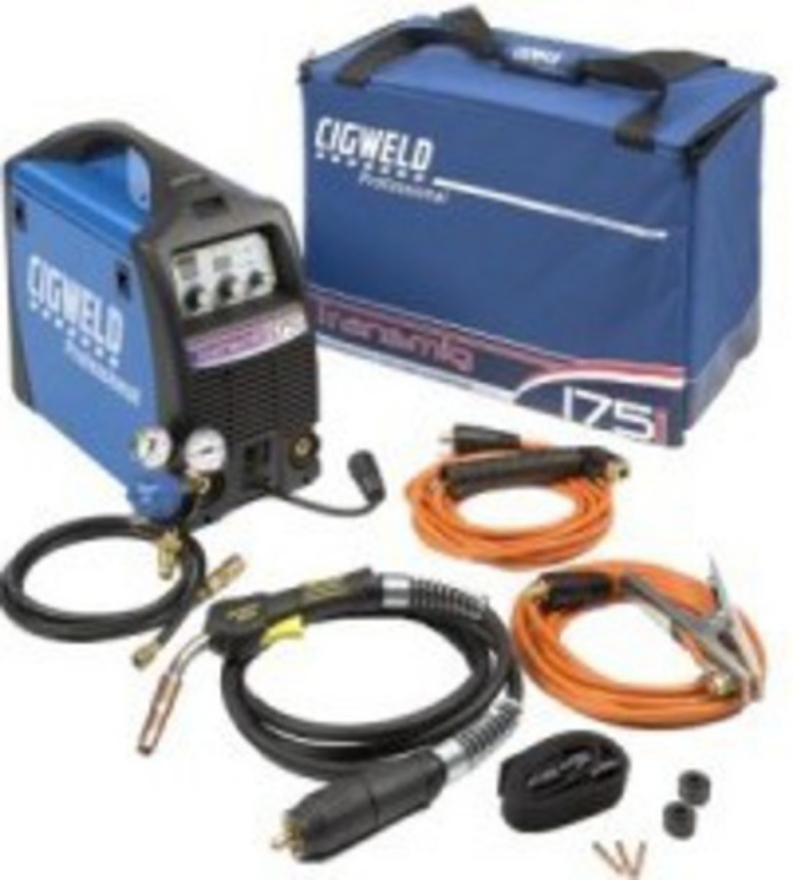

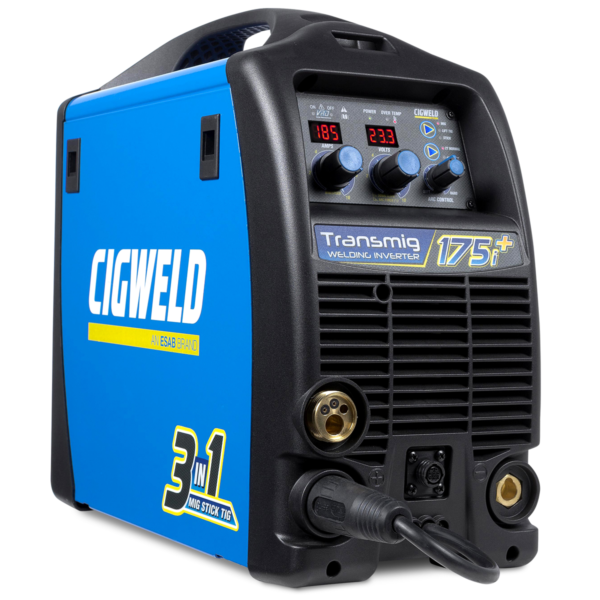

Cigweld Transmig 175i + Inverter Multi Process Welder Package

Brand: Cigweld
SKU: 202760
The TRANSMIG 175i is a self contained single phase 175amp multi-process inverter welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Cigweld Transmig 175i + Multi Process Welder Package is capable of performing GMAW/FCAW (Mig), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in stick mode only), digital voltage and amperage meters, and a host of other features in order to satisfy the broad operating needs of the modern welding professional.

Key Features:

- 185A Inverter welder

- Digital amperage and voltage meters

- Lightweight and portable

- Integrated wire feed unit

- Arc control for controlling the intensity of the arc

- Adjustable burnback control for controlling Mig wire stick out

- Euro Mig torch connection

- 3 year warranty

Specifications

Products specifications
Current range10 - 185A MIG
Dimension410H x 210W x 450D mm
Duty Cycle175A @ 25%, 17.0V (40C, 10mins)
Generator Requirement9.5 kVA (at 0.8 Power Factor) 7.8 kW (at 1.0 Power Factor)
Supply Voltage240V +/- 15%, (15 Amp Plug)
Weight23kg
Supply Plug Lead15A

The Cigweld Transmig 175i + Multi Process Welder Package is capable of performing GMAW/FCAW (Mig), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in stick mode only), digital voltage and amperage meters, and a host of other features in order to satisfy the broad operating needs of the modern welding professional.

Key Features:

- 185A Inverter welder

- Digital amperage and voltage meters

- Lightweight and portable

- Integrated wire feed unit

- Arc control for controlling the intensity of the arc

- Adjustable burnback control for controlling Mig wire stick out

- Euro Mig torch connection

- 3 year warranty

Products specifications
Current range10 - 185A MIG
Dimension410H x 210W x 450D mm
Duty Cycle175A @ 25%, 17.0V (40C, 10mins)
Generator Requirement9.5 kVA (at 0.8 Power Factor) 7.8 kW (at 1.0 Power Factor)
Supply Voltage240V +/- 15%, (15 Amp Plug)
Weight23kg
Supply Plug Lead15A
