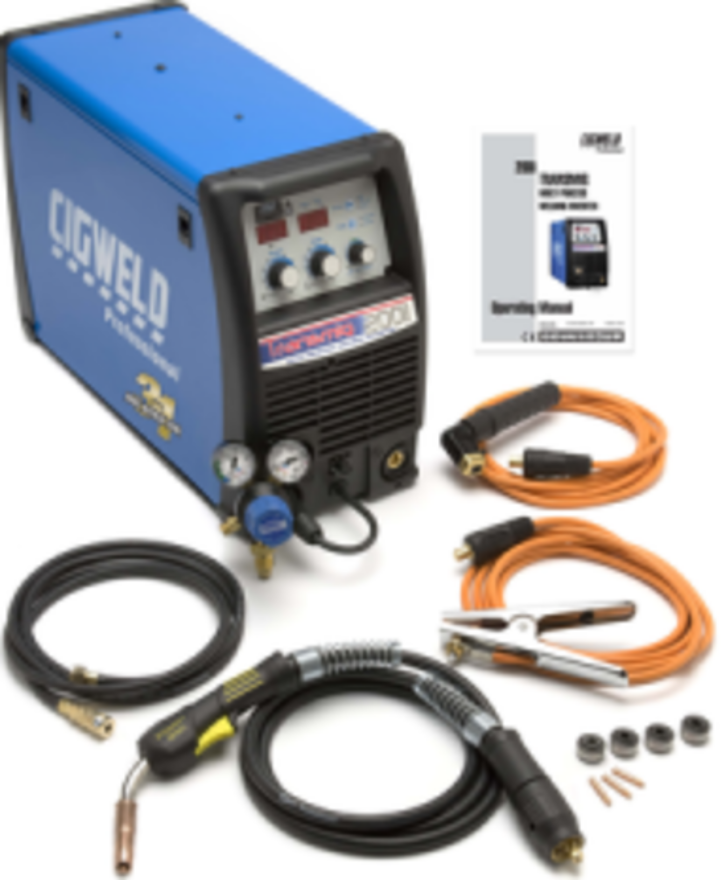

Cigweld Transmig 200i Mig Welder

Brand: Cigweld
SKU: 1435
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Cigweld Transmig 200i Mig Welder is a self contained single phase 200amp multi-process inverter welderThe 200i is capable of performing GMAW/FCAW (Mig), MMAW (Stick) and GTAW (Lift Tig) welding processes. The unit is equipped with an integrated wire feed unit,voltage reduction device (VRD applicable in stick mode only), PFC (power factor correction), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Specifications

Products specifications
ProcessesMIG (GMAW/FCAW), Stick (MMAW), Lift TIG (GTAW)
Supply Voltage240 volt AC +/-15%, 50/60Hz (15A plug)
Current range10 – 210 amps (MIG mode)
Duty CycleMIG (GMAW/FCAW): 210A@20%, 24.5V (40˚C, 10mins) Stick (MMAW): 200A@25%, 28V (40˚C, 10mins) TIG (GTAW): 200A@25%, 18V (40˚C, 10mins)
Recommended Generator7 kVA for max. welding current
Dimensions435mm(H) x 266mm(W) x 617mm(D) Plant: 483mm(H) x 378mm(W) x 705mm(D)
Weight26kg

The Cigweld Transmig 200i Mig Welder is a self contained single phase 200amp multi-process inverter welderThe 200i is capable of performing GMAW/FCAW (Mig), MMAW (Stick) and GTAW (Lift Tig) welding processes. The unit is equipped with an integrated wire feed unit,voltage reduction device (VRD applicable in stick mode only), PFC (power factor correction), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Products specifications
ProcessesMIG (GMAW/FCAW), Stick (MMAW), Lift TIG (GTAW)
Supply Voltage240 volt AC +/-15%, 50/60Hz (15A plug)
Current range10 – 210 amps (MIG mode)
Duty CycleMIG (GMAW/FCAW): 210A@20%, 24.5V (40˚C, 10mins) Stick (MMAW): 200A@25%, 28V (40˚C, 10mins) TIG (GTAW): 200A@25%, 18V (40˚C, 10mins)
Recommended Generator7 kVA for max. welding current
Dimensions435mm(H) x 266mm(W) x 617mm(D) Plant: 483mm(H) x 378mm(W) x 705mm(D)
Weight26kg
