    CIGWELD TRANSTIG 220 AC/DC

    CIGWELD TRANSTIG 220 AC/DC Cigweld Transtig 220 AC/DC
    SKU: 2000
    Please give us a brief description of your intended application (we may have a better solution.)

    CIGWELD TRANSTIG 220 AC/DC

    Cigweld Transtig 220 AC/DC
    Transtig 220

    - AC/DC TIG (GTAW), HF TIG (GTAW) & Stick (MMAW) Inverter Power Source
    - Pulse Welding, Spot Welding, 2T (Normal) and 4T (Latch) capabilities whilst in TIG Mode
    - Standards compliant Voltage Reduction Device (RVD)
    - Fail to Safe Shutdown if VRD malfunctions
    - Fully compliant to AS60974.1-2006
    - Enclosure rated to IP23S
    - User friendly control panel with digital voltage and amperage meters
    Two Seperate Options!

    Option 1:

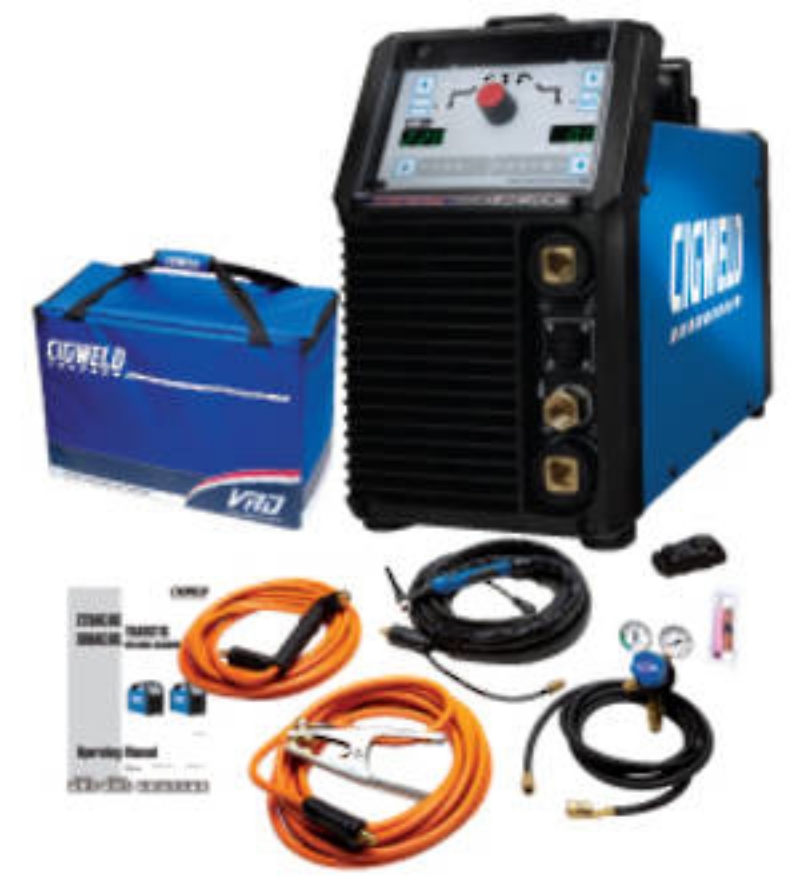

    Transtig 220 AC/DC Plant - W1007220

    The Transtig 220 AC/DC Plant comes with everything you need to get up and running on lighter aluminium fabrication jobs, including the power source, regulator, TIG Torch, electrode holder and leads. The shoulder strap and bag allows portability onsite so you can setup in a single trip.
    Comes with:
    • Transtig 220AC/DC Power Source
    • Comet Professional Argon Regulator/Flowmeter
    • TIG Torch 26F with Flex Head, Trigger Switch and 8 Pin Remote Control Connection
    • TIG Torch Accessories Kit
    • Electrode Holder with 5m Lead
    • Work Clamp with 5m Lead
    • Shielding Gas HOse Assembly
    • Shoulder Strap
    • Product Bag
    • Operating Manual

    Option 2

    ranstig 220 AC/Dc Power Source - W1007221
    The Transtig 220 AC/DC gives you high quality aluminium welding from a single phase power source. Light enough to swing over your shoulder but more than powerful enough for balustrade work, air conditioning piping or sheet metal fabrication, its a machine that can be relied upon for multiple applications. The Transtig 220AC/DC is not only energy efficient but will also run off a small generator too.
    Comes with:

    • Transtig 220AC/DC Power Source
    • Shielding Gas Hose Assembly
    • Shoulder Strap
    • Operating Manual
    Products specifications
    ProcessesAC/DC Lift TIG (GTAW), HF TIG (GTAW) & Stick (MMAW)
    Supply Voltage240V +/- 15%
    Nominal Supply Frequency50/60 Hz
    Factory fitting plug rating15A
    Number of Phases1
    Effective input current lleft14.7A
    TIG(GTAW)3-220A
    Stick(MMAW)) Welding Output, 400C, 10 min170A @40%,26.8V 140A @60%,25.6V 120A @100%,24.8V
    Tig welding output(, 400C, 10 min)220A @40%,18.8V 180A @60%,17.2V 160A @100%,16.4V
    Dimension326x185x483
    Weight13.4
    Protection classIP23S
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    CIGWELD TRANSTIG 220 AC/DC

    Cigweld Transtig 220 AC/DC
    Transtig 220

    - AC/DC TIG (GTAW), HF TIG (GTAW) & Stick (MMAW) Inverter Power Source
    - Pulse Welding, Spot Welding, 2T (Normal) and 4T (Latch) capabilities whilst in TIG Mode
    - Standards compliant Voltage Reduction Device (RVD)
    - Fail to Safe Shutdown if VRD malfunctions
    - Fully compliant to AS60974.1-2006
    - Enclosure rated to IP23S
    - User friendly control panel with digital voltage and amperage meters
    Two Seperate Options!

    Option 1:
    Transtig 220 AC/DC Plant - W1007220

    The Transtig 220 AC/DC Plant comes with everything you need to get up and running on lighter aluminium fabrication jobs, including the power source, regulator, TIG Torch, electrode holder and leads. The shoulder strap and bag allows portability onsite so you can setup in a single trip.
    Comes with:
    • Transtig 220AC/DC Power Source
    • Comet Professional Argon Regulator/Flowmeter
    • TIG Torch 26F with Flex Head, Trigger Switch and 8 Pin Remote Control Connection
    • TIG Torch Accessories Kit
    • Electrode Holder with 5m Lead
    • Work Clamp with 5m Lead
    • Shielding Gas HOse Assembly
    • Shoulder Strap
    • Product Bag
    • Operating Manual

    Option 2

    ranstig 220 AC/Dc Power Source - W1007221
    The Transtig 220 AC/DC gives you high quality aluminium welding from a single phase power source. Light enough to swing over your shoulder but more than powerful enough for balustrade work, air conditioning piping or sheet metal fabrication, its a machine that can be relied upon for multiple applications. The Transtig 220AC/DC is not only energy efficient but will also run off a small generator too.
    Comes with:

    • Transtig 220AC/DC Power Source
    • Shielding Gas Hose Assembly
    • Shoulder Strap
    • Operating Manual
    Products specifications
    ProcessesAC/DC Lift TIG (GTAW), HF TIG (GTAW) & Stick (MMAW)
    Supply Voltage240V +/- 15%
    Nominal Supply Frequency50/60 Hz
    Factory fitting plug rating15A
    Number of Phases1
    Effective input current lleft14.7A
    TIG(GTAW)3-220A
    Stick(MMAW)) Welding Output, 400C, 10 min170A @40%,26.8V 140A @60%,25.6V 120A @100%,24.8V
    Tig welding output(, 400C, 10 min)220A @40%,18.8V 180A @60%,17.2V 160A @100%,16.4V
    Dimension326x185x483
    Weight13.4
    Protection classIP23S
