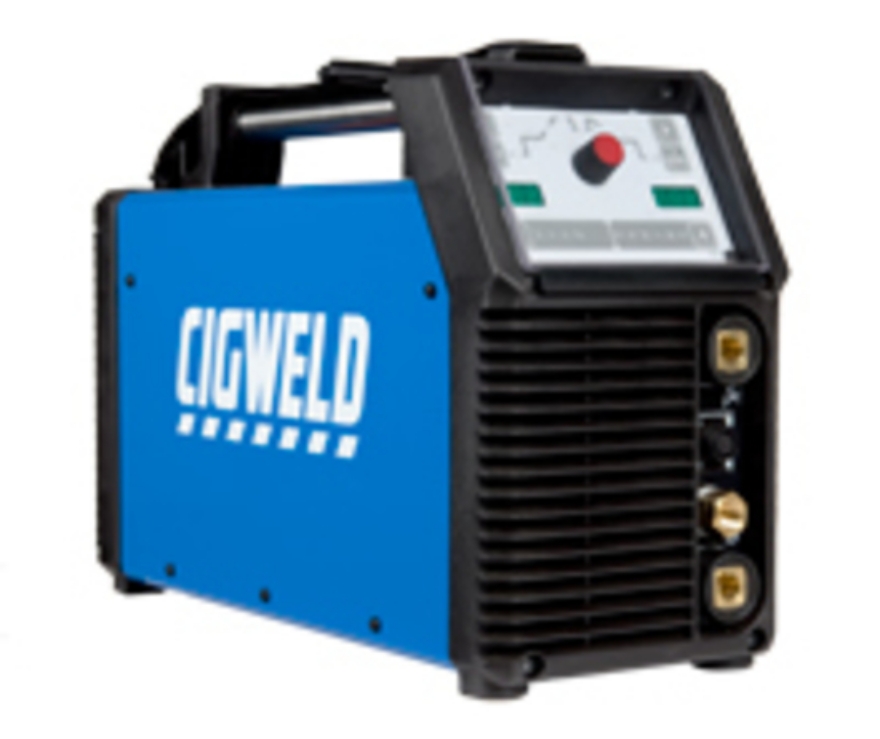

CIGWELD TRANSTIG 300 AC/DC

Brand: Cigweld
SKU: 2001
CIGWELD TRANSTIG 300 AC/DC Cigweld Transtig 300 AC/DC
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

CIGWELD TRANSTIG 300 AC/DC

Cigweld Transtig 300 AC/DC
Transtig 300

- AC/DC TIG (GTAW), HF TIG (GTAW) & Stick (MMAW) Inverter Power Source
- Pulse Welding, Spot Welding, 2T (Normal) and 4T (Latch) capabilities whilst in TIG Mode
- Standards compliant Voltage Reduction Device (RVD)
- Fail to Safe Shutdown if VRD malfunctions
- Fully compliant to AS60974.1-2006
- Enclosure rated to IP23S
- User friendly control panel with digital voltage and amperage meters
- 3 Year Limited Warranty
Transtig 300 Power Source - W1007301
With more power and a better duty cycle, the Transtig 300 AC/DC is the workhorse of the Transtig range. There's pretty much no limit to what you can weld with this machine, making it ideal for boat yards, cylinder head repair shops and any other environments where heavy duty aluminium welding is needed.
Comes with:
  • Transtig 300 AC/DC Inverter Power Source
  • Shielding Gas Hose Assembly
  • Shoulder Strap
  • Operating Manual

Specifications

Products specifications
ProcessesAC/DC Lift TIG (GTAW), HF TIG (GTAW) & Stick (MMAW)
Supply Voltage415V +/- 15%
Nominal Supply Frequency50/60 Hz
Factory fitting plug ratingNot applicable
Number of Phases3
Effective input current lleft11.6A
TIG(GTAW)5-300A
Stick(MMAW)) Welding Output, 400C, 10 min200A@60%28.0V 170A@100%,26.8A
Tig welding output(, 400C, 10 min)300A @30%,22.0V 220A@60%, 18.8V 180A @100%,17.2V
Dimension326x185x483
Weight16.3
Protection classIP23S
Factory fitting plug ratingNot applicable
TIG(GTAW)5-300A
