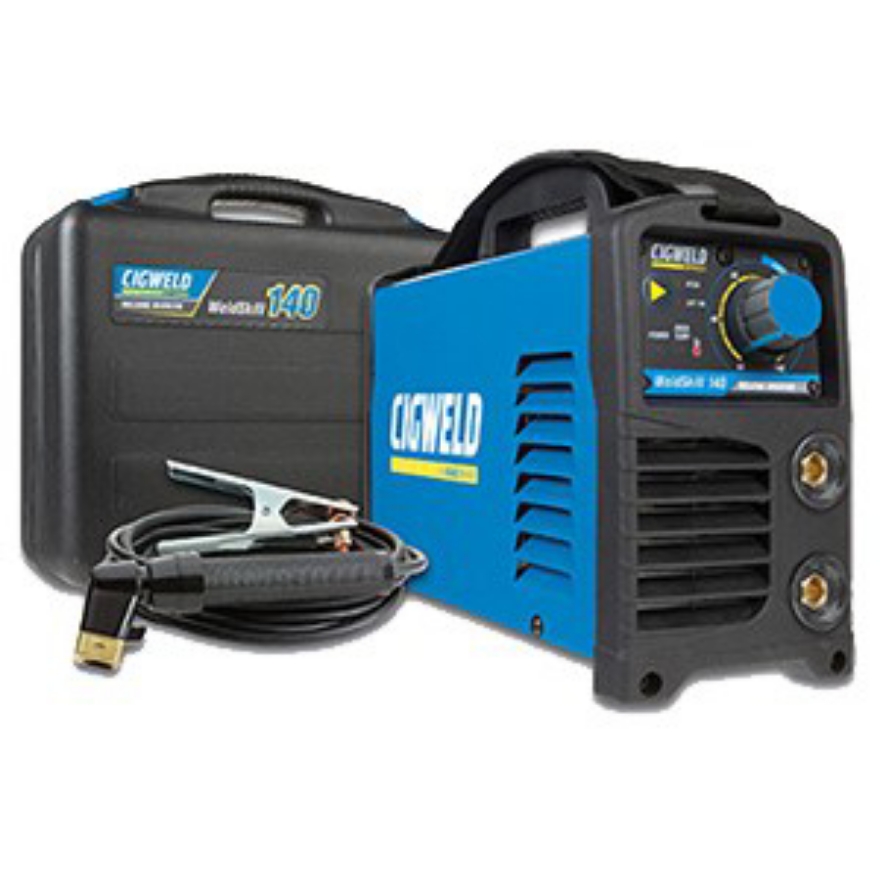

Cigweld Weldskill Micro Arc 140

Brand: Cigweld
SKU: 33968
Single Phase Welding Inverter With Lift Tig/Stick Welding. C/W:3m Arc Lead Set, Shoulder Strap.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Cigweld Weldskill MircoArc 140 is a single-phase small and compact portable arc welder perfect for any home handyman, farmer, tradesman, or worksite maintenance. It has a very simple, user-friendly control panel with easy-to-see LED indicators. Just simply plug into any standard 10Amp powerpoint and start welding right away.

Kit Includes:

  • Twist lock electrode holder
  • Rugged case with carrying handle and carry strap
  • 4m long electrode holder and work leads

Specifications:

Dimensions
H200mm x W120mm x D315mm

Weight
4.7kg

Cooling
Fan Cooled

Processes
Lift TIG (GTAW), Stick (MMAW)

Australian Standards
AS 60974.1-2006 / IEC 60974-1

Number of Phases
Single Phase

Supply Voltage
240V AC ± 10%

Nominal Supply Frequency
50/60 Hz

Current Range
10 - 140A

Open Circuit Voltage
80V

Maximum Input Current
26.3 Amps

Generator Requirement
6.0 kW (7.5 kVA @ 0.8 PF)

Duty Cycle
Stick (MMAW): 140 Amps @ 15% Duty Cycle (40C, 10 mins)
TIG (GTAW): 140 Amps @ 35% Duty Cycle (40C, 10 mins)

Protection Class
IP21S

Open Circuit Voltage
75V

Supply Plug Lead
10 Amps

Effective Input Current
10 Amps
