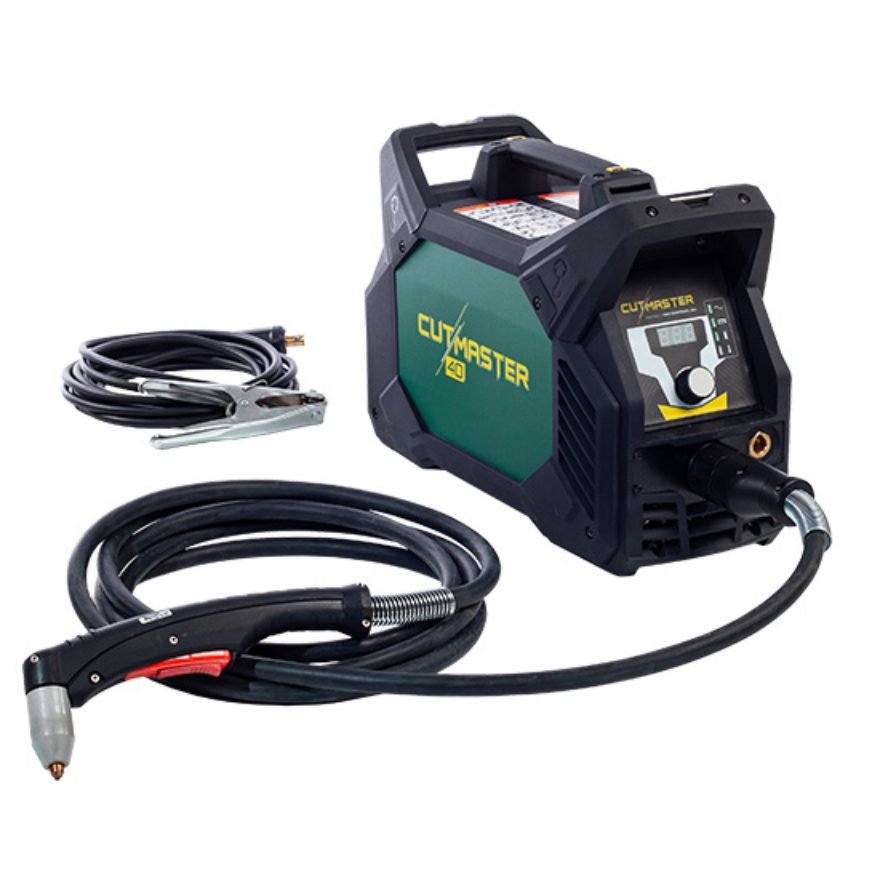

Cigweld Cutmaster 40mm Plasma Cutter

Brand: Cigweld
SKU: 204741
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Cutmaster® 40 with SL60™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 40 with SL60 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application.

Key Features:

- 415V, 3 Phase

- Auto pilot restart

- True guard roll bar

- SL100 6.1m hand cutting torch

- 3 year warranty

Specifications

Products specifications
Pierces1/2 in. (12 mm)
Recommended Cutup to 1/2 in. (up to 12 mm)
Plate Thickness1/32 in. (1 mm)
Recommended Cut Speed300 in./min (7670 m/min)
Height12.6 in. (320 mm)
Length18.1 in. (460 mm)
Width7.9 in. (200 mm)
Amps29 A
Volts208 V
Frequency Hz50/60 Hz
Phase1
VAC110-240 ±10% VAC
Operating Temperature0-50 °C (32-122 °F)
Amp High40 A
Amp Low15 A
Duty Cycle40 %
Output Current AC40 A
Gas Flow170 cfh (80 l/min)
Gas Pressure6.2-8.6 bar (90-125 psi)
Gas RequirementsCompressed Air
Weight10 kg (22 lb)
