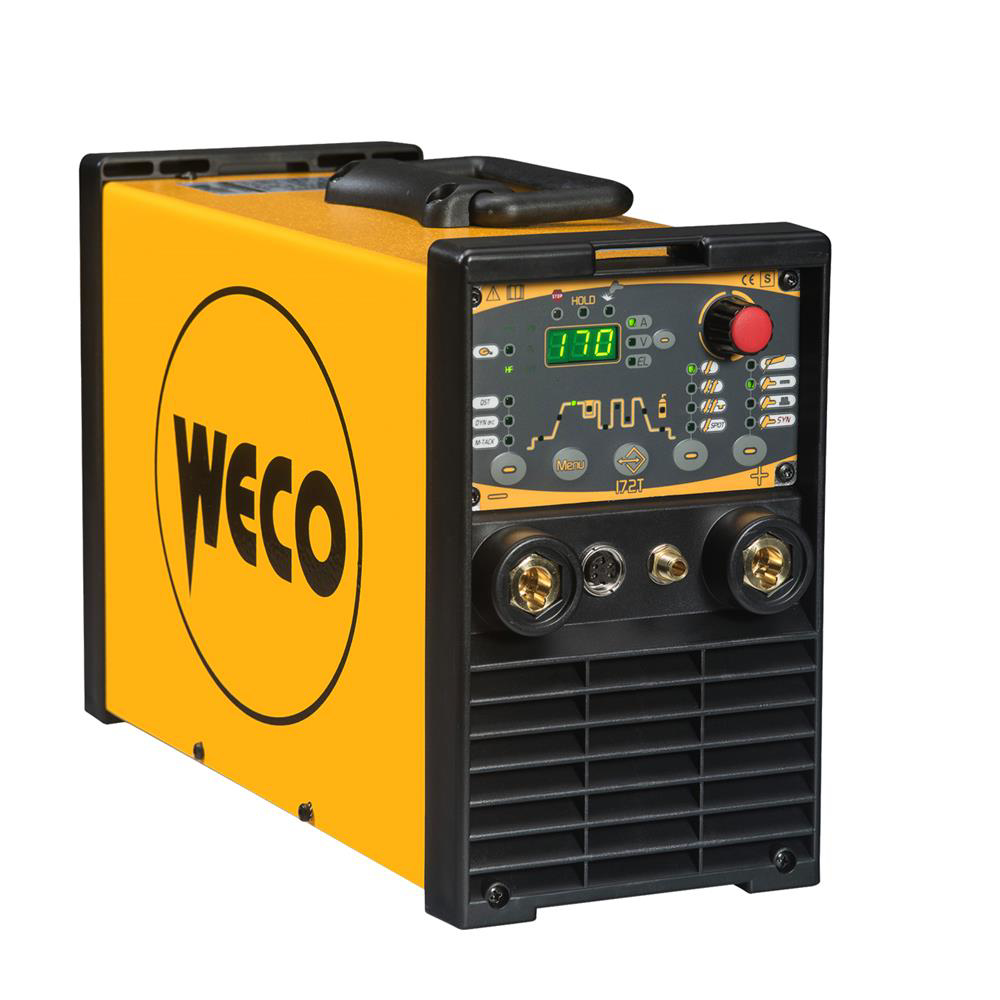

DISCOVERY WECO 172T DC 230VAC

Brand: Weco
SKU: 205253
DISCOVERY WECO 172T DC 230VAC
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Discovery 172 T is a high-tech single-phase inverter welding equipment for DC TIG welding. Discovery 172 T is suitable for high precision construction, petrochemical plants, food industry and more that require high performance.
Weco HF Special Control guarantees 100% eye-catching fast and accurate.
TIG DC welding is optimized thanks to:
TIG PULSE up to 2.5 kHz and TIG PULSE SYN (Synergic)
- Dynamic Arc (DYNarc) guarantees greater penetration, a more stable arc, prevents it from sticking to the part, can be adapted to arc welding conditions just move the torch.
- The Q-Start, which simplifies and accelerates the joining of the sheets in the initial phase of welding.
- The Multi-Tack allows you to control the heat input during welding and reduce the oxidation of the part. You can in some cases Vitare acid treatments after welding.
- The Q-Spot can signal with decreasing ease sheets to a minimal fee and thermal deformation. Allows you to make the electrode at the exact location of the point.
- 50 memory programs
- Adjustable distance: from torch (UP & DOWN, potentiometer), foot pedal or remote control unit
- Cooling unit available

Specifications

Products specifications
Input power voltage1x230Vac+- 15%@ 50-60Hz
welding current16A
I2 TIG-WIG5A-170A
Duty Circle TIC WIG40% @ 170A 60% @ 150A 100%@130A
Weight8.6kg
Dimention400x160x260
PMAX6,1KVA - 4,5KW
IP23S

Discovery 172 T is a high-tech single-phase inverter welding equipment for DC TIG welding. Discovery 172 T is suitable for high precision construction, petrochemical plants, food industry and more that require high performance.
Weco HF Special Control guarantees 100% eye-catching fast and accurate.
TIG DC welding is optimized thanks to:
TIG PULSE up to 2.5 kHz and TIG PULSE SYN (Synergic)
- Dynamic Arc (DYNarc) guarantees greater penetration, a more stable arc, prevents it from sticking to the part, can be adapted to arc welding conditions just move the torch.
- The Q-Start, which simplifies and accelerates the joining of the sheets in the initial phase of welding.
- The Multi-Tack allows you to control the heat input during welding and reduce the oxidation of the part. You can in some cases Vitare acid treatments after welding.
- The Q-Spot can signal with decreasing ease sheets to a minimal fee and thermal deformation. Allows you to make the electrode at the exact location of the point.
- 50 memory programs
- Adjustable distance: from torch (UP & DOWN, potentiometer), foot pedal or remote control unit
- Cooling unit available

Products specifications
Input power voltage1x230Vac+- 15%@ 50-60Hz
welding current16A
I2 TIG-WIG5A-170A
Duty Circle TIC WIG40% @ 170A 60% @ 150A 100%@130A
Weight8.6kg
Dimention400x160x260
PMAX6,1KVA - 4,5KW
IP23S
