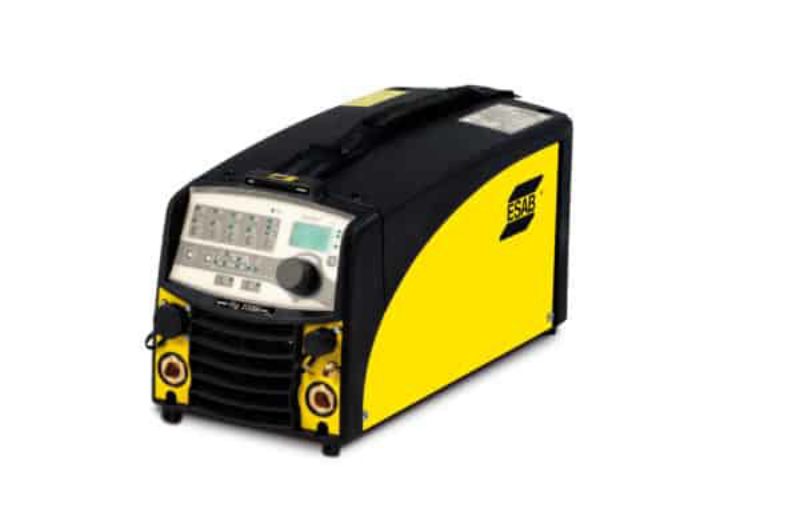

Esab Caddy 2200i DC Pulse Tig

Brand: ESAB
SKU: 203646
Esab Caddy 2200i TA34 DC Tig Welder Including 8M Tig Torch & Arc Lead Set.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Caddy® Tig 2200i provides true MMA capability and features Hot start, arc force setting, Arc Plus II* and additionally, polarity switch.

  • Designed for quality TIG-welding in alloyed, non-alloyed and stainless steel.
  • Easy to use – All welding parameters presented in clear layout.
  • 2-program function – The ability to pre-program and change program during welding.
  • Pulsed TIG welding – Increased control of heat input and the weld pool.
  • Micro Pulse – Minimise heat affected zone especially on thin material.
  • ArcPlus™ II – Better welding characteristics, simplifies your work giving you better weld quality with
    less after treatment.
  • True MMA welding characteristics – Hot start and Arc force setting.
  • Extra long mains cable capability – Gives extra large working radius.

Specifications

Products specifications
Setting RangeTIG AC/DC: 4-220A
Mains Supply230V, 50/60Hz
Fuse (slow)16A
Mains Cable3 x 1.5mm2
Open circuit voltage54-64V
Enclosure ClassIP 23
Dimension407L x 187W x 345H mm
Weight15kg

Caddy® Tig 2200i provides true MMA capability and features Hot start, arc force setting, Arc Plus II* and additionally, polarity switch.

  • Designed for quality TIG-welding in alloyed, non-alloyed and stainless steel.
  • Easy to use – All welding parameters presented in clear layout.
  • 2-program function – The ability to pre-program and change program during welding.
  • Pulsed TIG welding – Increased control of heat input and the weld pool.
  • Micro Pulse – Minimise heat affected zone especially on thin material.
  • ArcPlus™ II – Better welding characteristics, simplifies your work giving you better weld quality with
    less after treatment.
  • True MMA welding characteristics – Hot start and Arc force setting.
  • Extra long mains cable capability – Gives extra large working radius.
Products specifications
Setting RangeTIG AC/DC: 4-220A
Mains Supply230V, 50/60Hz
Fuse (slow)16A
Mains Cable3 x 1.5mm2
Open circuit voltage54-64V
Enclosure ClassIP 23
Dimension407L x 187W x 345H mm
Weight15kg
