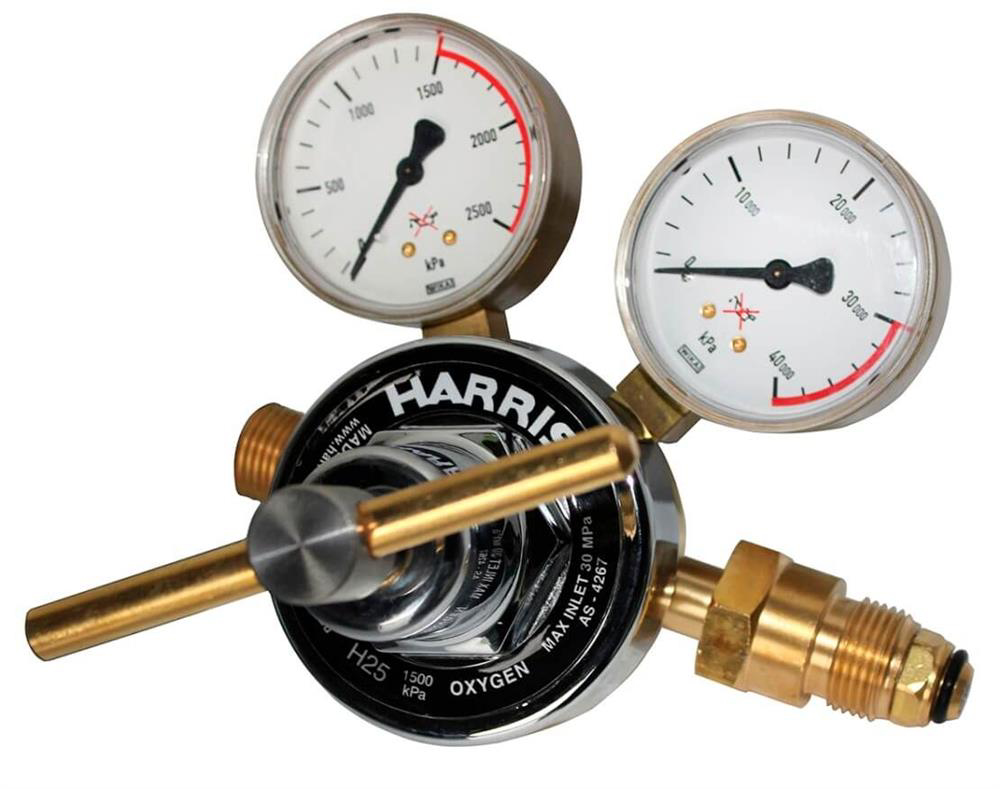

In some applications there is a requirement for high flow,high pressure and high purity. This cylinder regulator offersunparalleled features at exceptional value for money. It suitsapplications which are specifically designed for high flowrequirements for feeding industrial gas pipelines for plasma,and laser cutting systems.For example, supplying Acetylene into a factory via a pipelinestarts with having the right regulator at the manifold. AtHarris, we set out to design and manufacture a regulator forexactly this purpose, which delivers large flow over a varietyof pressures, even when cylinder pressure is low.Features include:- Conforms to EN ISO 2503- Capsule valve, Stainless Steel filter- Stainless Steel diaphragm (not Acetylene)- Maximum inlet 300 bar- Outlet pressure 1.5, 15 and 40 bar- Heavy duty body machined from bar stock- Large G. 1/2” or G. 3/8” outlet connection- Side and vertical inlet connection- External safety relief valve (not Acetylene)- Flow over 700 m3/h (maximum)Note: (1) Specify gas when ordering.(2) Vertical inlet models are available on request.(3) Outlet can be reduced from 1/2” npt to 1/4” npt on request
Download Instruction Manual
Download Technical Data Sheet
Download Spare Parts List
Download Safety Data Sheet
