Helvi UniMig 318SWF Mig Welder

Brand: UniMig
SKU: 203460
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

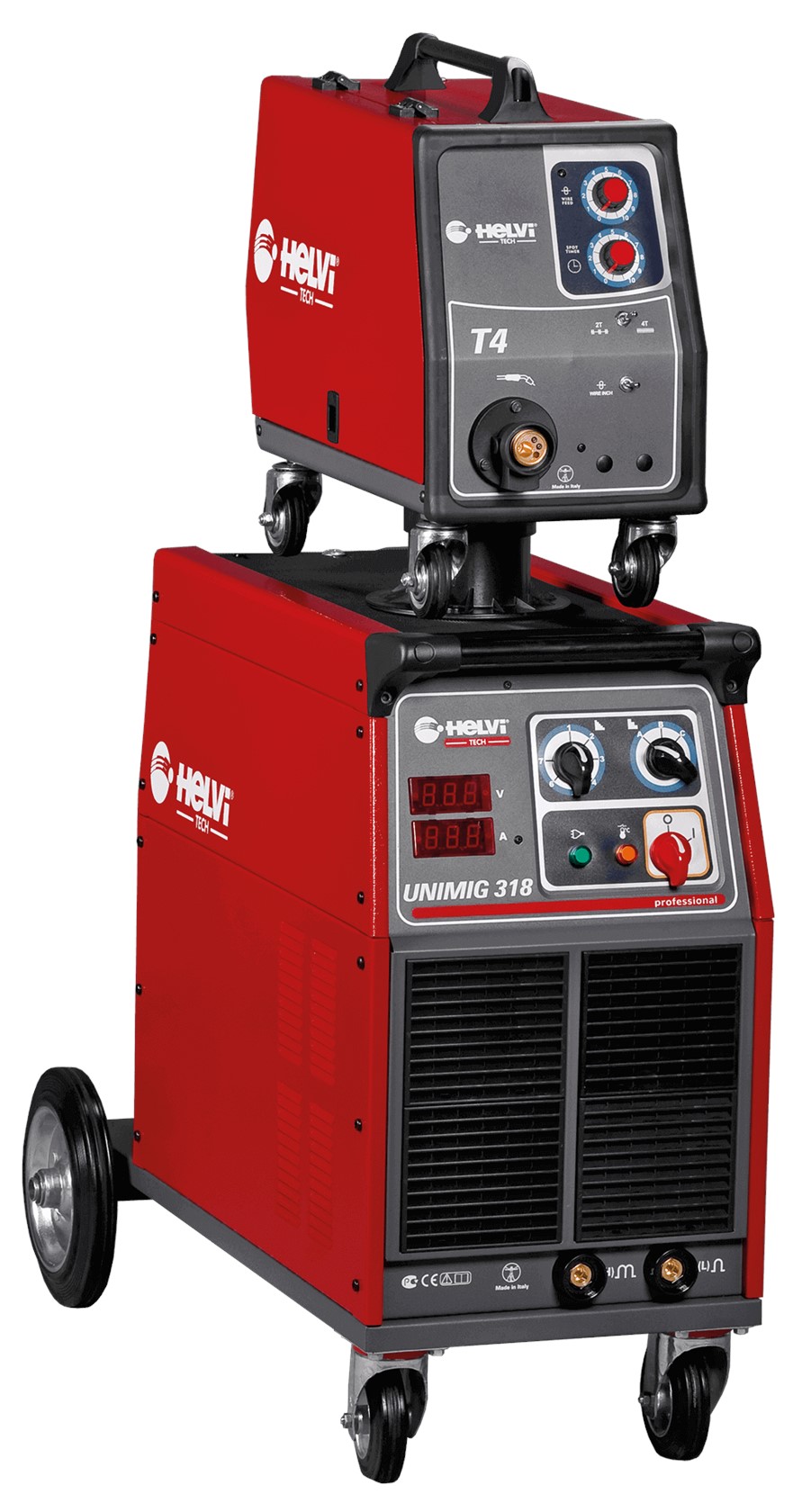

The Helvi UniMig 318SWF Mig Welder is a three phase industrial unit on wheels, equipped with a 4 roll seperate wire feeder. This welder features a timer for spot welding and also welding current and arc voltage displays. It is well suited for the medium sized industrial welding workshop.

Key Features:

- Three phase

- 4 Roll seperate wire feeder

- 5M Interconnecting cable

- Euro torch connection

- Manual and automatic welding selector

- Slope up ramp and burn back time adjustment feature

- Spool holder accepts both 5kg and 15kg spools

Specifications

Products specifications
Voltage230/400V 50/60Hz 3 phase
Power 60%13
U018-42
Amp. Min-Max (A)30-320
Amp.60974-1(A)60%300, 100% 230
Steel (ø mm)0.6 - 1.2
Stainless Steel (ø mm)0.8 - 1.2
Aluminium (ø mm)0.8 - 1.2
Insulation ClassH
Weight137kg
Dimensions100x55.5x134

The Helvi UniMig 318SWF Mig Welder is a three phase industrial unit on wheels, equipped with a 4 roll seperate wire feeder. This welder features a timer for spot welding and also welding current and arc voltage displays. It is well suited for the medium sized industrial welding workshop.

Key Features:

- Three phase

- 4 Roll seperate wire feeder

- 5M Interconnecting cable

- Euro torch connection

- Manual and automatic welding selector

- Slope up ramp and burn back time adjustment feature

- Spool holder accepts both 5kg and 15kg spools

Products specifications
Voltage230/400V 50/60Hz 3 phase
Power 60%13
U018-42
Amp. Min-Max (A)30-320
Amp.60974-1(A)60%300, 100% 230
Steel (ø mm)0.6 - 1.2
Stainless Steel (ø mm)0.8 - 1.2
Aluminium (ø mm)0.8 - 1.2
Insulation ClassH
Weight137kg
Dimensions100x55.5x134
