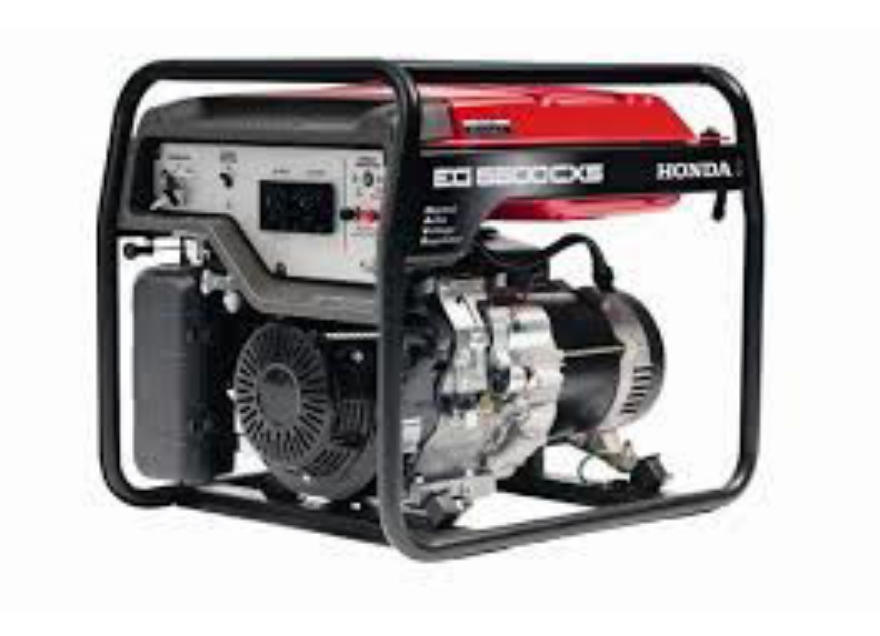

Honda Inverter Generator 5500W EG5500CXS

Brand: Honda
SKU: 30763
EG5500CXS Honda Generator 5500W with Electric Start
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview


The EG5500CXS Electric Start Digital AVR generator features a large capacity fuel tank for extended operating time, as well as the convenience of a fuel gauge to keep you on track.

In keeping with Honda's reputation for smooth and quiet operation, the EG5500CXS is fitted with anti-vibration engine mounts and a large noise-suppressing muffler.

Stable power delivery comes courtesy of Honda's highly advanced D-AVR (Digital Auto Voltage Regulator) which uses a microcomputer to precisely control output voltage, providing high quality stable electricity. This feature offers a greater level of stability than conventional AVR types resulting in reduced load on the devices driven by the generator, increasing their life and facilitating 100% performance.

For functionality and added safety, an AC/DC circuit breaker and oil alert light comes standard on the EG5500CX, while a functional control panel features 15 amp sockets, battery charger and circuit protector.

Equipped with a full steel frame to ensure engine protection and aid transportation, this generator is also available with an optional four wheel dolly kit.

And like all Honda generators, it features Honda's easy start technology for hassle-free starting even after long periods in storage.

Specifications

Products specifications
Product CodeEG5500CXS
EngineGX390
Displacement389 (cc)
Ignition SystemTransistorised Magneto
Oil AlertYes
Starting SystemRecoil & Electric (Battery not included)
Stopping SystemTransistor Magnet
Recommended FuelUnleaded
Fuel Consumption3.12L/hr
Fuel Tank Capacity24L
Continuous Operating Hours8.1hr
Noise LevelLwA 99dB(A)*
Dimension(L x W x H)844 x 530 x 571 (mm)
Weight87kg
Electric StarterNo
Maximun AC Output5500VA
Rated AC Output5000VA
DC Output (Generator/Charger)8.3A
Battery ChargingNo
Frequency MeterNo
Volt MeterNo
Generator TypeD-AVR
Voltage240V
Rated Frequency50Hz
Fuel GaugeYes
AC Circuit BreakerYes
DC Circuit BreakerYes
Auto ThrottleNo
Auto ChokeNo
Fuel InjectionYes
Large Capacity Air Cleaneryes
Large Capacity Fuel TankYes
Large Capacity MufflerYes
Pilot LampNo
Air CleanerSemi Dry Type
Parallel Operations Connection CableNo
Parallel Operations Connection PortsNo
4 Wheel Dolly KitAvailable as an add-on kit.
Conditions* LwA refers to the sound power level and is measured at rated load. This figure can only be compared to other LwA models.
Maximum Output5500W
Continuous Output5000W
