Hypertherm Powermax105 SYNC Incl. 180 Deg Machine Torch Plasma Cutter Package

Free Shipping
Hypertherm /
SKU: 34973

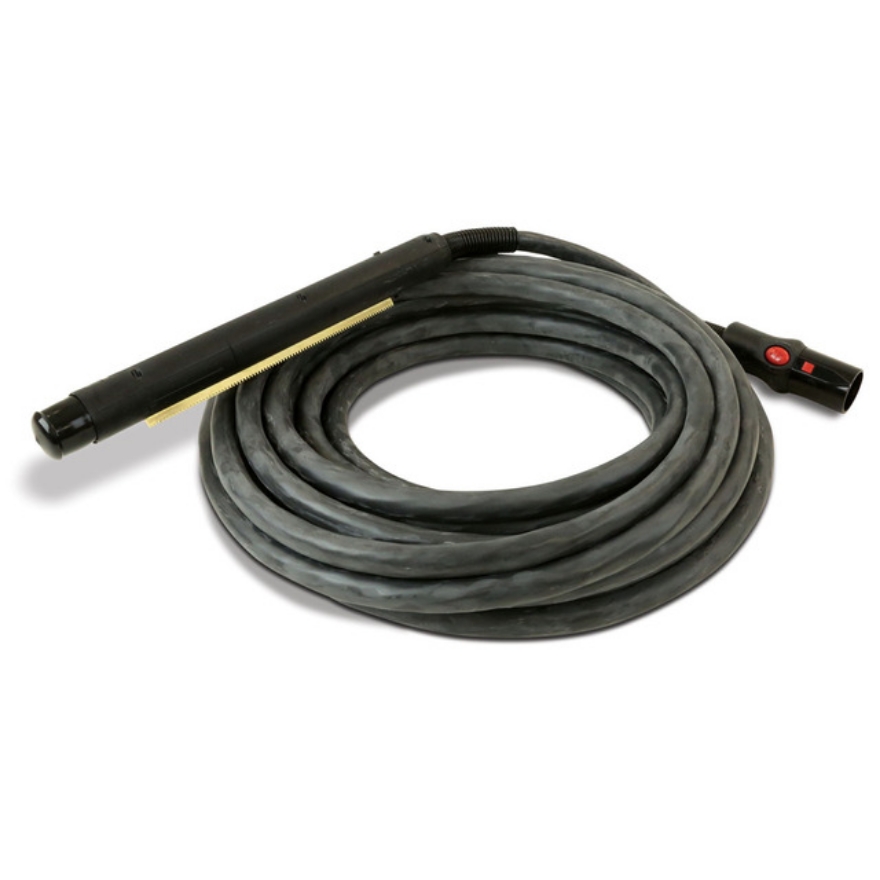

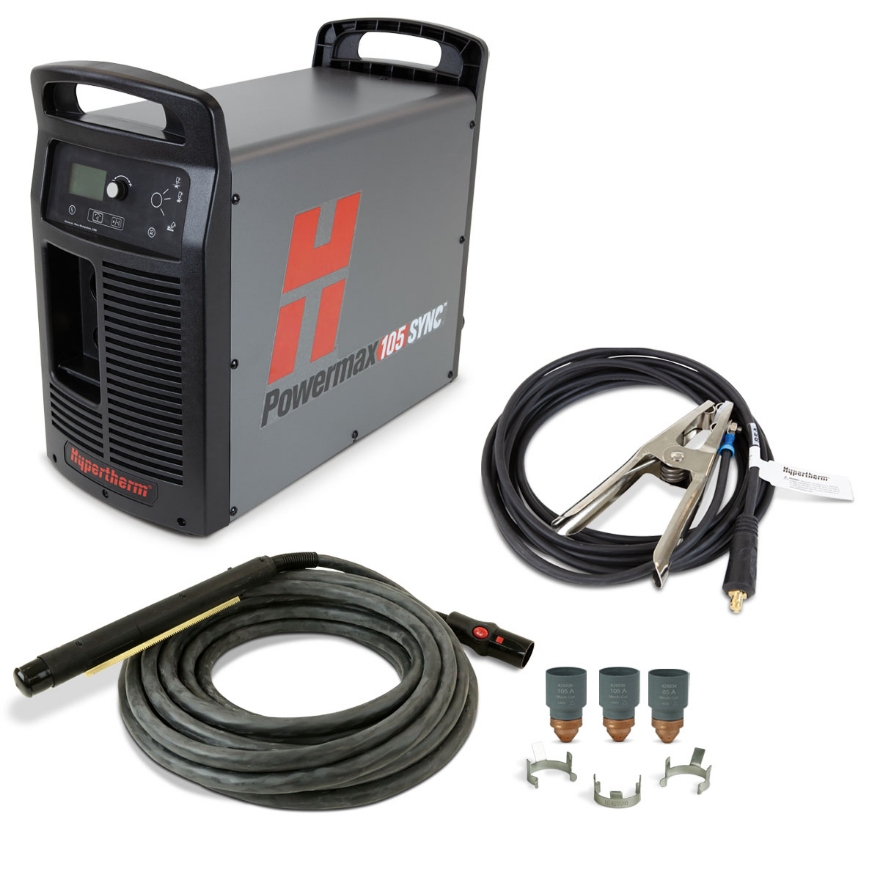

059693 Powermax105 SYNC system, 380-400V 3-PH, CE/CCC, CPC port, 180 degree machine torch, 7.6m (25') lead, work cable

Overview

Product Overview

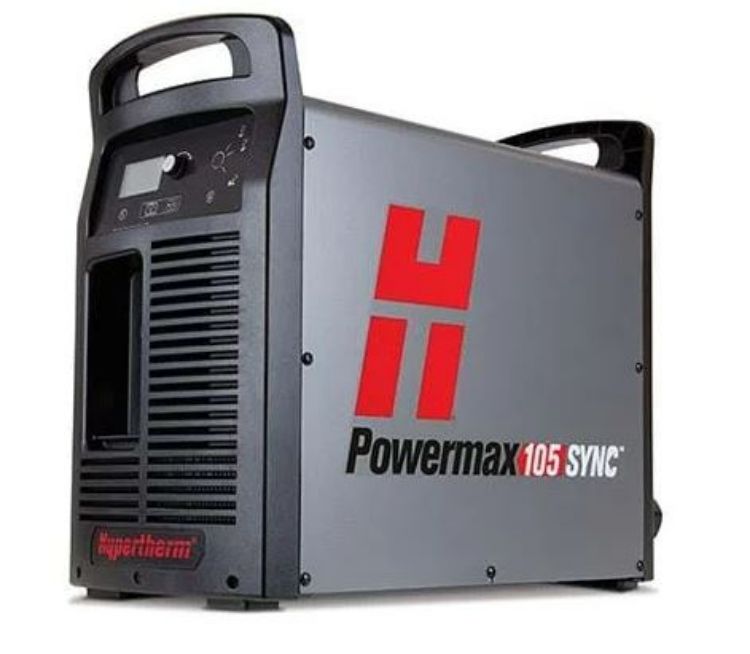

Hypertherm Powermax105 SYNC Incl. 180 Deg Machine Torch Plasma Cutter Package

The Powermax105 SYNC™ is a next-generation, professional-grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 32 mm (1-1/4″). Features automated system process set-up via advanced RFID-enabled SmartSYNC™ torches, and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax105 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance, and streamlined consumable inventory management.

Key Features

  • Colour coded consumables eliminates parts mix up and simplifies consumable inventory management
  • End of life detection setting ensures the operator knows when consumables need replacing
  • Simplified operation minimises downtime, troubleshooting, waste and training time
  • Extended consumable life due to advanced cartridge consumable design
  • Cartridge data accessible for tracking and analysing usage patterns
  • SmartSYNC torches with Hypertherm cartridge automatically set the correct amperage and operating mode
  • Amperage, consumables and applications can be changed on the fly without returning to the power supply
  • SmartSYNC torches are reliable and engineered for rugged, industrial environments
  • Applications include: Mechanized cutting, max control gouging, fine feature cutting, max removal gouging and flush cutting
  • Cutting capacity: 32mm
  • Pierce capacity: 22mm
  • Power source warranty: 3 Years
  • Torch warranty: 1 Year
Benefits

Key Features

Supports Cutting & Gouging
Colour-Coded Cartridges for Easy Identification
RFID SmartSYNC Auto-Sets Amperage & Mode
SmartSYNC Torches Engineered for Tough Environments
Overview

Specifications

Supported Applications / Drag cutting, Extended reach cutting and gouging, Fine feature cutting, Flush cutting, Max control gouging, Max removal gouging, Mechanized cutting
Cut Processes / Plasma – conventional air
Output Amperage Range / 30–105 A
Recommended Cut Capacity / 32 mm (1-1/4″)
Severance Cut Capacity / 50 mm (2″)
Mechanized Pierce Capacity / 22 mm (7/8″)
ISO 9013 Cut Range / 5
Input Voltages / CE/CCC 380–400 V, 3-PH, 50/60 Hz
kW Output / 16.8
Duty Cycle At Max Current / 80%
Process/Shield Gas Options / Air, N2, F5
Torch Style Options / Hand torches, Machine torches, Robotic torches, Handheld Long torches
Dimensions (LxWxH mm) / 592 x 274 x 508
Power Source Weight / 45.3kg
Your Questions Answered

FAQ's

What materials can the Powermax105 SYNC cut?

What is SmartSYNC technology?

What cutting and gouging processes does it support?

What is the maximum cutting and pierce capacity?

What makes the single-piece cartridge consumable unique?

Is the torch durable enough for industrial use?

Benefits

Product Videos

video image

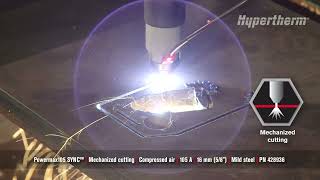

Hypertherm Powermax105 SYNC 16mm Mechanized Cutting 428936
