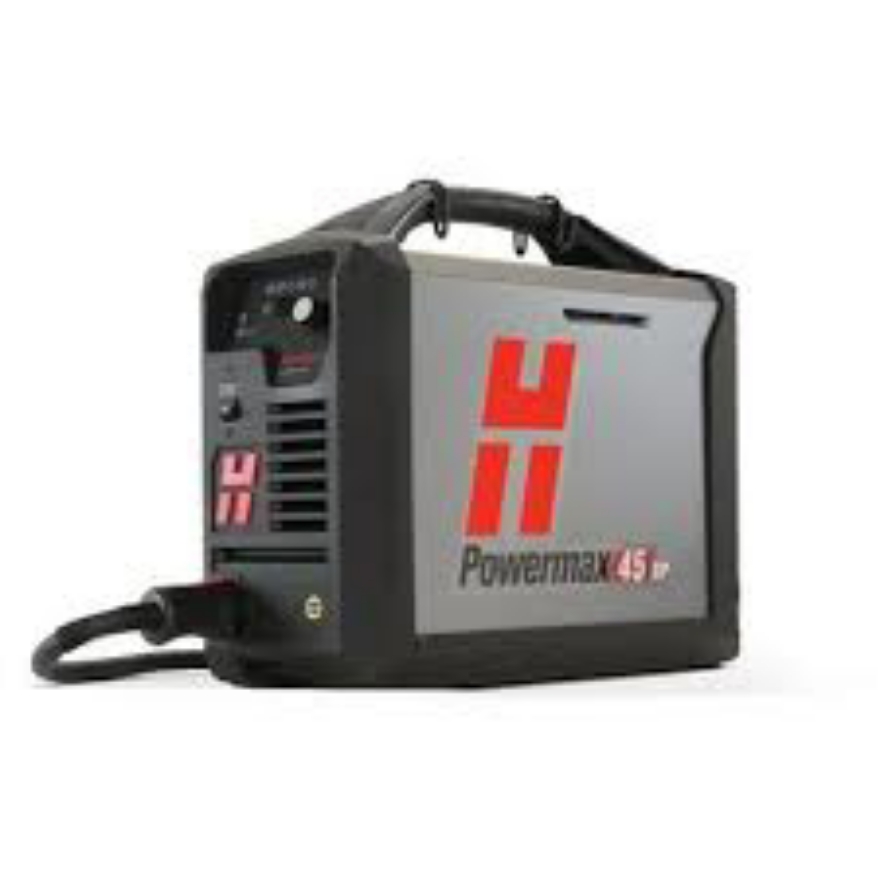

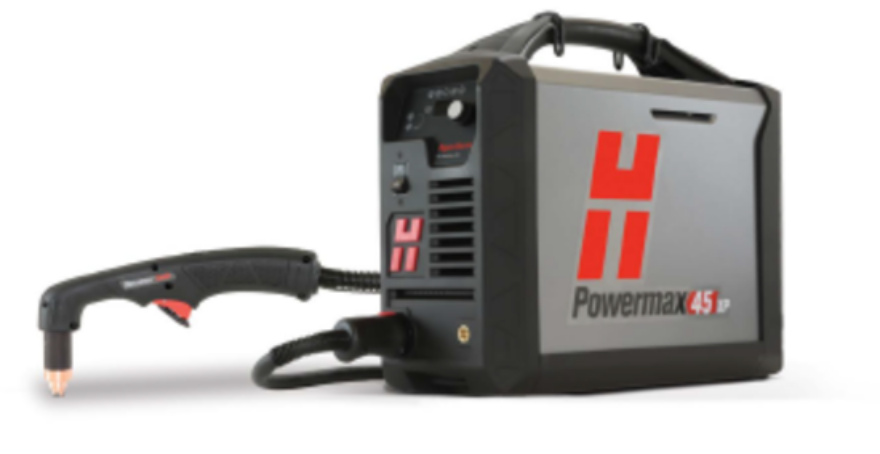

    Hypertherm Powermax45XP

    Meet the newest member of the best-selling line of Powermax® portable plasma systems. The Powermax45® XP delivers increased cut capacity – up to 16 mm (5/8”) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal and marking capabilities.
    SKU: 203621
    Please give us a brief description of your intended application (we may have a better solution.)

    Easy to use

    • Small size and light weight provide exceptional portability for a 16 mm (5/8") rated cutting system
    • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
    • Smart Sense™ technology ensures that air pressure is always correctly set

    Outstanding versatility

    • CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
    • A wide range of torch and consumable styles to choose from for both handheld and automated processes
    • Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging and marking

    Rugged and reliable

    • Duramax® Lock torches are designed for high-impact and heat resistance
    • SpringStart™ technology ensures consistent starting and optimum torch performance
    • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments

    Designed for low environmental impact

    • Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
    • All plasma system components are recyclable
    • 14% lighter than its predecessor and delivers more cutting power
    Products specifications
    Input voltages (± 10%)CSA 200–240 V, 1-PH, 50–60 Hz
    Output current050% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH
    Rated output voltage145 VDC
    Duty cycle @ 40° C (104° F)CSA
    Open circuit voltage (OCV)275 VDC (200 - 240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC)
    Weight with 6.1 m (20') torchCSA14 kg (31 lbs.) CE/CCC15 kg (33 lbs.)
    Gas SupplyCutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean dry and oil-free) argon
    Recommended gas inlet flow rate / pressure188 I/min (400 scfh) @ 5,9 bar (90 psi)
    Input power cable length3 m (10')
    Power supply typeInverter – IGBT
    Engine drive requirement12.5 kVA (10 kW) for full 45 A output
    Electrical efficiency0.88
    Recyclability1
    Dimension(L x W x H)442 mm (17.4") D; 173 mm (6.8") W; 357 mm (14.1") H

    Easy to use

    • Small size and light weight provide exceptional portability for a 16 mm (5/8") rated cutting system
    • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
    • Smart Sense™ technology ensures that air pressure is always correctly set

    Outstanding versatility

    • CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
    • A wide range of torch and consumable styles to choose from for both handheld and automated processes
    • Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging and marking

    Rugged and reliable

    • Duramax® Lock torches are designed for high-impact and heat resistance
    • SpringStart™ technology ensures consistent starting and optimum torch performance
    • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments

    Designed for low environmental impact

    • Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
    • All plasma system components are recyclable
    • 14% lighter than its predecessor and delivers more cutting power
    Products specifications
    Input voltages (± 10%)CSA 200–240 V, 1-PH, 50–60 Hz
    Output current050% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH
    Rated output voltage145 VDC
    Duty cycle @ 40° C (104° F)CSA
    Open circuit voltage (OCV)275 VDC (200 - 240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC)
    Weight with 6.1 m (20') torchCSA14 kg (31 lbs.) CE/CCC15 kg (33 lbs.)
    Gas SupplyCutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean dry and oil-free) argon
    Recommended gas inlet flow rate / pressure188 I/min (400 scfh) @ 5,9 bar (90 psi)
    Input power cable length3 m (10')
    Power supply typeInverter – IGBT
    Engine drive requirement12.5 kVA (10 kW) for full 45 A output
    Electrical efficiency0.88
    Recyclability1
    Dimension(L x W x H)442 mm (17.4") D; 173 mm (6.8") W; 357 mm (14.1") H
