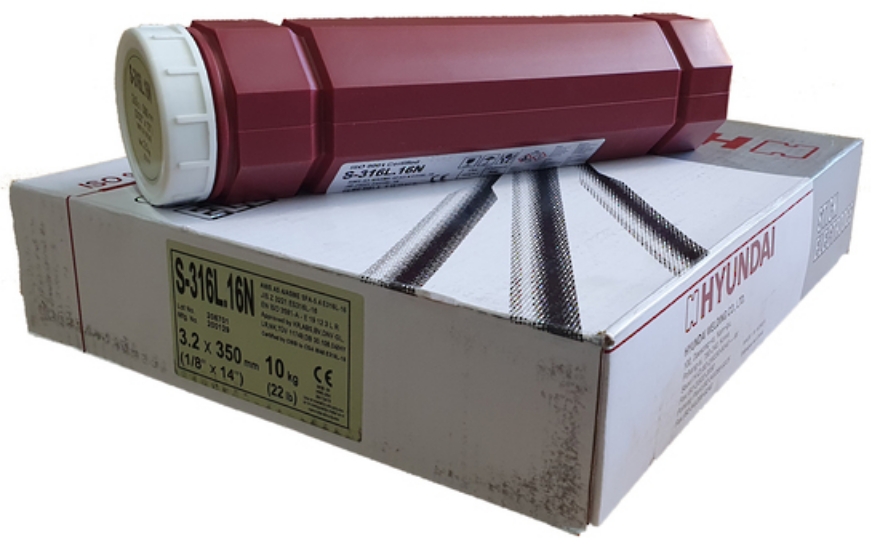

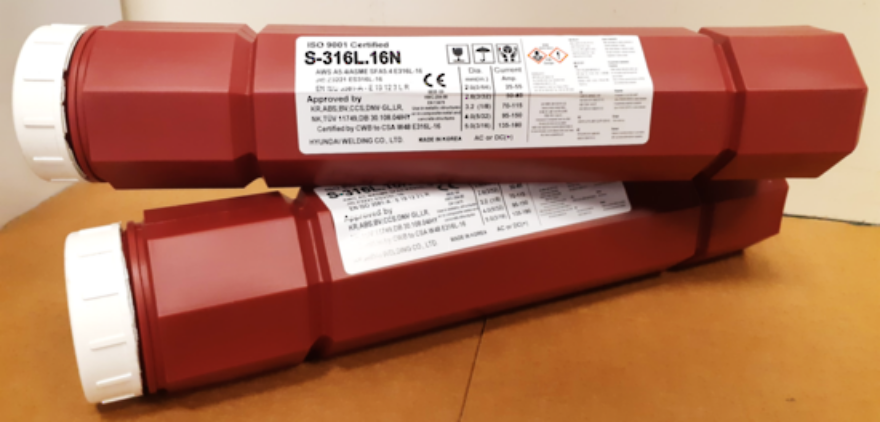

Hyundai 316L Stainless Steel Arc Welding Electrodes

S-316L.16N Hyundai Stainless Arc Electrodes
AWS A5.4 / ASME SFA5.4 E316-16
Type: Rutile

Applications
S-316L.16N Stainless Arc Electrodes
Welding of 18%Cr-12%Ni-3%Mo stainless steel, 13%Cr steel, 17%Cr steel and high toughness
steel when post-heating is not recommended use for welding between dissimilar metal like carbon
steel and stainless steel.

Characteristics of Usage
S-316L.16N is a lime-titania type electrode with good usability and weldability.
As the all-weld metal has an austenite structure including Mo., the corrosion resistance against sulfide acid, phosphoric acid and acetic acid is excellent and heat resistance is also much better than that of 18%Cr-8%Ni stainless steel welds.

Notes on Usage
Used on AC or DC+ Current.
Dry the electrodes at 350 Degrees Celsius for 60 minutes before use.
Keep the arc length as short as possible.
