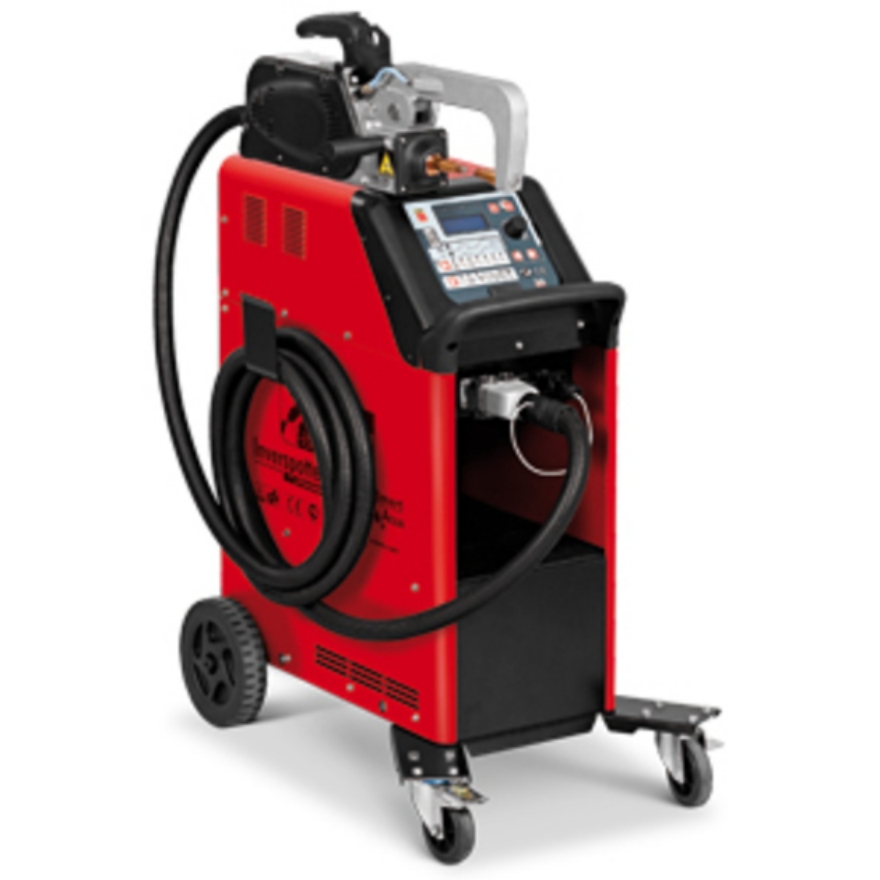

Inverspotter 13500 Smart Aqya 400V + ACC

Brand: Telwin
SKU: 204377
Inverspotter 13500 Smart Aqya 400V + ACC
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

INVERSPOTTER 13500 SMART AQUA

Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding machine.
The POWER GUN technology allows for high spot-welding currents with low absorption rates, the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. Automatic pressure monitoring ensures excellent adjustment of the force applied to the gun electrodes.
It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets.
The innovative SMART AUTOSET technology, thanks to the automatic recognition of the materials and thickness, eliminates set-up times and guarantees optimal spot welding even if the types of steel to be processed are not known.
The WAVE technology facilitates interaction with the machine and tracks all operating parameters for their processing and reporting.
The multifunction digital panel can be used to select the automatic Smart Autoset mode as well as the EASY and the manual mode; the programmes and reports there generated can be transferred to a USB pen drive.
Features:
- pre- and post-heating for interventions on HSS and galvanized metals
- automatic recognition of the arm and inserted tool
- monitoring of mains voltage
- automatic cooling control of machine, clamp and cables
- regulation of approach, slope, welding and holding times
- regulation in pulsed welding
- automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.

Specifications

Products specifications
Three phase main voltage400V
Mains Frequency50-60 Hz
Max Spot-Welding Current12000A
Max no Load Voltage9V
Max Absorbed power41 kW
Main Fuse16A
Inverter Frequency5000 Hz
Power Factor0.95
Duty Cycle0.02
Proctection DegreeIP20
Weight81kg
Dimensions79x45x90

INVERSPOTTER 13500 SMART AQUA

Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding machine.
The POWER GUN technology allows for high spot-welding currents with low absorption rates, the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. Automatic pressure monitoring ensures excellent adjustment of the force applied to the gun electrodes.
It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets.
The innovative SMART AUTOSET technology, thanks to the automatic recognition of the materials and thickness, eliminates set-up times and guarantees optimal spot welding even if the types of steel to be processed are not known.
The WAVE technology facilitates interaction with the machine and tracks all operating parameters for their processing and reporting.
The multifunction digital panel can be used to select the automatic Smart Autoset mode as well as the EASY and the manual mode; the programmes and reports there generated can be transferred to a USB pen drive.
Features:
- pre- and post-heating for interventions on HSS and galvanized metals
- automatic recognition of the arm and inserted tool
- monitoring of mains voltage
- automatic cooling control of machine, clamp and cables
- regulation of approach, slope, welding and holding times
- regulation in pulsed welding
- automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.

Products specifications
Three phase main voltage400V
Mains Frequency50-60 Hz
Max Spot-Welding Current12000A
Max no Load Voltage9V
Max Absorbed power41 kW
Main Fuse16A
Inverter Frequency5000 Hz
Power Factor0.95
Duty Cycle0.02
Proctection DegreeIP20
Weight81kg
Dimensions79x45x90
