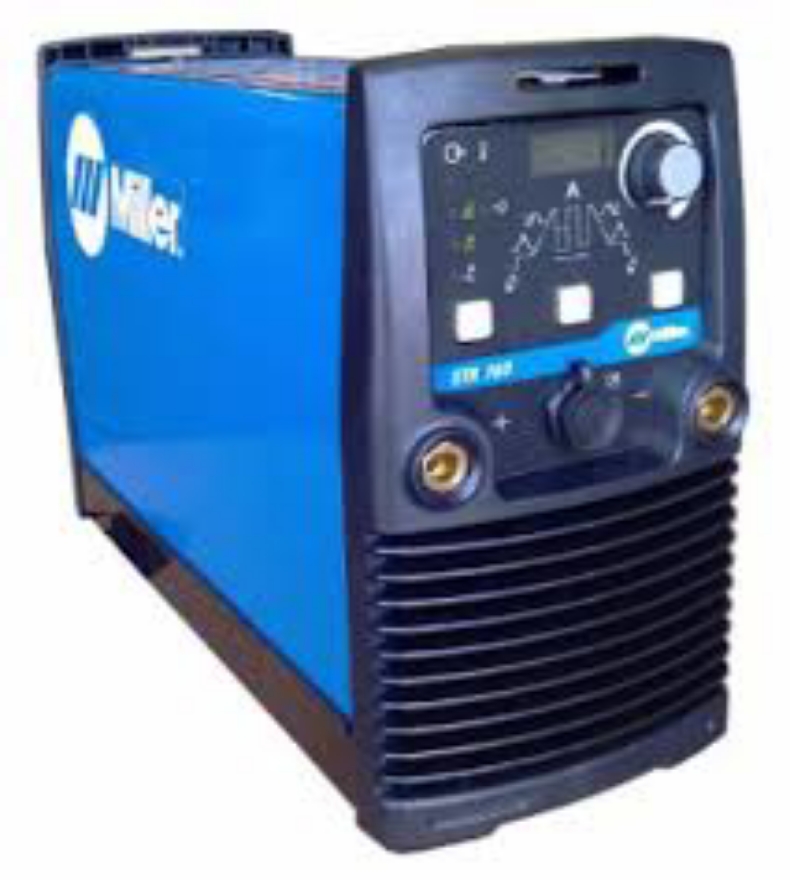

Miller STH160 Inverter Welder

Miller STH160 Inverter. Comes with 7.5m TIG Torch, Earth Lead.

SKU: 203200

Please give us a brief description of your intended application (we may have a better solution.)

Overview
Specifications
Reviews
Contact Us
Downloads

Features:

• Digital meter: Displays preset and actual welding current
• HF Start: Non-contact arc starting eliminates contamination
• Pulse Capability: Select from four fixed frequencies
• Adjustable Hot Start: Automatically increases output on MMA stick arc start
• Adjustable Arc Force: Automatically increases output amperage at start up
• Miller 3 year warranty

Products specifications

Input	230V 1 Phase
MMA Duty Cycle @ 100%	100A @ 24V DC
MMA Duty Cycle @ 25%	150A @ 26V DC
TIG Duty Cycle @ 100%	100A @ 14V DC
TIG Duty Cycle @ 20%	160A @ 16.4V DC
Amp Range	4 - 150A (MMA) / 4 - 160A (TIG)
Max. OCV DC	70V
Protection class	IP23
Dimension	380 x 145 x 245mm
Weight	6kg
