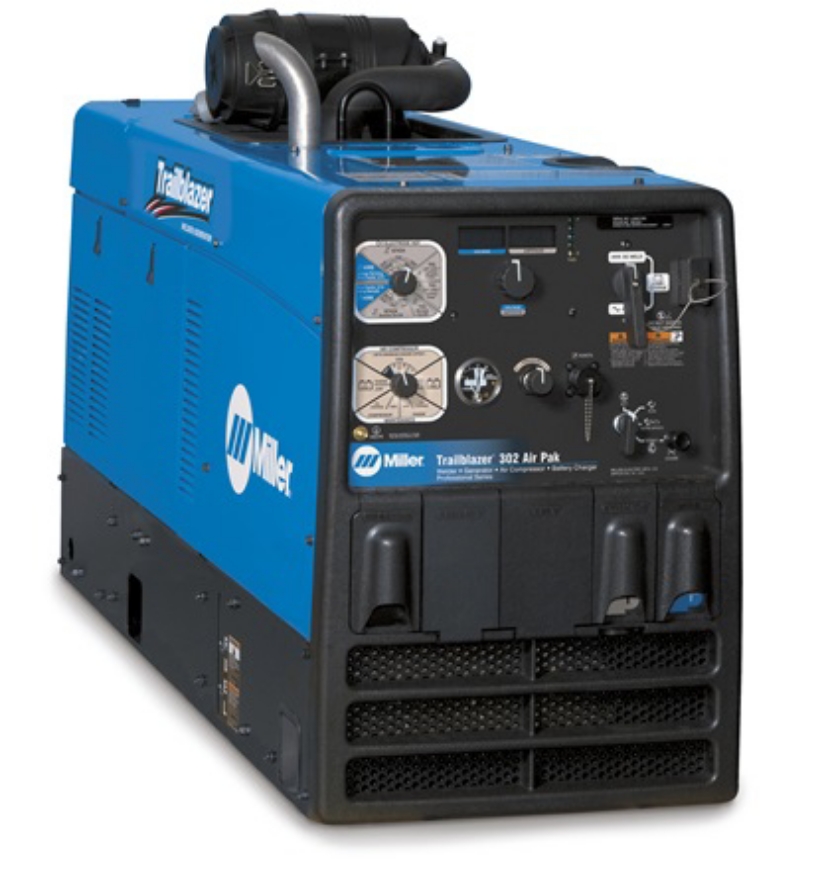

    Miller Trailblazer 302 Air Pak

    Miller Trailblazer 302 Air Pak Engine-Driven Welder/ AC Generator/ Air Compressor/ 12/24v Battery Charger
    SKU: 205450
    Please give us a brief description of your intended application (we may have a better solution.)
    Four Tools In One
    Professional welding performance in all processes with the best welding arc in its class. 13,000 watt generator, 31 CFM rotary screw air compressor, and 12-24-volt battery charger/ jump starter.
    Superior Arc Performance
    The best arc performance and multi-process versatility: Four preset DIG settings (Stick) to make the arc softer or stiffer depending on electrode and operator preference. Adaptive Hot Start (Stick) ensures easy arc starts regardless of operator technique. Excellent MIG/FCAW arc performance to run smoothly with solid and flux-cored wires. Lif Arc, TIG with Auto-Crater and Auto-Stop. Lift Arc minimizes/eliminates contamination when starting, Auto-Stop prevents arc flare at the arc end and Auto-Crater eliminates the need for a remote control by automatically ramping down amperage at the end of a weld to fill in the crater. DC Stick: 25-300 A DC TIG: 10-300 A AC TIG/Stick: 10-225 A MIG/FCAW: 13-35 V, 350 A
    Independent Weld/Generator Power
    Delivers an industry-leading 13,000 watts of peak generator power independent of weld settings—enough to power a Spectrum® 875 plasma cutter, and provide air for plasma cutting at the same time. (Rated 5/8" mild steel)
    Rotary Screw Compressor
    Quiet and durable rotary-screw compressor delivers 31 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F.  It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
    Products specifications
    Engine BrandKohler
    Engine Idle Speed2400 RPM
    Engine Weld Speed3600 RPM
    Fuel Tank Size12 Gallon
    Fuel TypeGasoline
    Horsepower27 hp
    Weldable MetalsAluminum Steel Stainless Steel
    Rated OutputCC/AC 200 A at 25 V, 60% Duty Cycle CC/DC 280 A at 32 V, 100% Duty Cycle CV/DV 350 A at 32 V, 60% Duty Cycle 300 A at 32 V, 100% Duty Cycle
    Single Phase Generator Continuous Power11000 W
    Single Phase Generator Peak Power13000 W
    Sound Rating73.4 dB @ idle and 81.2 db @ weld dB
    Current TypeAC / DC
    Amperage Range10 - 300
    PortabilityLift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
    Weld OutputCC / CV
    Net Width20 in
    Net Height34.5 in
    Net Length59.625 in
    Net Weight771 lbs
    Warranty3 Years Engine Warranties Miller's True Blue Warranty
