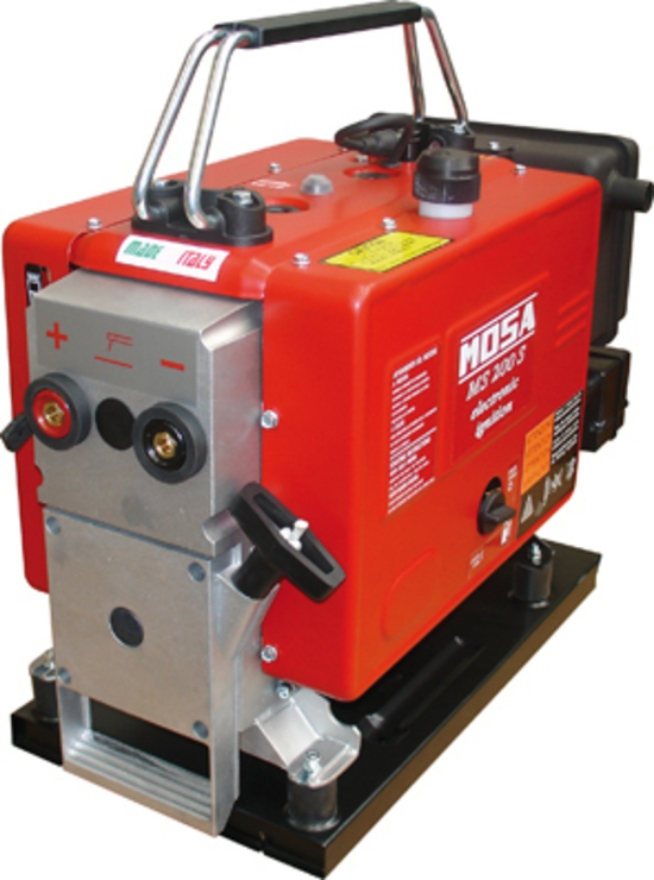

    MOSA MS 200 S Engine Driven Welder

    165A Welder - Only 28Kg - Excellent for Contractors & on site Engineering work.
    SKU: 203542
    Please give us a brief description of your intended application (we may have a better solution.)
    Key Features

    Engine MOSA, Petrol, Air Cooled, 2 Stroke

    Alternator MOSA, asynchronous, brushless

    Max welding current 165A

    Welding process: CC Stick

    Products specifications
    Current range, continuous Duty cycle50 - 165 A
    Open circuit voltage50A
    Electrode diameter165 A - 35%, 140 A - 60%
    Duty Cycle2 - 4 mm
    Single-phase generation2 kW / 230 V / 8.7 A
    Maximum Output6.6 kW (9 HP)
    Speed6000 rpm
    Displacement / Cylinders125 cm /1
    Fuel systemgasoline/oil mixture (50 : 1)
    Fuel Consumption530 g/kWh
    Tank Capacity3 l
    Running time (at duty cycle 60%)1.5 h
    ProtectionIP 23
    Weight28.5 kg
    Noise Level101 LWA (76 dB(A) - 7 m)
    Dimension(L x W x H)570x300x410
