MOSA TS 200 DES/EC Engine Driven Welder

Brand: Mosa
SKU: 204699
$ 6,595 .00
$ 7,584.25 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

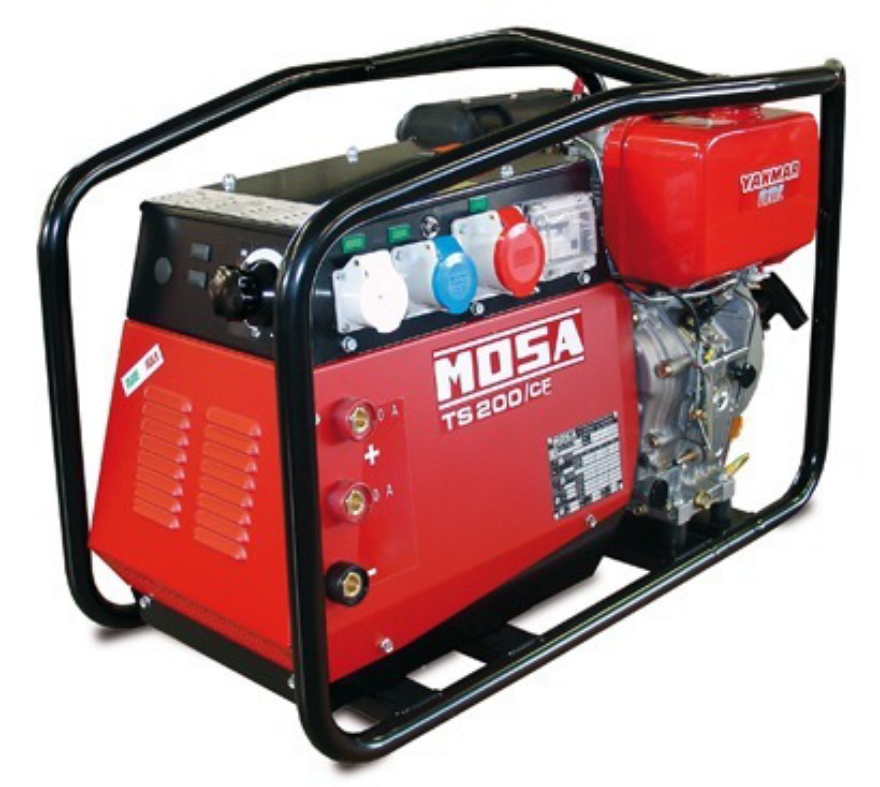

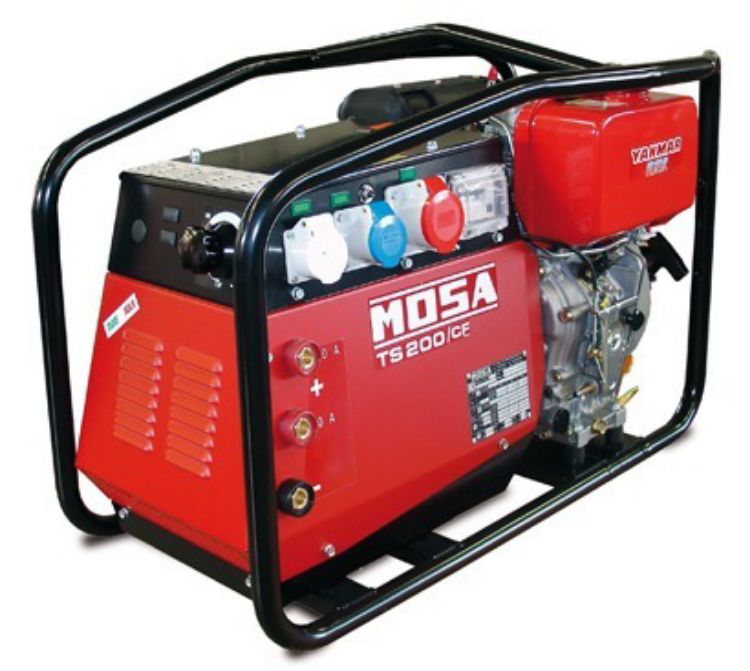

The MOSA TS 200 DES/EC Engine Driven Welder is a lightweight three phase machine equipped with a YANMAR L100N diesel engine with electrical start up. It can be used as a welder or as a three phase and signle phase electrical generator up to 6kVA. The welding current is continuous and has two welding scales that are selectable by connecting to two different welding sockets. This machine welds any type of electrode including cellulosic and is also capable of welding with up to 4mm diameter electrodes.

Key Features:

- Engine YANMAR L100, air cooled, petrol

- Alternator MOSA, asynchronous, brushless

- Protective frame

- Max welding current 170 A

- Welding process: CC Stick, TIG Scratch start

- Auxiliary output: CEE socket standard: 1x 16A 400V; 1x 16A 230V; 1x 32A 48V

Specifications

Products specifications
Current range, continuous20 ÷ 100A / 90 ÷ 190A
Duty Cycle190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage98 V
Sockets1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Dry weight TS 200 DES/CF150 kg
Acoustic power LwA (pressure LpA)99 dB(A) (74 dB(A) @ 7 m)
Dimension900x550x620 mm

The MOSA TS 200 DES/EC Engine Driven Welder is a lightweight three phase machine equipped with a YANMAR L100N diesel engine with electrical start up. It can be used as a welder or as a three phase and signle phase electrical generator up to 6kVA. The welding current is continuous and has two welding scales that are selectable by connecting to two different welding sockets. This machine welds any type of electrode including cellulosic and is also capable of welding with up to 4mm diameter electrodes.

Key Features:

- Engine YANMAR L100, air cooled, petrol

- Alternator MOSA, asynchronous, brushless

- Protective frame

- Max welding current 170 A

- Welding process: CC Stick, TIG Scratch start

- Auxiliary output: CEE socket standard: 1x 16A 400V; 1x 16A 230V; 1x 32A 48V

Products specifications
Current range, continuous20 ÷ 100A / 90 ÷ 190A
Duty Cycle190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage98 V
Sockets1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Dry weight TS 200 DES/CF150 kg
Acoustic power LwA (pressure LpA)99 dB(A) (74 dB(A) @ 7 m)
Dimension900x550x620 mm
