Optrel Clearmaxx Grinding Helmet & Swiss Air Kit

Product Overview

Unlimited clear view of your workspace, filtered and clear air with adjustable air distribution makes the clearmaxx the unique face and respiratory protection system with the highest safety level. Thanks to a minimized weight of only 330 g (PAPR version: 495 g) and an ergonomic fit the clearmaxx sets new benchmarks in wearing comfort. Combine this with the Optrel swiss air respiratory protection system and you'll enjoy fresh air, completely independent of your activity and your other protective equipment.

Key Features

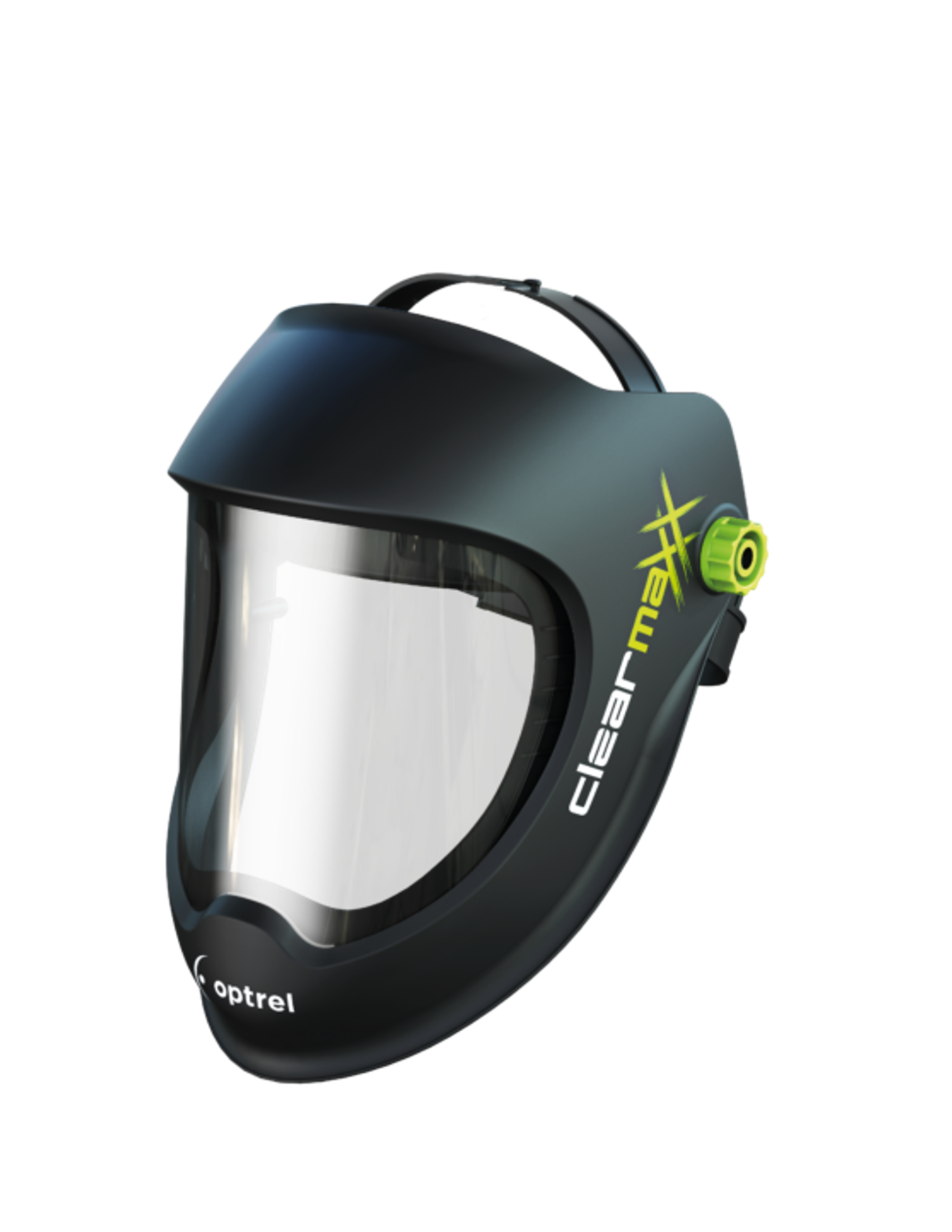

Clearmaxx Grinding Helmet:

- Unlimited, clear view of your work space

- Adjustable air distribution allows for filtered and clear air flow

- Multi function system - can be combined with the Optrel E3000 PAPR System

- Easy-to-change DIN5 front cover lens expands the system for efficient plasma cutting

- Lightweight helmet - 330g (PAPR version: 495g)

- Common applications include grinding, metal industry, food industry, sand blasting, wood working, feather industry, painting, landfills and agriculture

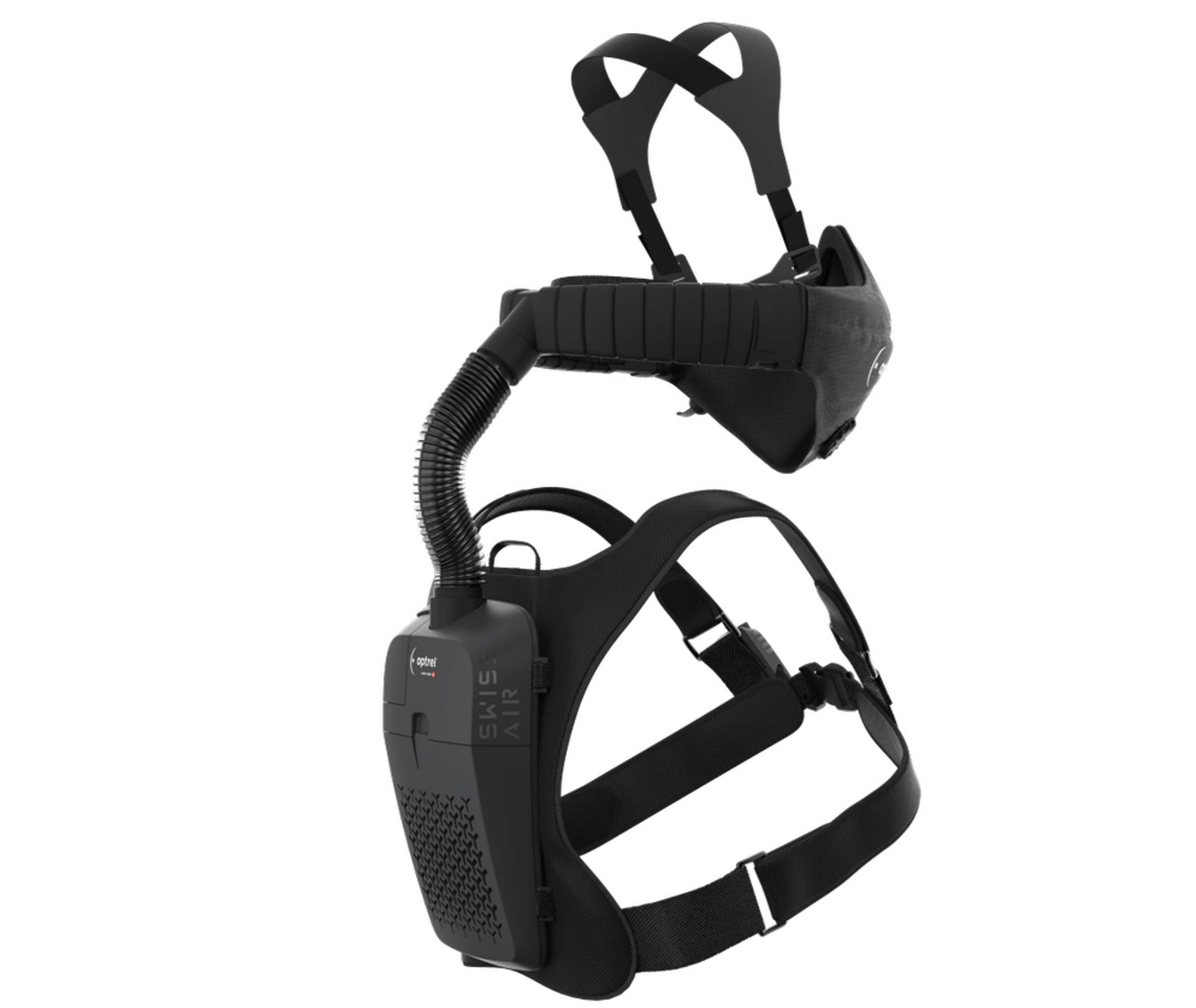

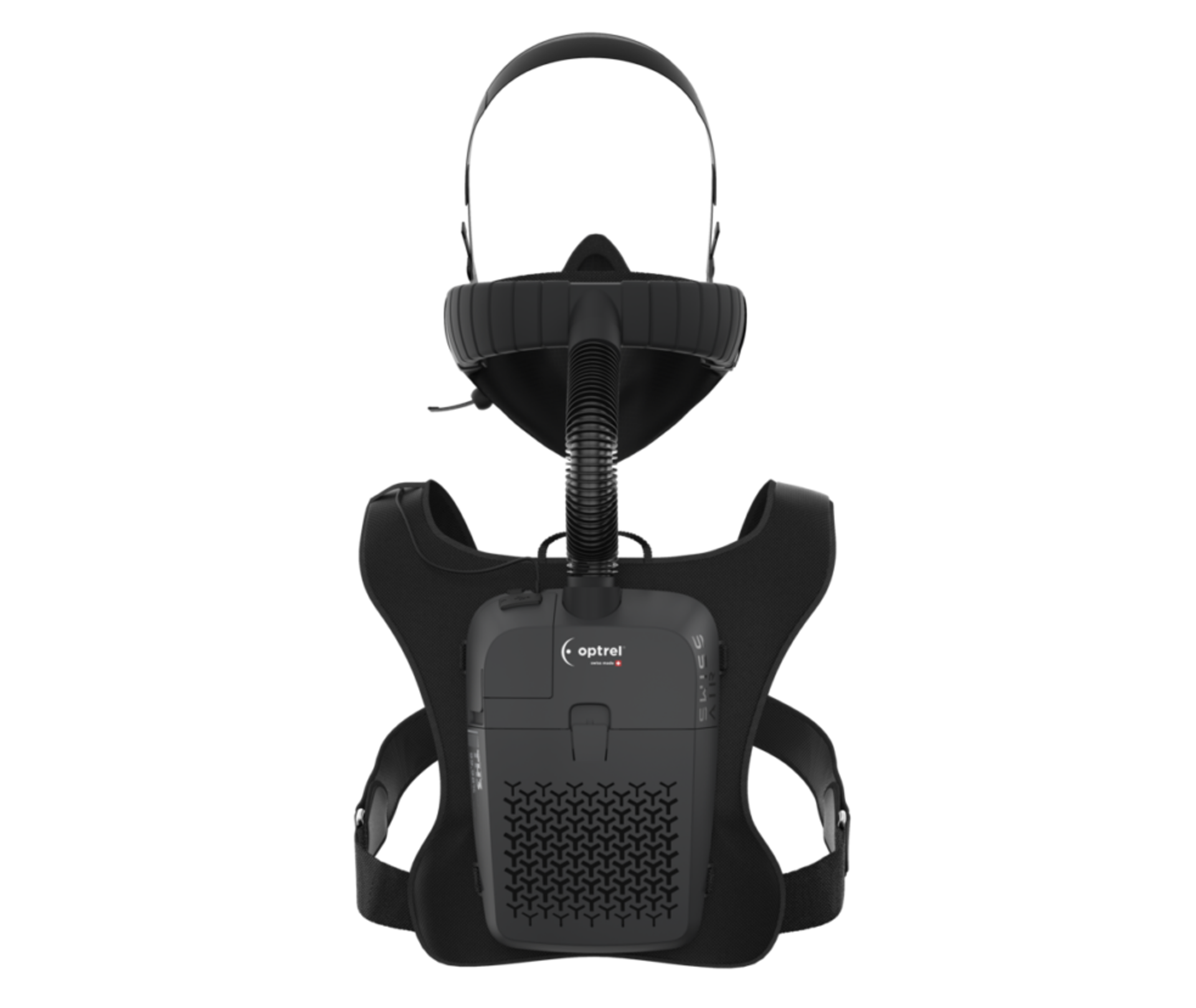

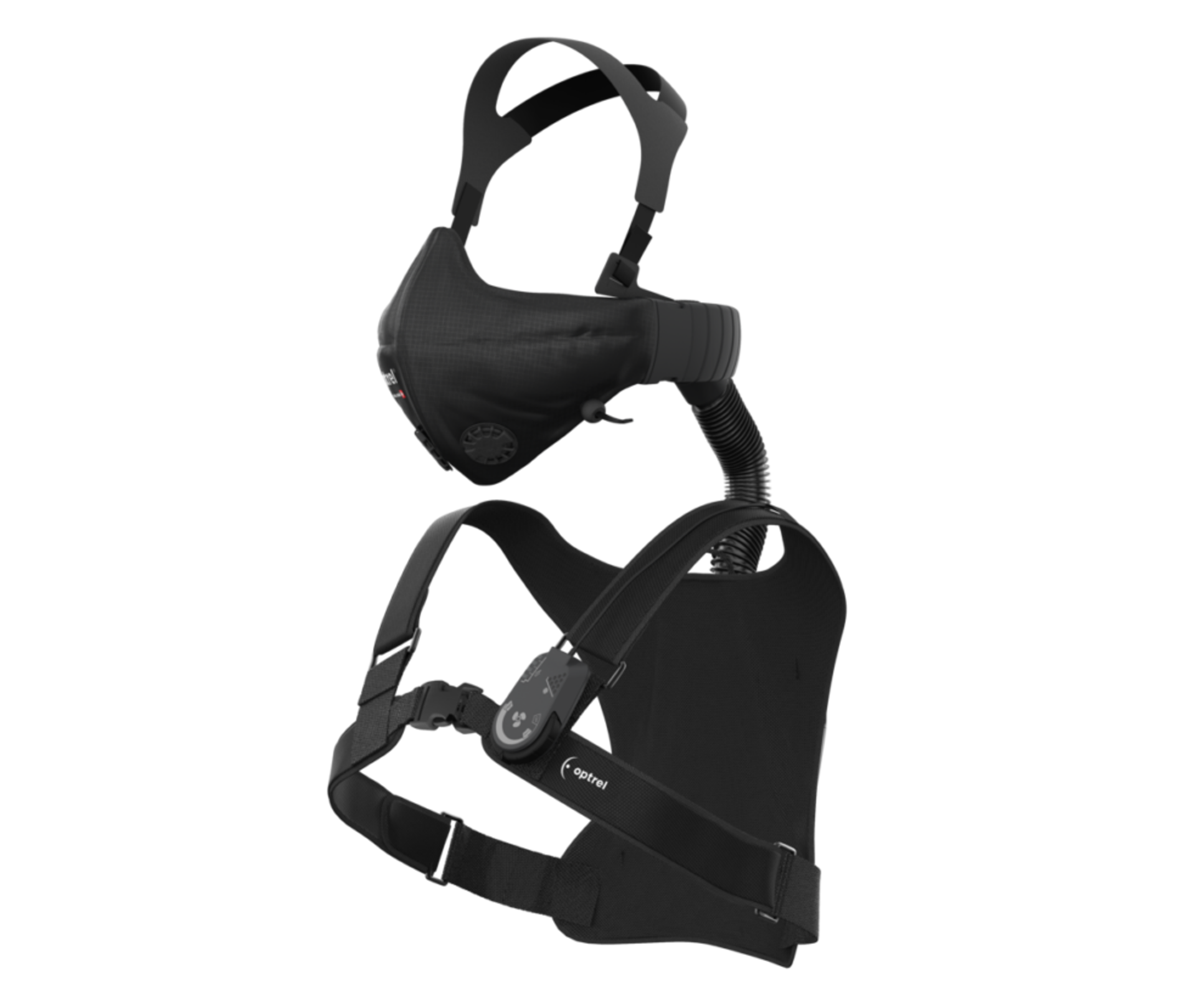

Swiss Air Kit:

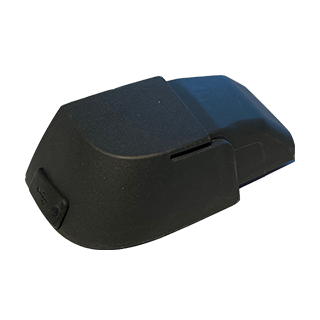

- 14 hour battery pack

- Adjustable air flow system for more comfort and avoiding dry eyes

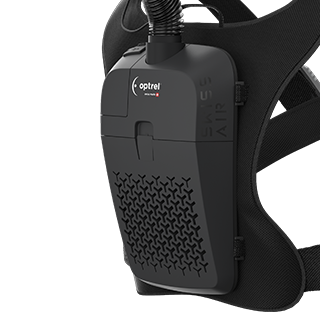

- TH3 filters provide ulitmate protection, filtering 99.8% of respirable particles out of the air

- Ergonomic, lightweight design for comfortable all-day wear

- Multi-function system able to be worn on its own or underneath PPE

- Positive air pressure design provides breathing protection for everyone and is beard friendly!

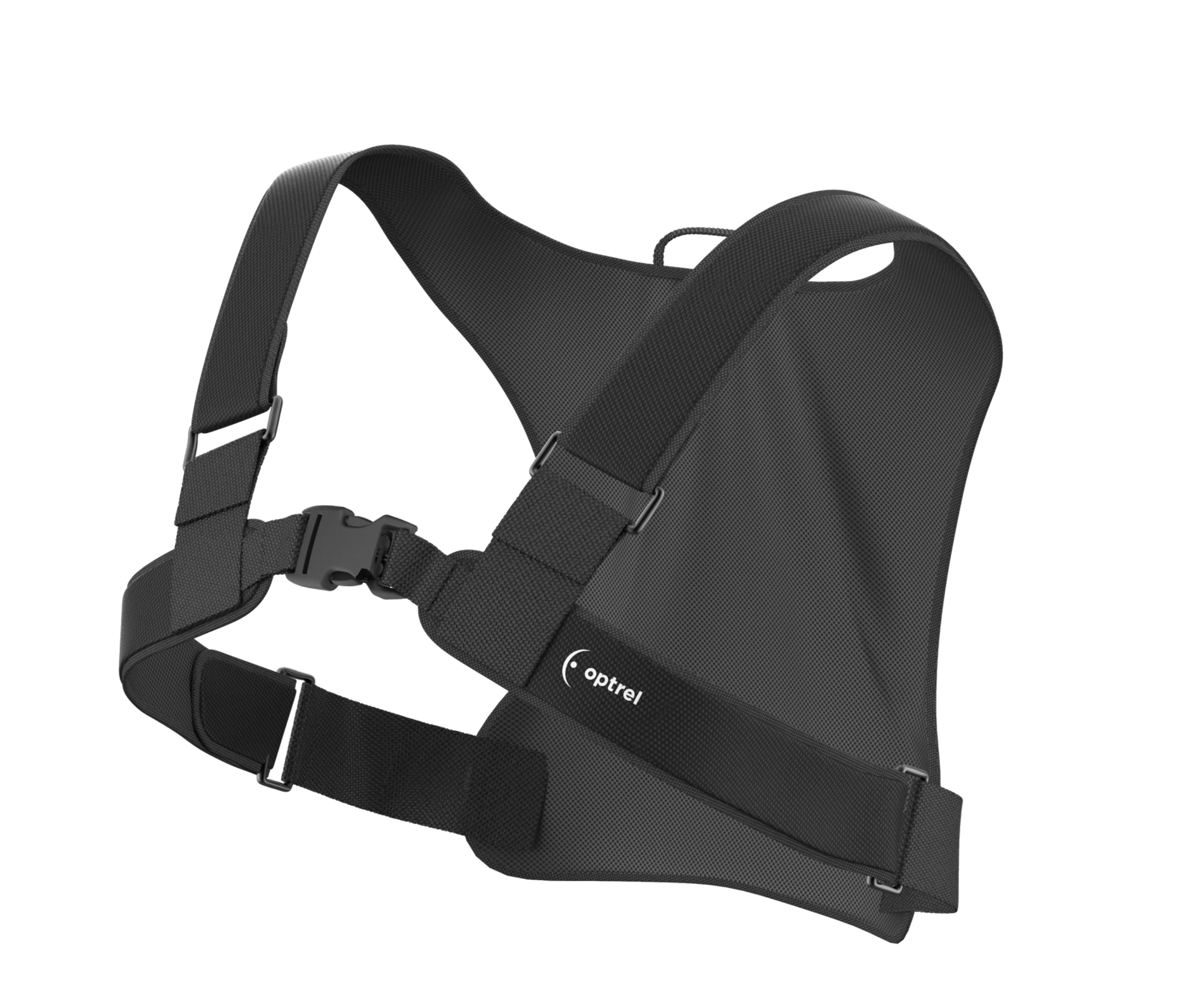

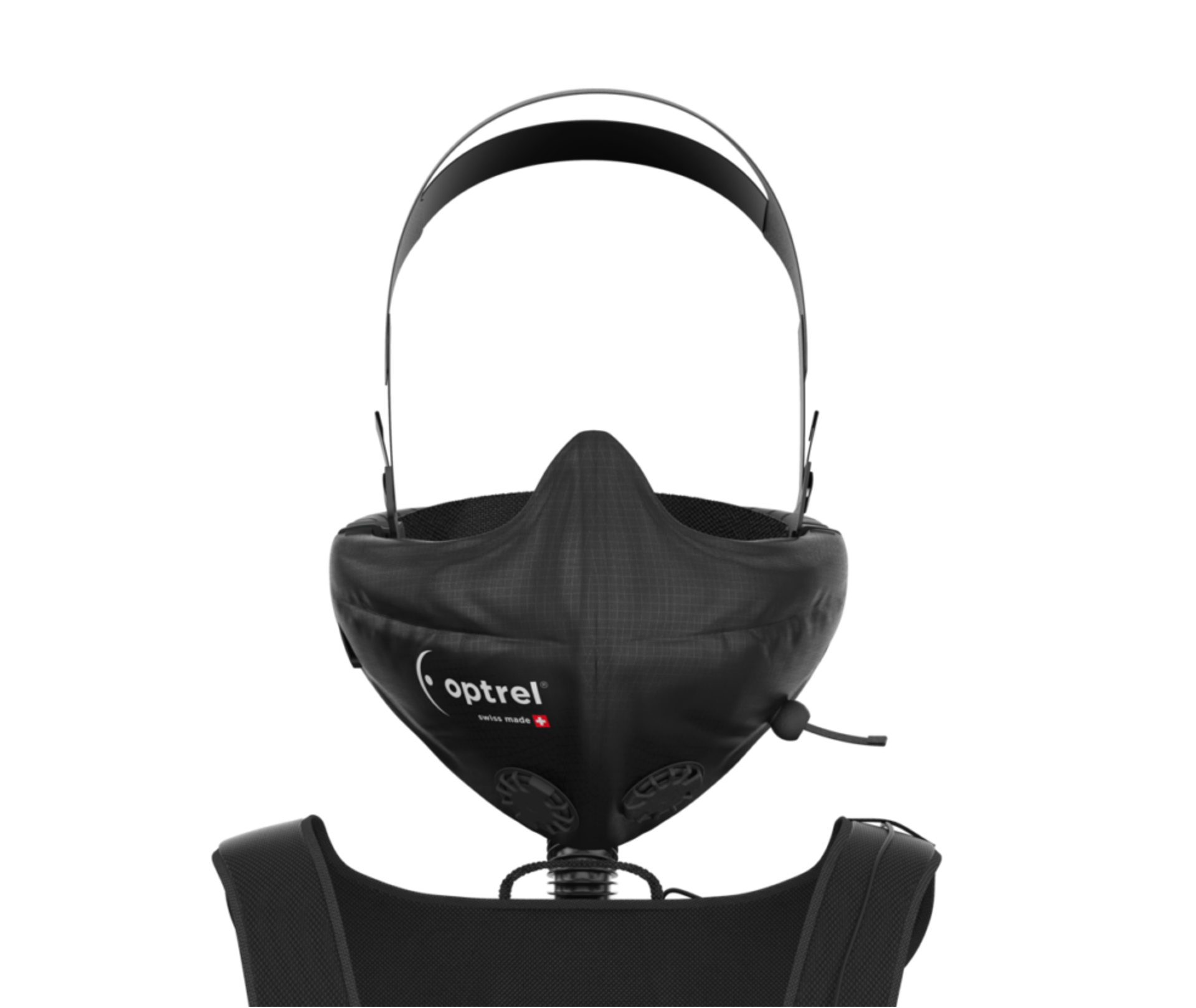

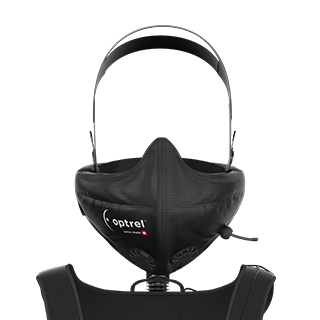

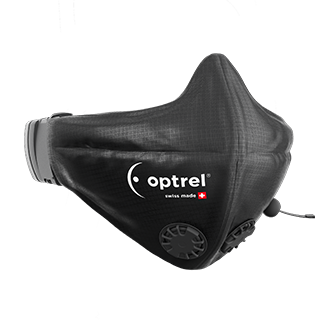

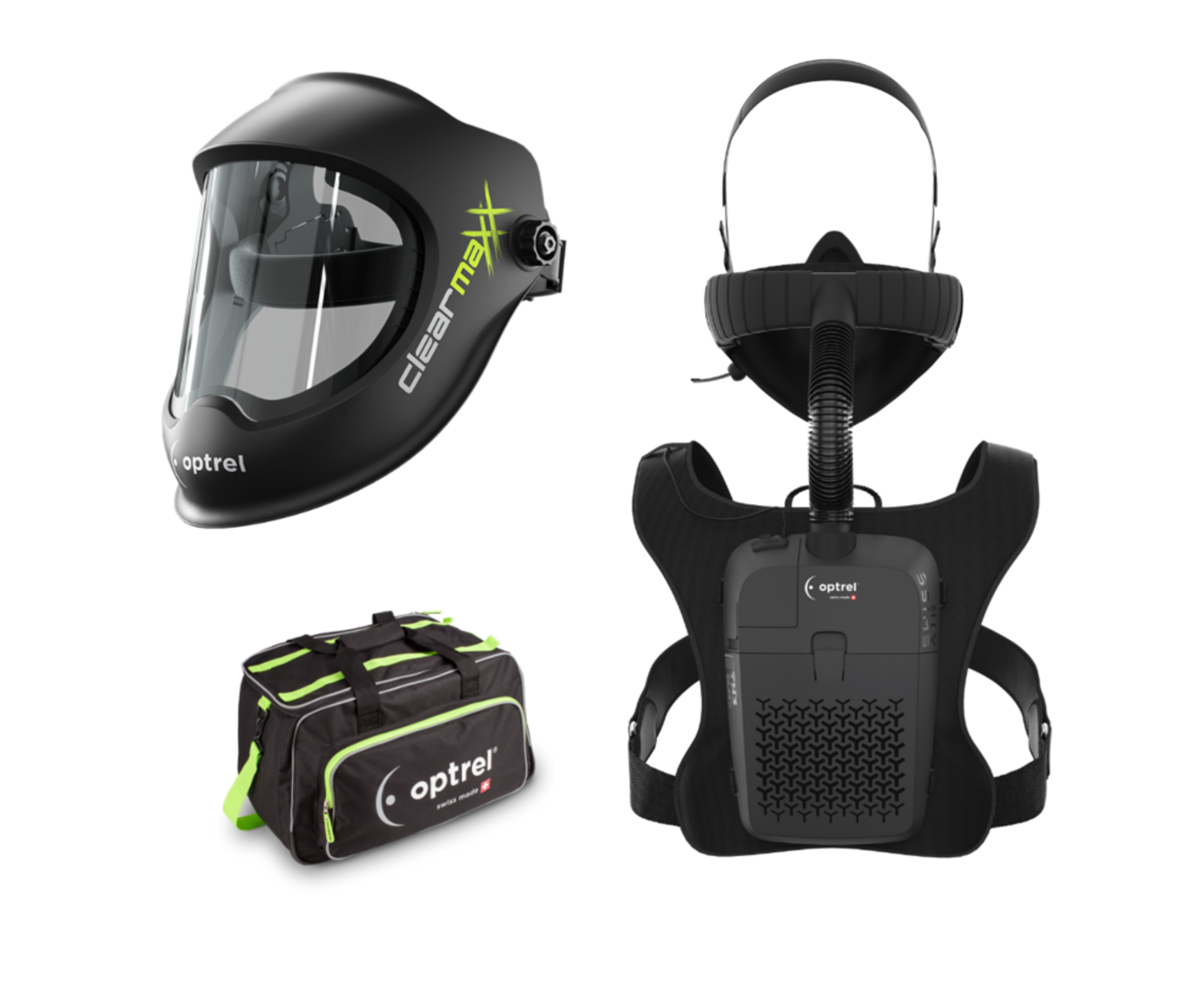

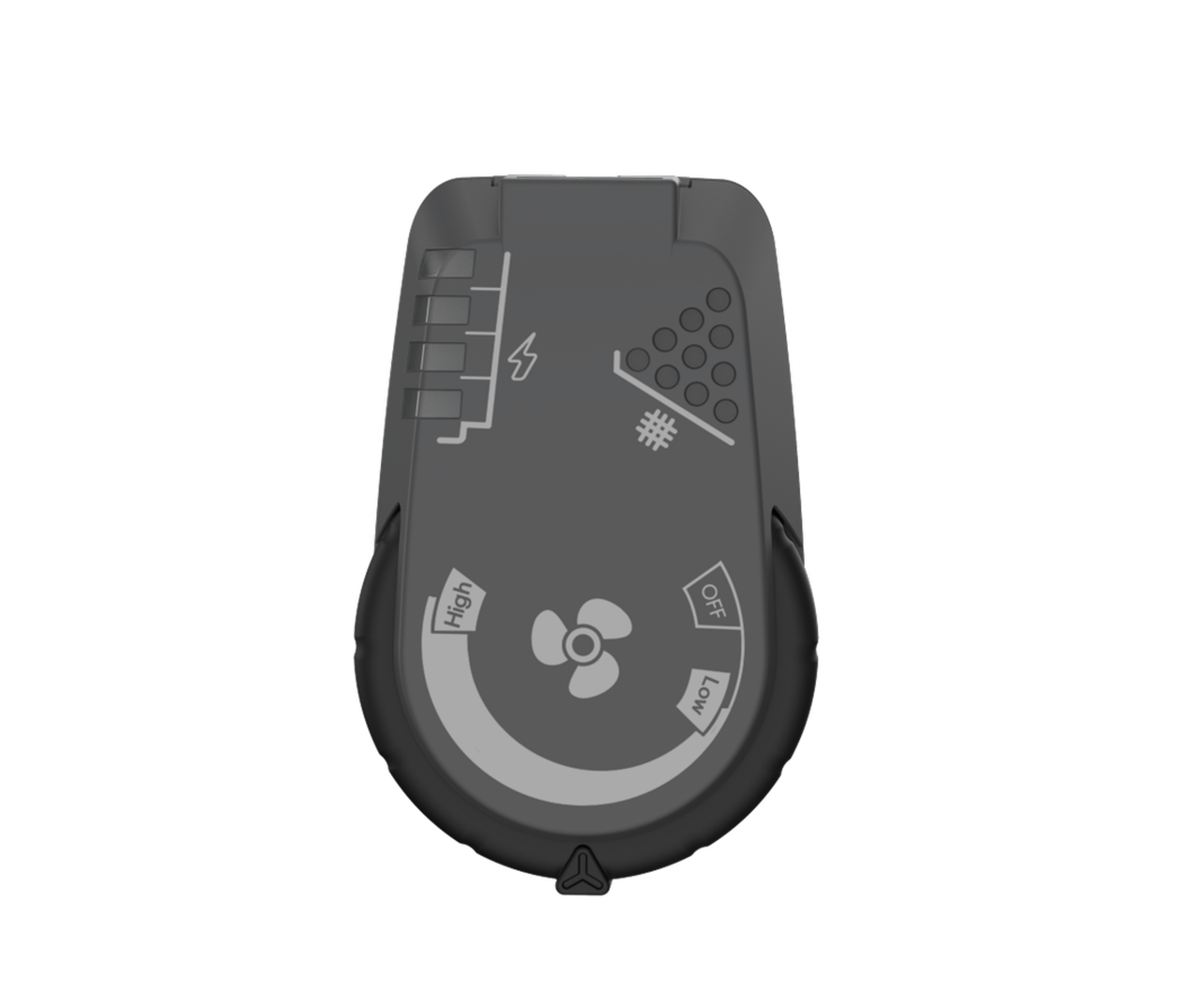

- Complete package includes Optrel Clearmaxx grinding helmet and Optrel Swiss Air kit complete with control panel, incl. comfort half mask: consisting of half mask and hose system incl. head and neck strap, blower unit, shoulder harness, charger, storage bag

Downloads

Technical Data Sheet
Spare Parts List
Instruction Manual
Safety Data Sheet

Products specifications

Protection level	Protection level TH3 (EN 12941)
Dimensions	250x170x50mm
Battery Life	Level 1: 14h, Level 2: 12h, Level 3: 8h
Noise Level	70db (max)
Hose Length	180mm (elastic, up to 355mm excl. Y-hose)
Standard	EN 12941, Europe: TH3, Australia: P3, AS/NZS 1716, EAC TP TC 019/2011
Material	PA66 GF30
Filter Type	TH3P R SL Filter for TH3P System (EU) with pre-filter
Flow rates	Level 1: 100L/min, Level 2: 115L/min, Level 3: 130L/min
Weight	Blower Unit: 550g, Overall system: 1200g
Battery Type	Li-Ion, Rechargable, 3.6V/6.5Ah/23.4Wh
Warranty	36 months* with product registration

Product Videos

Optrel Swiss Air - Smith Engineering Customer Review

Optrel Swiss Air Unboxing

Optrel Swiss Air Overview

Optrel Swiss Air Quickstart Guide

Frequently Asked Questions

Customer Reviews

Sort By :

Displaying 1-1 of 1 reviews

Happy workers, happy life

Lightweight and comfortable to wear for hours. Not bulky and doesn't get in the way while working. Comfortably worn under welding helmet and/or visor. More effective than a standard respirator at filtering fumes. Headband seems a bit light but overall quality is high.
Used in a General Engineering workshop when welding primed and galvanised steel over the past month. We got one to try it out and will definitely be buying more for the team.
Proline have been great to deal with over this purchase.

Ailsa Hayes
15/03/2024

1 out of 1 has found this review helpful

Did you find it helpful? 👍 👎
