Promax HD200 Welding Positioner

Free Shipping
Promax /
SKU: 204357

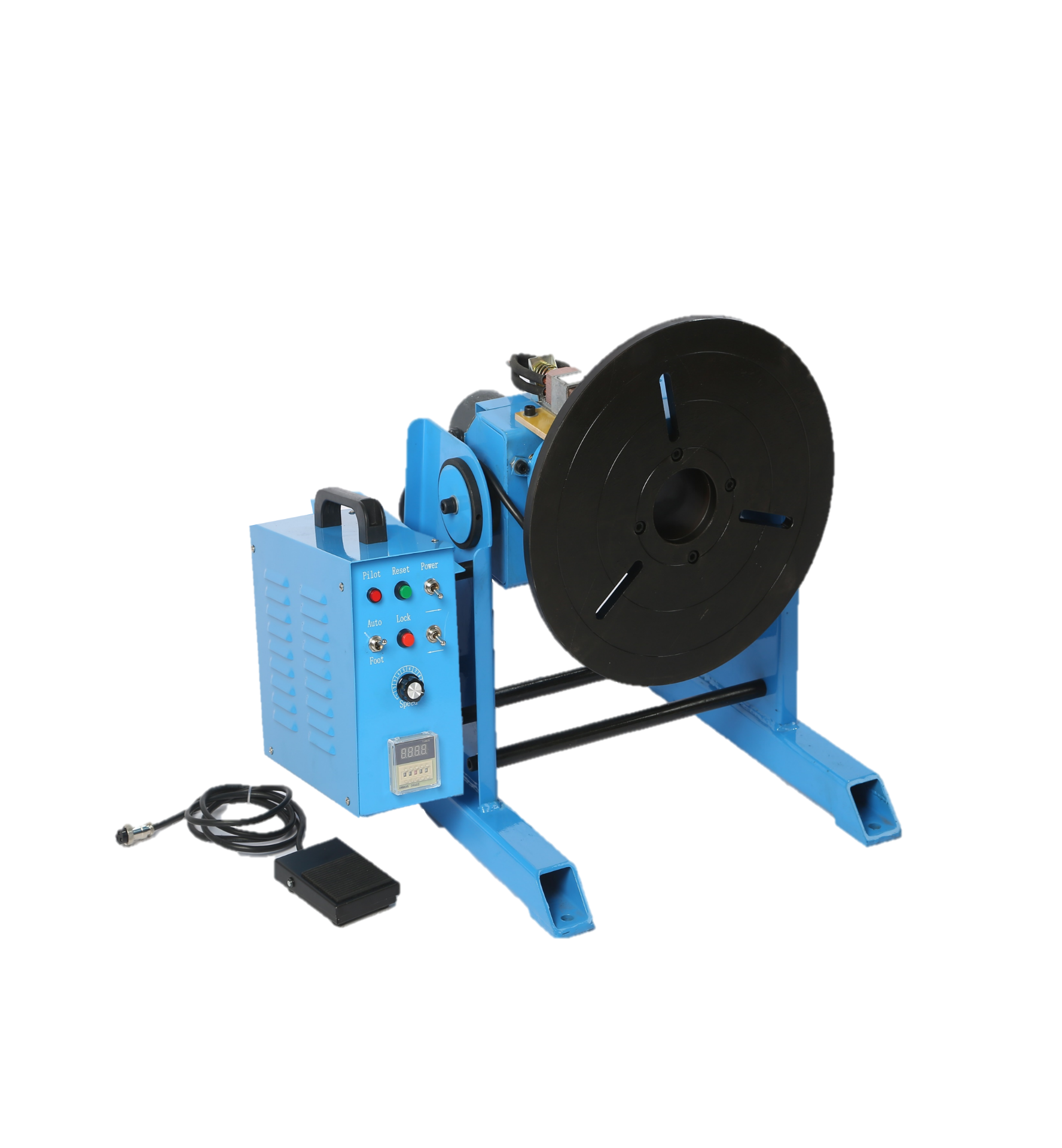

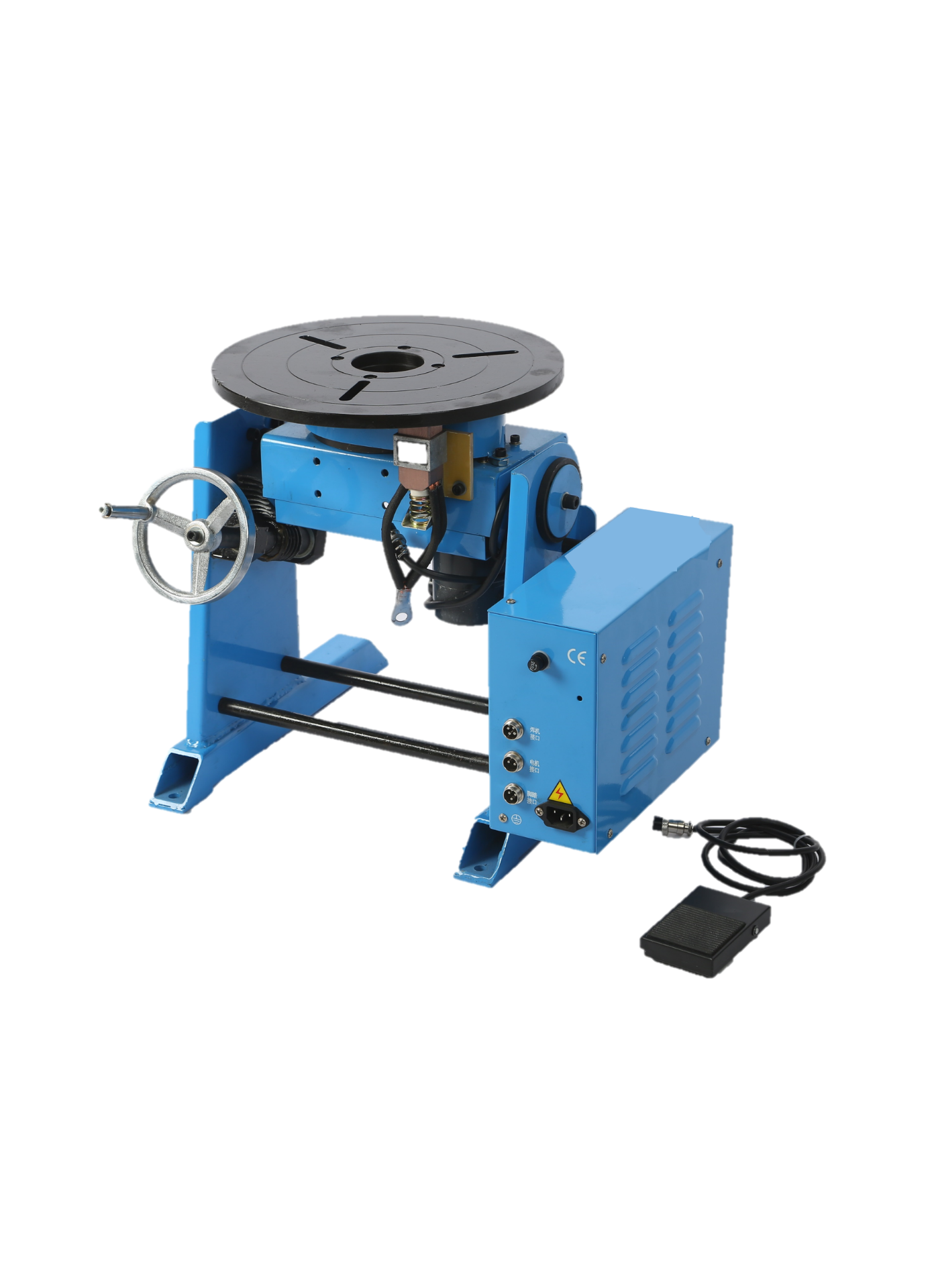

Promax HD200 Welding Positioner, Supplied with Control Box & Foot Control

This product may not be available.

Please enquire below.


Overview

Product Overview

Promax HD200 Welding Positioner

Key Features

  • The HD-200 has the function to self-lock and the worktable can be turned between 0-90deg
  • 200kg vertical and 100kg horizontal welds
  • Rotate speed: 0-7r/min
  • The HD-200 Welding Positioner table has centre through hole which is convenient for pipes to be clamped and positioned and will improve accuracy and quality of welding.
  • Special anti-electromagnetic design reduces the high frequency interference of TIG welding and can improve the accuracy and quality of welding

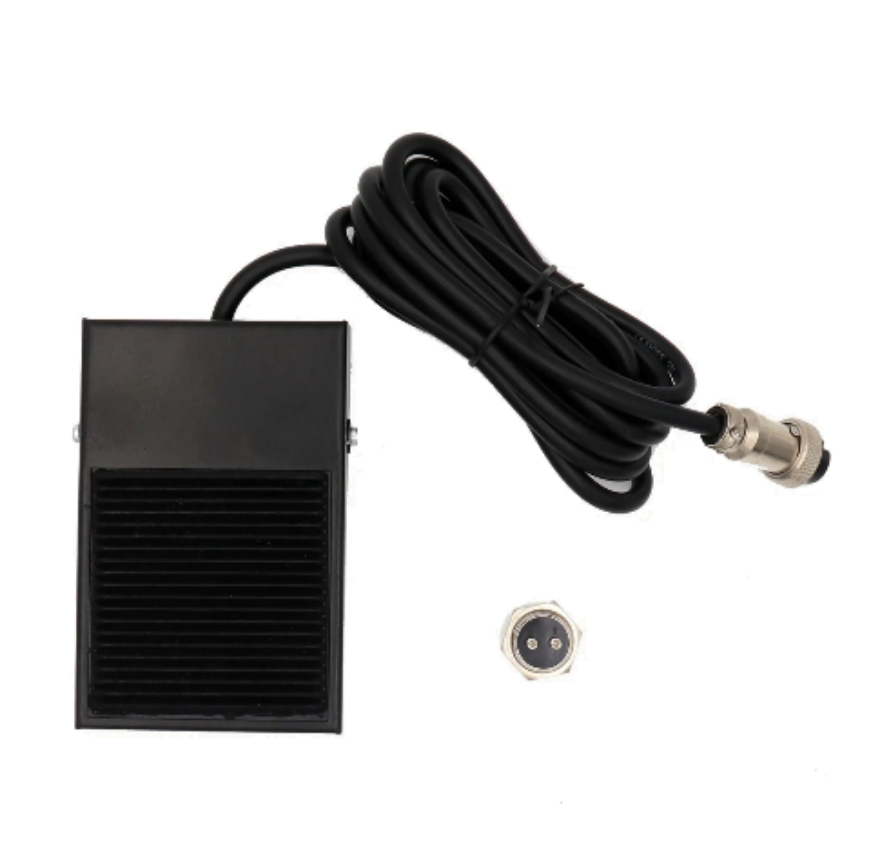

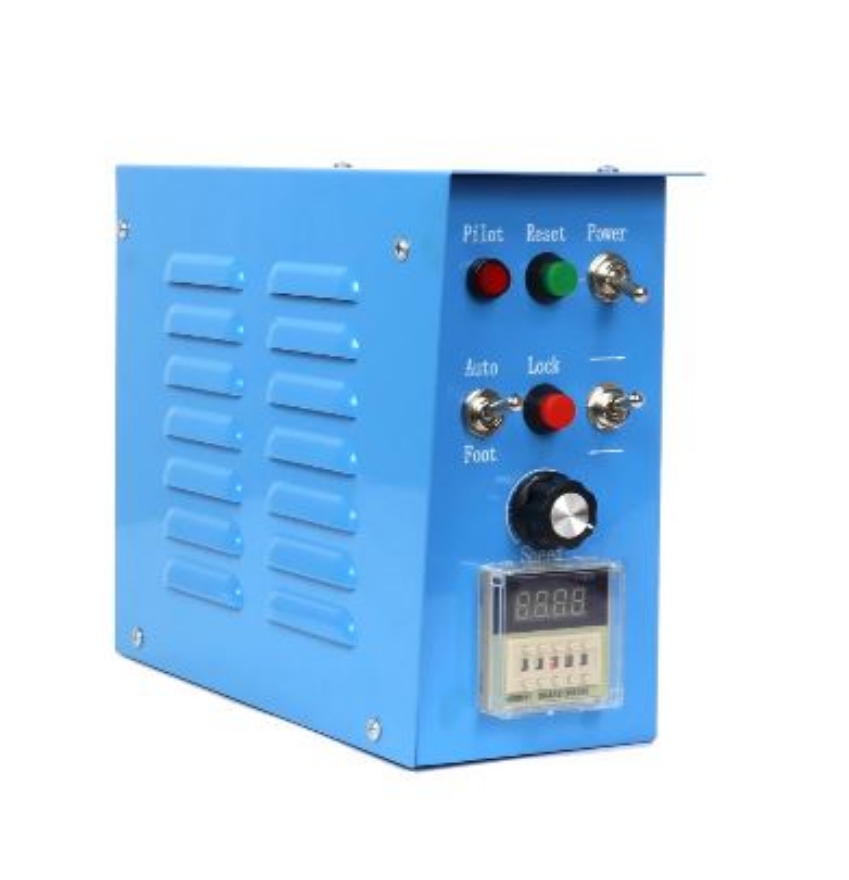

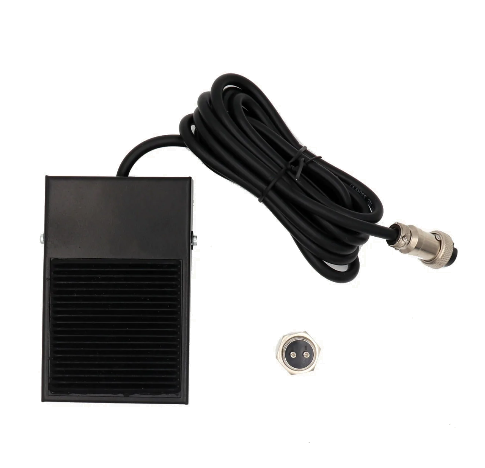

  • Supplied with control box and foot control
  • The welding chuck (KD400) and adjustable welding gun support can be furnished to fix the position of the welding torch.
  • PLEASE NOTE: This is the base unit only - does not include Chucks, Extension Jaws or Torch Mounting Arm. Please contact us for information and pricing on these additional extras.
Overview

Specifications

Model / HD200
Power Input / AC220V 50HZ
Drive Motor / DC220V 150W
Rated Load / 200kg
Table Diam / 400mm
Table Height / 520mm
Tilting Angle / 0-90°
Rotate Speed / 0-7r/min
Centre Hole / 145mm
Weight / 76kg

Documents & Downloads

Spare Parts List
Instruction Manual
Safety Data Sheet
Your Questions Answered

FAQ's

What is the maximum load capacity of the Promax HD200 Welding Positioner?

How fast can the table rotate?

What is the benefit of the anti-electromagnetic design in the HD200?

What is the tilting range of the worktable?

Does the HD200 come with additional accessories like welding chucks or a torch mounting arm?

Is the HD200 easy to control?
