Promax TDG50 Plus Line Borer
Promax TDG50 Plus Line Borer
Be the first to review this product
Free shipping on orders over $50
Promax
/
SKU:
35378
TGD50-Plus Single-Phase Line Boring Machine for 38-300mm. Combine with the BW350 Auto Bore Welder for the ultimate Line Boring Package.
Quick Enquiry
Add to Wishlist
Overview
Specifications
FAQs
Reviews
Related Products
Ask a Question
Overview
Product Overview
Promax TDG50 Plus Line Borer
Key Features
280mm boring stroke
Fit for boring from 38-300mm
Mechanical feed, feed rate per revolution: 0-0.5mm/rev
3:1 gear reduction ratio for increased torque
Adjustable limit block

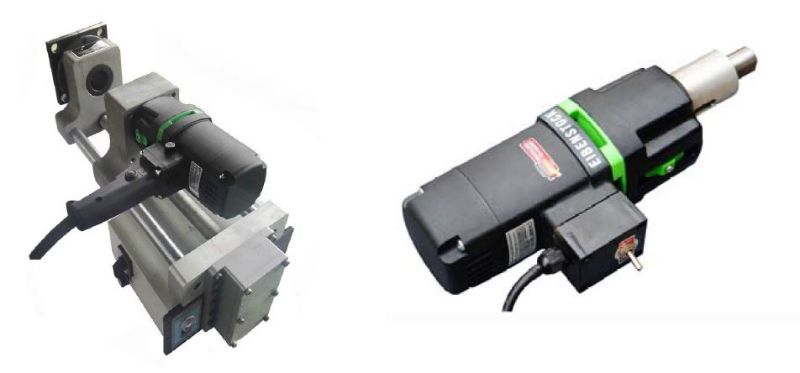

Single phase, 230V, 50/60Hz, 1800W electric drive motor
2 bar speeds: 0-83 and 83-150 RPM
Chrome plated boring bar
Drive gearbox weight: 9kg
Drive motor weight: 4.6kg
Drive motor made in Germany
Functions include: Conventional boring, line boring, drilling, trepanning, threading, facing and grooving

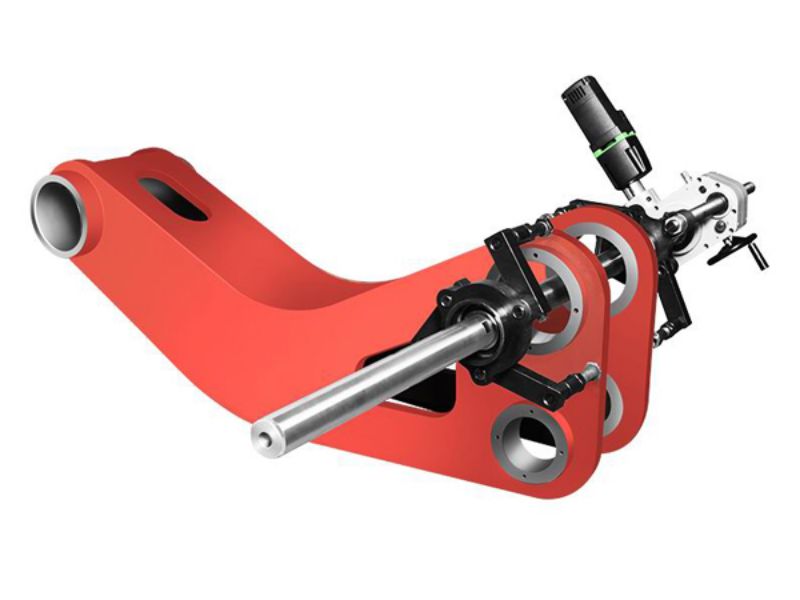

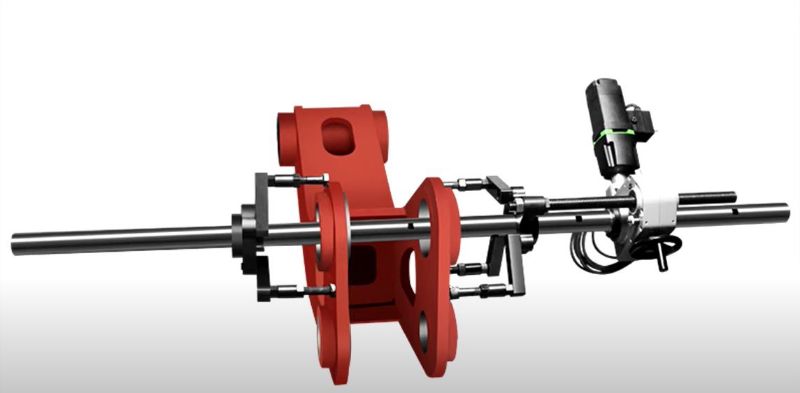

Typical applications include: Heavy equipment repair, bridge building, turbine coupling boring, engine block repair, large fab bore alignment

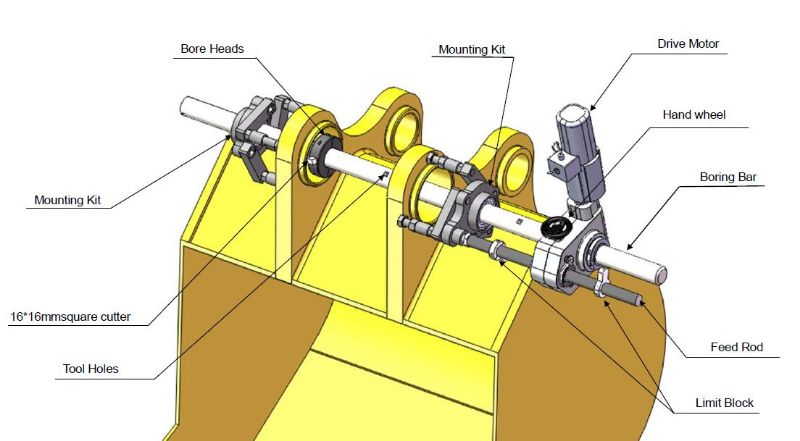

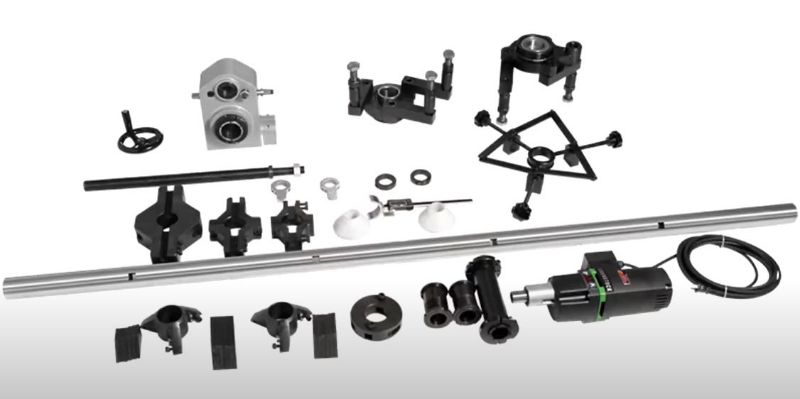

Package includes: Boring bar 50x1820mm, boring bar 35x1200mm, drive gearbox, hand wheel, feed rod, limit block, screw locking nut, power unit, mounting options, reduction sleeve, rapid centering system, bore heads, bore measuring tool, 16x16mm square cutter, 12x12mm square cutter, tool pack, carry case
12 month warranty
Resources
Downloads
Technical Data Sheet
Spare Parts List
Instruction Manual
Safety Data Sheet
