Rotabroach Annular Cutter Pilot Pins

Rotabroach Annular Cutter Pilot Pins

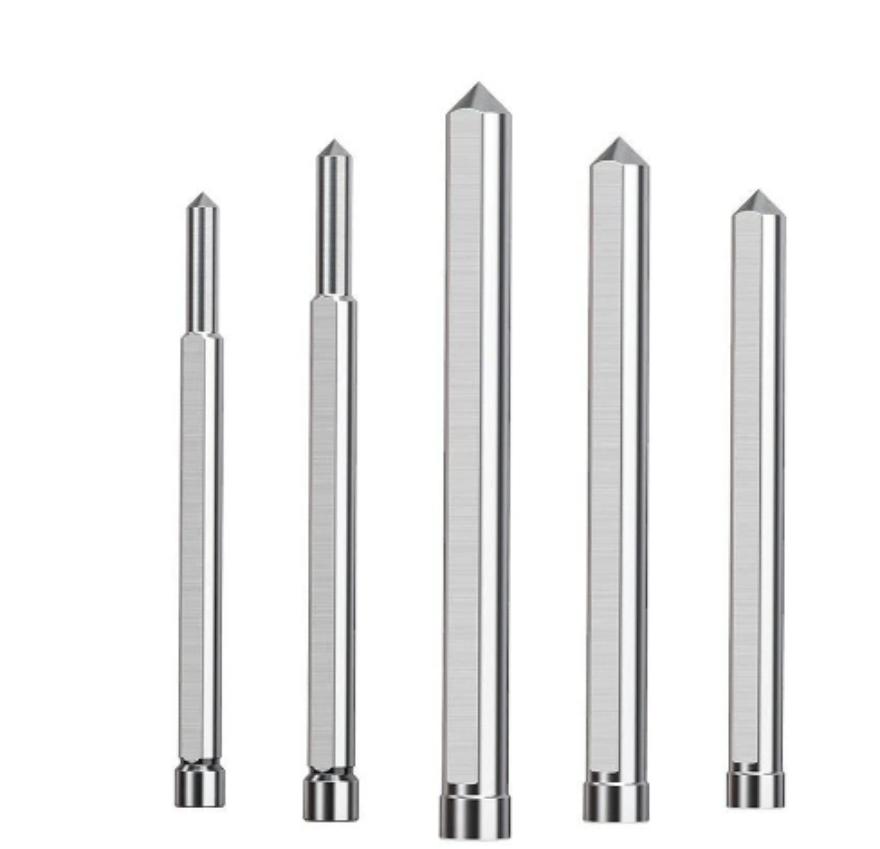

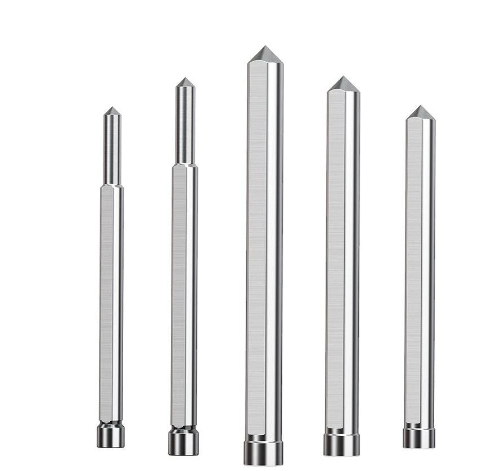

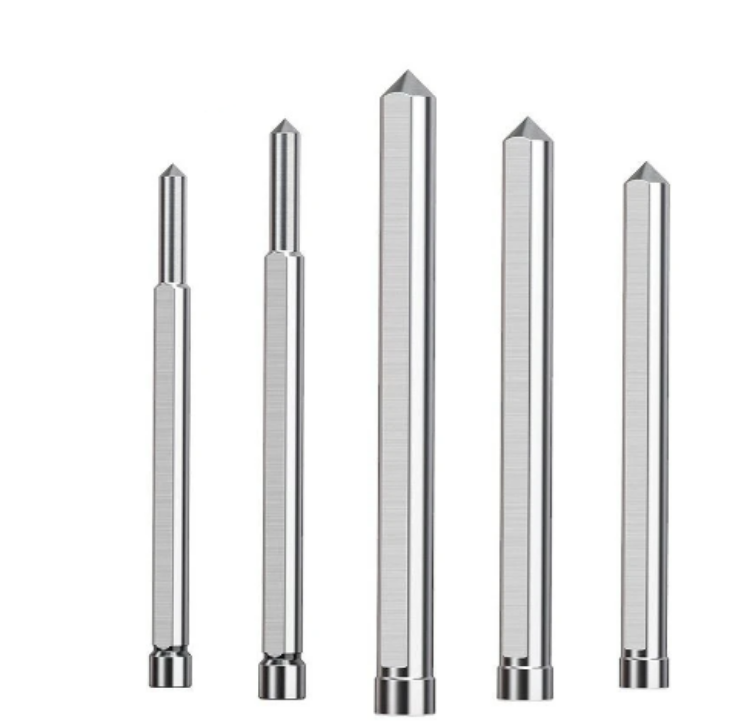

A selection of pilot pins from Rotabroach, designed for use multi-tooth milling cutters. These pilot pins locate into pre-drilled pilot holes to ensure positional accuracy of the cutter. Pilot pin also performs another function as it retracts in the arbor allowing the coolant flow inside the cutting teeth to extend the tool life. Various length and size pins are available.

Key Features

- Guides the cutter

- Ensure positional accuracy

- Extend the tool life

- Options available below:

SRA3057 - 11-12mm Pilot Pin for HSS 25mm Series Cutters

SRA25 - 13-52mm Pilot Pin for HSS 25mm Series Cutters

RA3013 - 12mm Pilot Pin for HSS 50mm Series Cutters

SRA50 - 13-52mm Pilot Pin for HSS 50mm Series Cutters

SRA90 - 12-17mm Pilot Pin for TCT 35mm Series Cutters

RA3089 - 18-52mm Pilot Pin for TCT 35mm Series Cutters

SRA106 - 12-17mm Pilot Pin for TCT 50mm Series Cutters

RA356 - 18-65mm Pilot Pin for TCT 50mm Series Cutters
