Strata Advance Cut 65 Plasma Cutter

Brand: Strata
SKU: 17394
Strata Advance Cut 65 Plasma Cutter
$ 2,295 .00 excl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

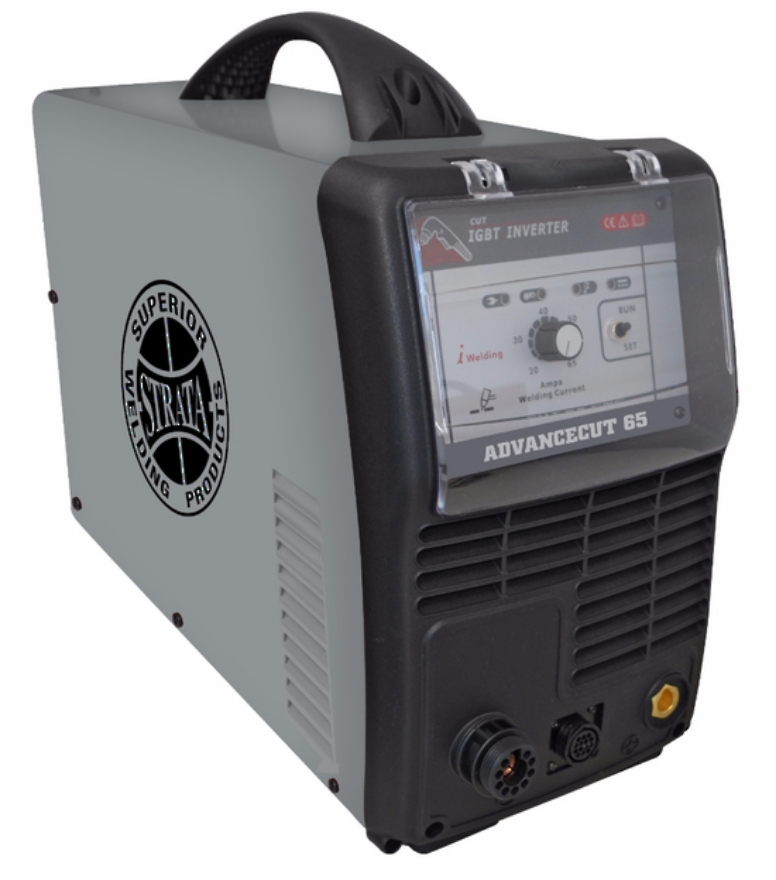

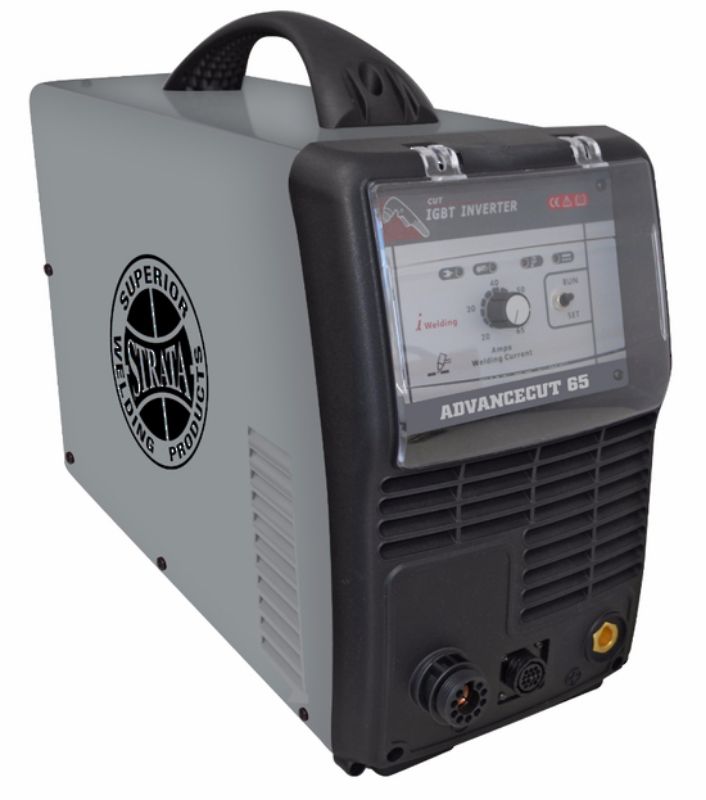

Strata Advance Cut 65 Plasma Cutter

AdvanceCut65 is a 65A 3-Phase Inverter Plasma Cutter. Suitable for standard hand cutting or CNC cutting with a machine torch. An excellent machine for industrial engineering workshops.
The powerful 3 phase Plasma Cutter in a tough compact package. With IGBT technology and the capability of severing
up to 35mm carbon steel with CNC interface capability, look no further than the ADVANCECUT 35 for serious industrial
cutting solutions
  • IGBT module inverter technology for smooth, stable output, increased reliability
  • Microprocessor control system for superior & dynamic arc characteristics
  • CNC interface connection
  • Protected external air regulator with water trap/ filter for easy adjustment & servicing
  • Euro connect torch system with safe & robust connection to machine
  • Advanced strata plasma torch with european torch head for superior cutting performance and consumable life
  • Non HF arc starting system for increased reliability and low EMF pollution
  • Automatic pilot arc control system for increased cutting capability, especially for discontinuous cutting
  • Extreme stress tested to 550v in production for rugged reliability.
  • Strong environmental protection againt moisture, salt spray and corrosion
  • High quality & over specified electronic components for durability & reliability
  • Intelligent protection system protects plasma torch from damage
  • Air flow manual activation switch to set & test air pressure.

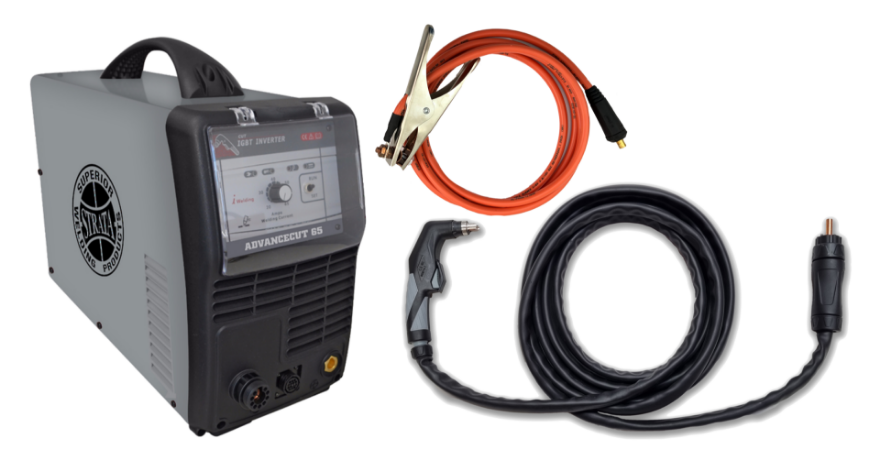

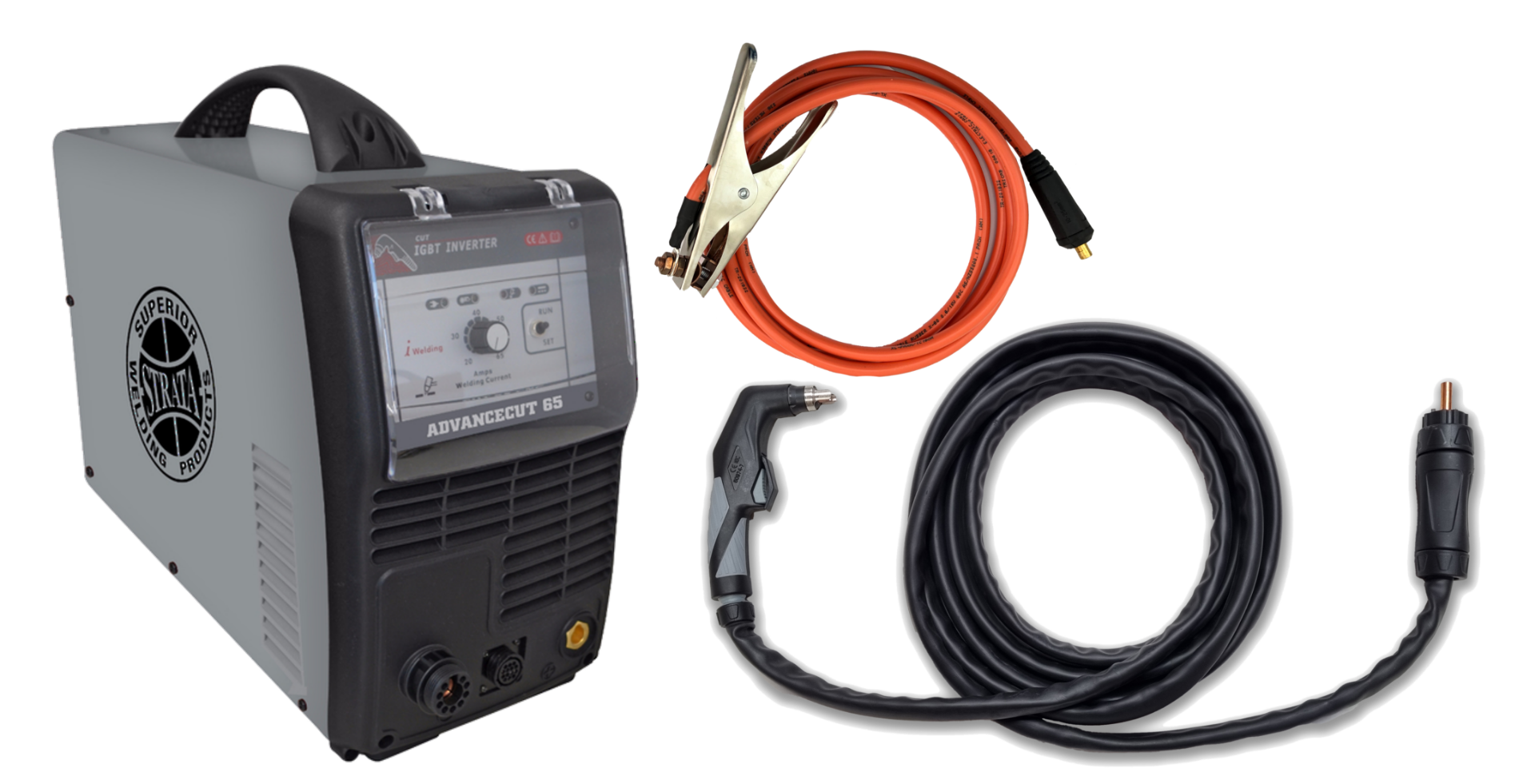

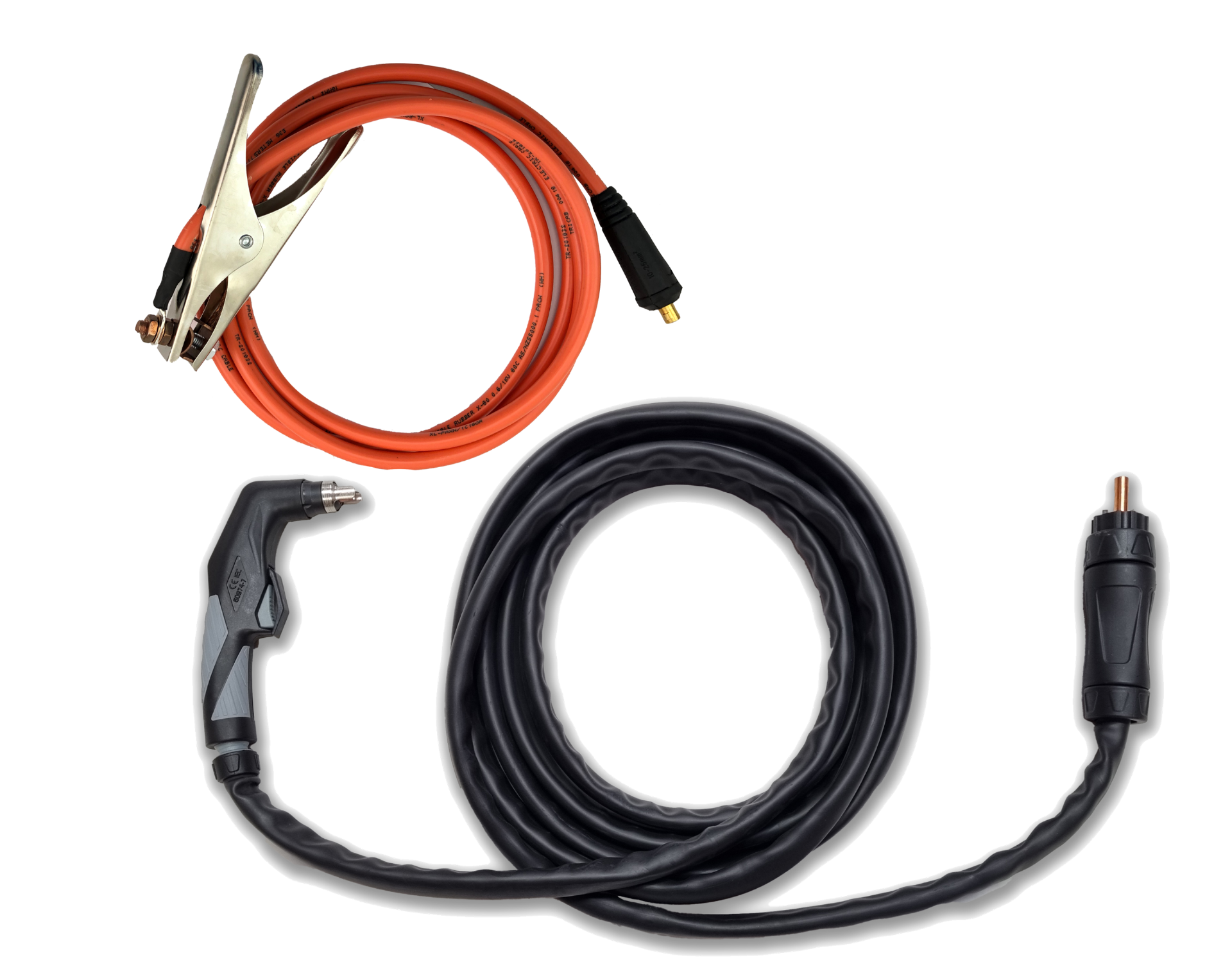

Accessories/ Contents
  • 3m Earth Lead with heavy duty earth clamp
  • Strata XT4000 PT-60 6m plasma torch

Model #ADVANCECUT65

Specifications

Products specifications
Dimension640x240x445
Weight24kg
Input Power Supply400V AC 20A 50Hz 3 Ph
Max input Current18A
Generator Capacity12.3KVA
Current Output20-65A
Duty Cycle100% @ 61A
Cut CapacitySteel 25mm Alum 20mm
Severance CapacitySteel35mm
Compressed Air Req110L/min 5bar
StandardsEN60974-1:2012
Max input Current18A

Strata Advance Cut 65 Plasma Cutter

AdvanceCut65 is a 65A 3-Phase Inverter Plasma Cutter. Suitable for standard hand cutting or CNC cutting with a machine torch. An excellent machine for industrial engineering workshops.
The powerful 3 phase Plasma Cutter in a tough compact package. With IGBT technology and the capability of severing
up to 35mm carbon steel with CNC interface capability, look no further than the ADVANCECUT 35 for serious industrial
cutting solutions
  • IGBT module inverter technology for smooth, stable output, increased reliability
  • Microprocessor control system for superior & dynamic arc characteristics
  • CNC interface connection
  • Protected external air regulator with water trap/ filter for easy adjustment & servicing
  • Euro connect torch system with safe & robust connection to machine
  • Advanced strata plasma torch with european torch head for superior cutting performance and consumable life
  • Non HF arc starting system for increased reliability and low EMF pollution
  • Automatic pilot arc control system for increased cutting capability, especially for discontinuous cutting
  • Extreme stress tested to 550v in production for rugged reliability.
  • Strong environmental protection againt moisture, salt spray and corrosion
  • High quality & over specified electronic components for durability & reliability
  • Intelligent protection system protects plasma torch from damage
  • Air flow manual activation switch to set & test air pressure.
Accessories/ Contents
  • 3m Earth Lead with heavy duty earth clamp
  • Strata XT4000 PT-60 6m plasma torch

Model #ADVANCECUT65

Products specifications
Dimension640x240x445
Weight24kg
Input Power Supply400V AC 20A 50Hz 3 Ph
Max input Current18A
Generator Capacity12.3KVA
Current Output20-65A
Duty Cycle100% @ 61A
Cut CapacitySteel 25mm Alum 20mm
Severance CapacitySteel35mm
Compressed Air Req110L/min 5bar
StandardsEN60974-1:2012
Max input Current18A
