Strata AdvanceCut45 40A Inverter Plasma Cutter

Brand: Strata
SKU: 22118
$ 1,780 .00
$ 2,047.00 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

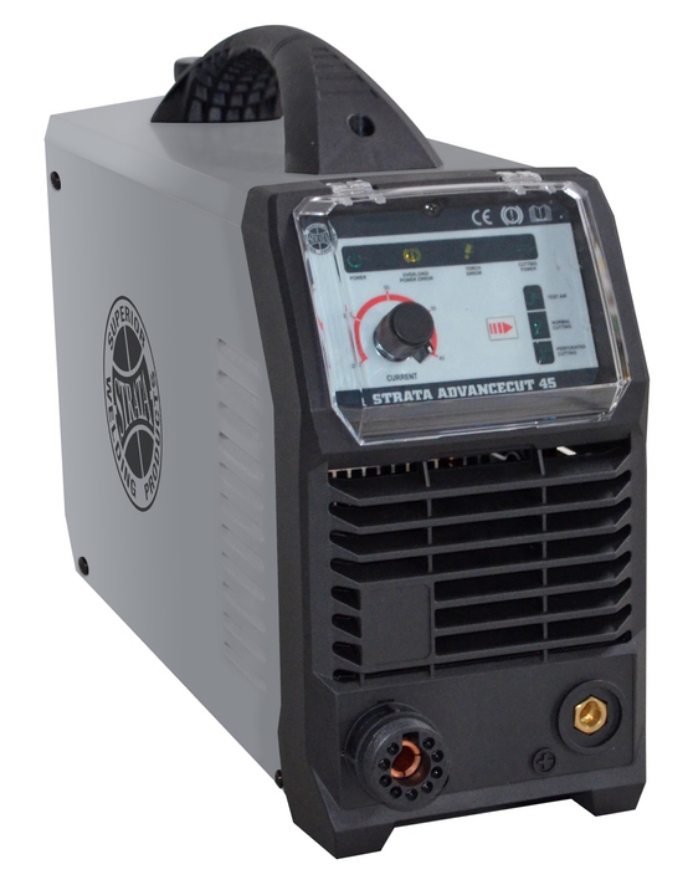

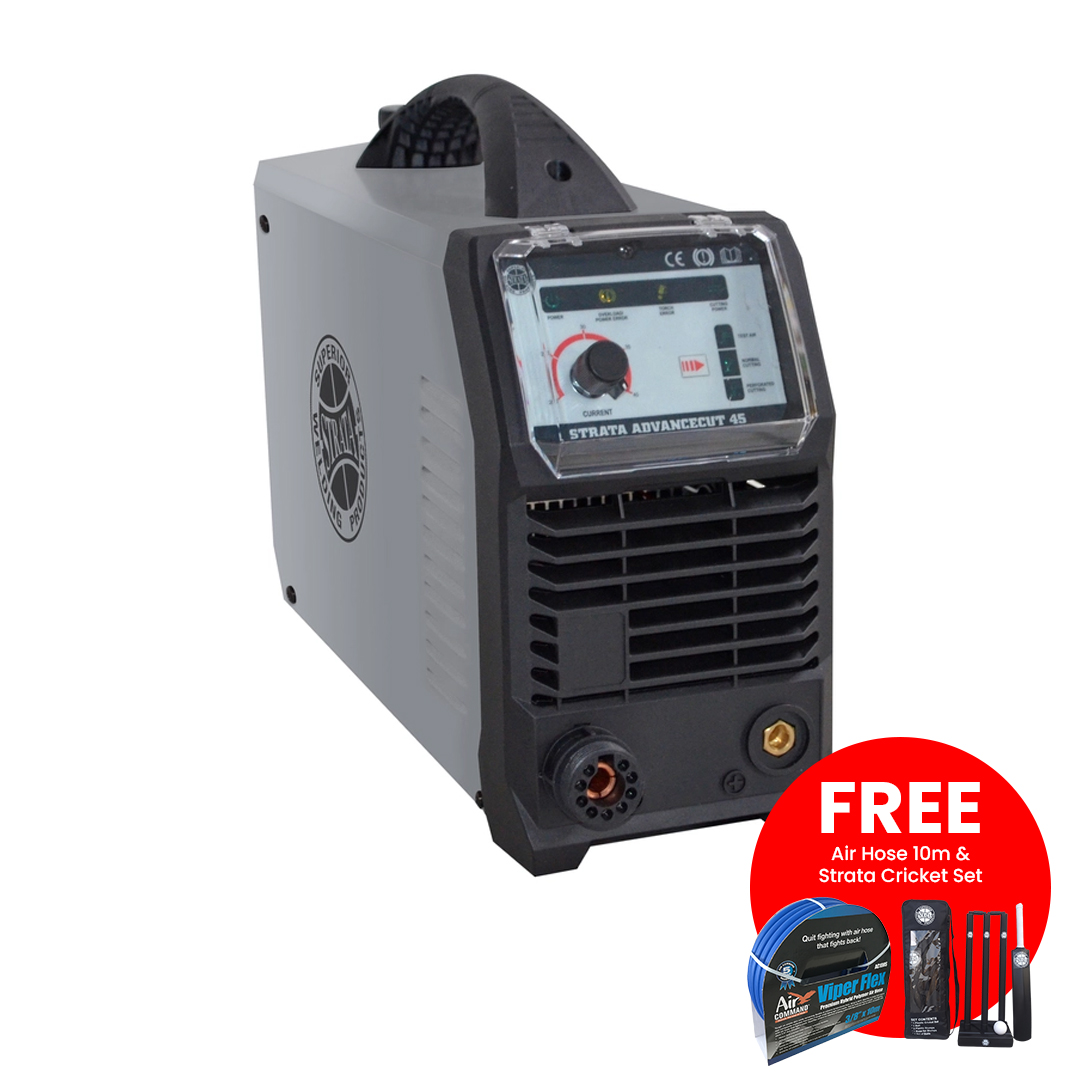

Strata AdvanceCut45 40A Inverter Plasma Cutter

Sever cut up to 19mm of carbon steel with intelligent machine and plasma torch protection system. The ADVANCECUT45 offers a powerful machine in a compact package - ideal for the serious industrial user.

Key Features

- IGBT Inverter technology for smooth & stable output and increased reliability

- Microprocessor control system with superior & dynamic arc characteristics

- Increased duty cycle and energy efficiency with active PFC technology

- Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads

- Protected external air regulator with water trap/filter enabling easy adjustment and servicing

- Safe and robust connection to machine with Euro Connect torch system

- Advanced Strata plasma torch with European torch head enables superior cutting performance and long consumable life

- Non-HF arc starting system increases reliability and lowers EMF pollution

- Auto pilot arc control increases cutting control, especially for discontinuous cutting

- Lightweight and compact design - ideal for portable applications

- Extreme stress tested in production up to 440V, ensuring rugged reliability

- Industrial IP23 casing with front panel protection, resists damage, moisture and corrosion

- Durable and reliable with high quality & over specified electronic components

- Intelligent plasma torch protection system protects torch damage from incorrect air pressure, consumables not in place, excessive pilot use etc.

- Intelligent machine protection system with temperature, voltage and current sensors for increased reliability & safety

- Designed to work with generator power supply with protection from power surges

- Air flow manual activation switch sets and tests air pressure without triggering the torch

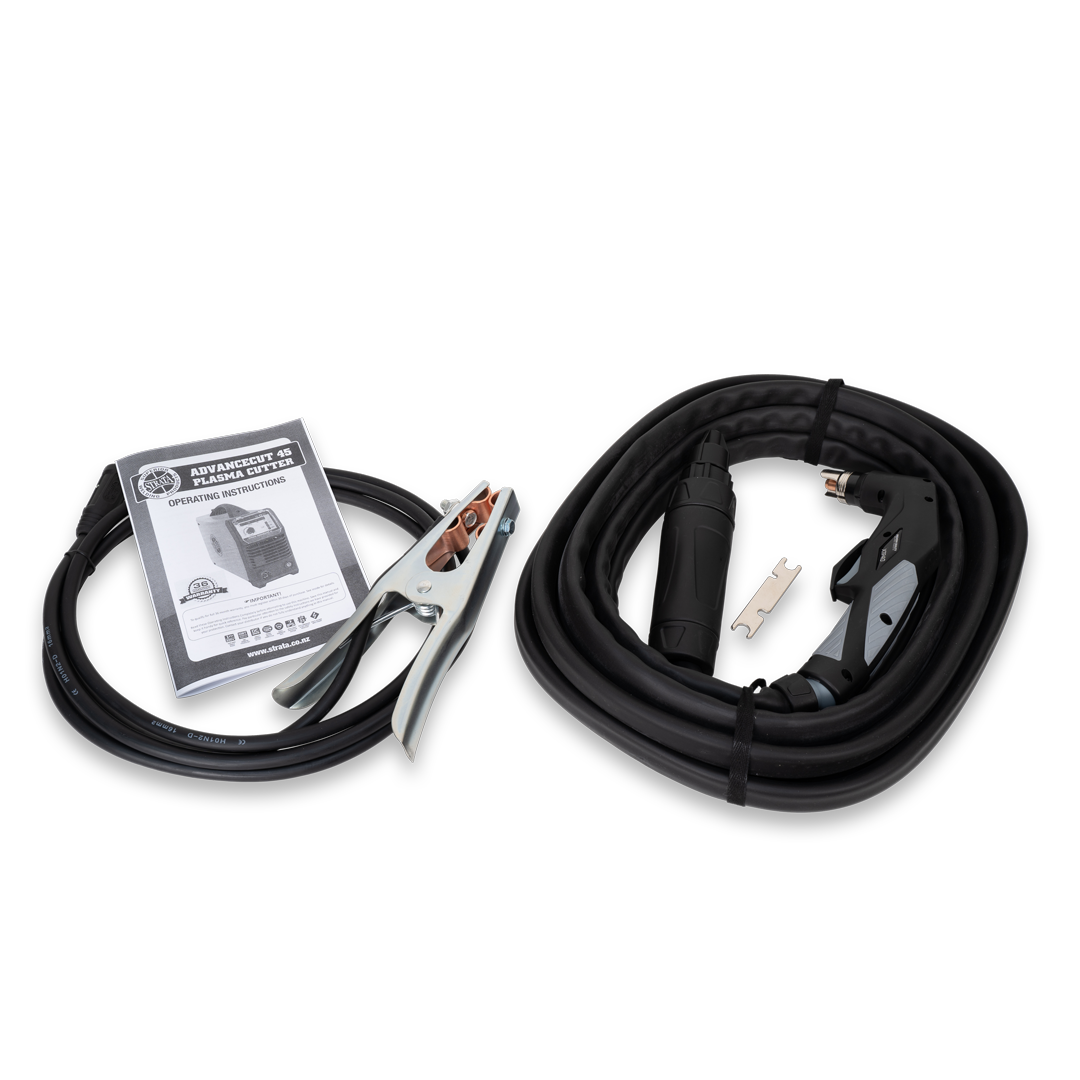

- Includes: 3M Earth Lead with Heavy Duty Earth Clamp and Strata XT4000 PT-60 6M Plasma Torch

Specifications

Products specifications
Dimensions510 x 146 x 278mm
Weight8kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance90V-275V AC
Maximum Input Current21A
Generator Capacity6kVA
Plasma Output Current20A - 40A
Duty Cycle40A@44%, 30A@100%
Plasma Production Cut Capacity Carbon Steel16mm
Plasma Production Cut Capacity Aluminium12mm
Plasma Severance Cut Capacity Carbon Steel16mm
Compressed Air Requirement110 l/min 5bar
Insulation ClassIP23
StandardsEN60974-1:2012
Power Efficiency80%
Power Factor0.99
Warranty36 months* with product registration
