Strata AdvanceCut75 65A CNC Inverter Plasma Cutter Machine Torch Package

Brand: Strata
Style: Strata
SKU: 37552
Qualifies for Free Shipping
AdvanceCut75 Package Including 12M Machine Torch
$ 2,995 .00
$ 3,444.25 Incl GST
Strata AdvanceCut75 65A CNC Inverter Plasma Cutter Machine Torch Package

Strata AdvanceCut75 65A CNC Inverter Plasma Cutter Machine Torch Package

Now only:
$ 2,995 .00
$ 3,444.25 Incl GST
Product Overview
Learning Center
Product Overview

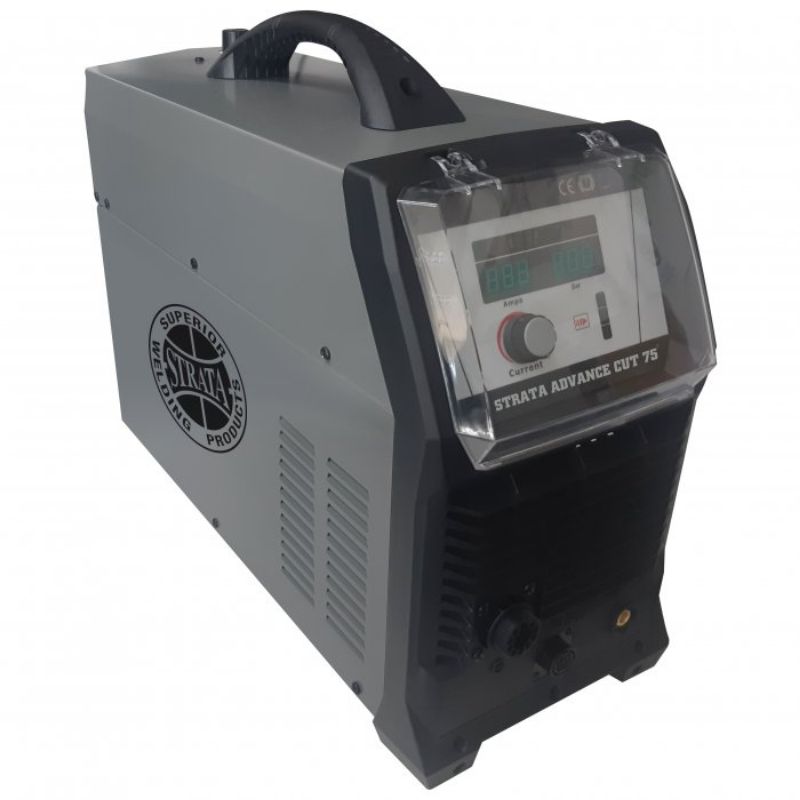

Strata AdvanceCut75 65A CNC Inverter Plasma Cutter Machine Torch Package

The powerful 3 phase Plasma Cutter in a tough compact package. With IGBT technology and the capability of severing up to 35mm carbon steel with CNC interface capability, look no further than the ADVANCECUT 75 for serious industrial cutting solutions.

Key Features

- IGBT module inverter technology for smooth & stable output, increased reliability, high duty cycle

- Heavy Duty Italian TH-125 machinee torch for superior cutting performance and consumable life

- Designed for operating with automated CNC cutting equipment

- Pilot Arc Control System for increased cutting capability, especially for discontinuous cutting

- Protected external air regulator with water trap/ filter for easy adjustment & serviceability

- Safe & robust connection to machine with Euro Connect torch system

- Increased reliability and low EMF pollution with non HF arc starting system

- Intelligent plasma torch protection system protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.

- Lightweight & compact design, ideal for portable applications

- Intelligent machine protection system for increased reliability & safety

- Extreme stress testing up to 550V in production for rugged reliability.

- Protected against moisture, salt spray and corrosion

- Machine automatically shuts down if power supply phase loss occurs, to prevent damage.

- Designed to work with generator power supply and protect from power surges.

- Industrial damage resistant casing with front panel protection

- Set & test air pressure without the need to trigger the torch with air flow manual activation switch

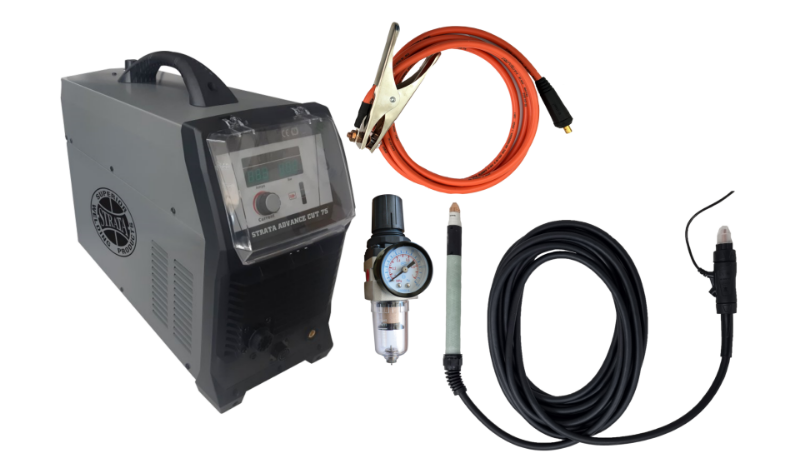

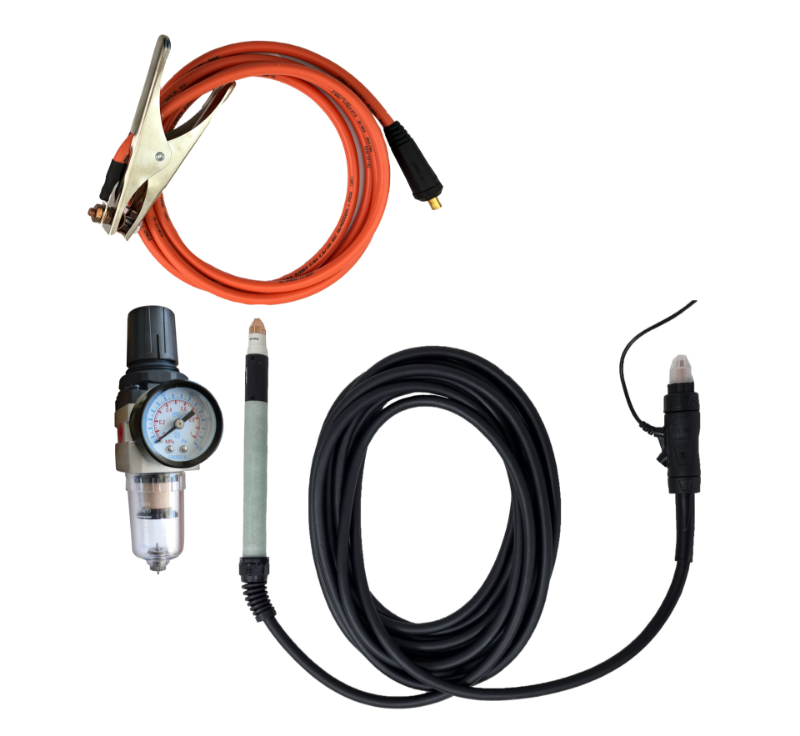

- Supplied with 3M Earth Lead , Strata TM125 Machine Plasma Torch 6M & Air Regulator/Water Trap


Products specifications
Dimensions640 x 240 x 445mm
Input Power Supply400V AC 3 Phase 20A 50/60Hz
Input Power Tolerance+/-10%
Maximum Input Current18A
Generator Capacity12.3KVA
Plasma Output Current20A - 65A
Duty Cycle65A@90%, 61A@100%
Plasma Production Cut Capacity Carbon Steel25mm
Plasma Production Cut Capacity Aluminium20mm
Plasma Severance Cut Capacity Carbon Steel35mm
Insulation ClassIP23
Warranty36 months* with product registration
Compressed Air Requirement295 l/min 6 Bar
