Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder Package

Brand: Strata
SKU: 22111
$ 1,995 .00
$ 2,294.25 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

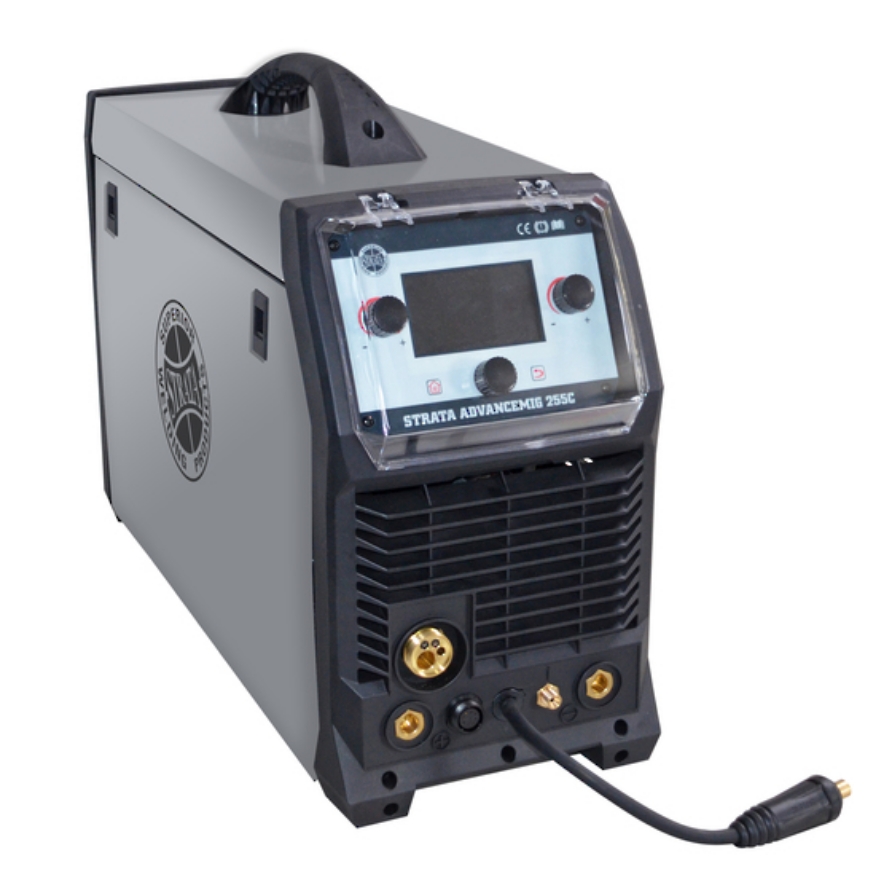

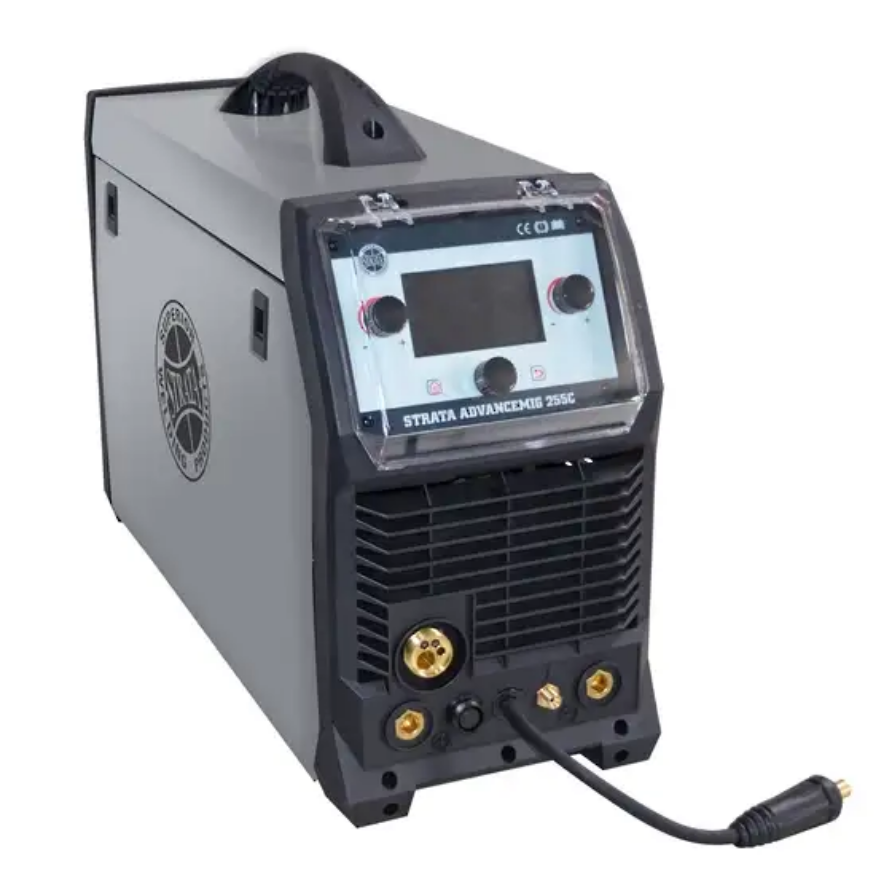

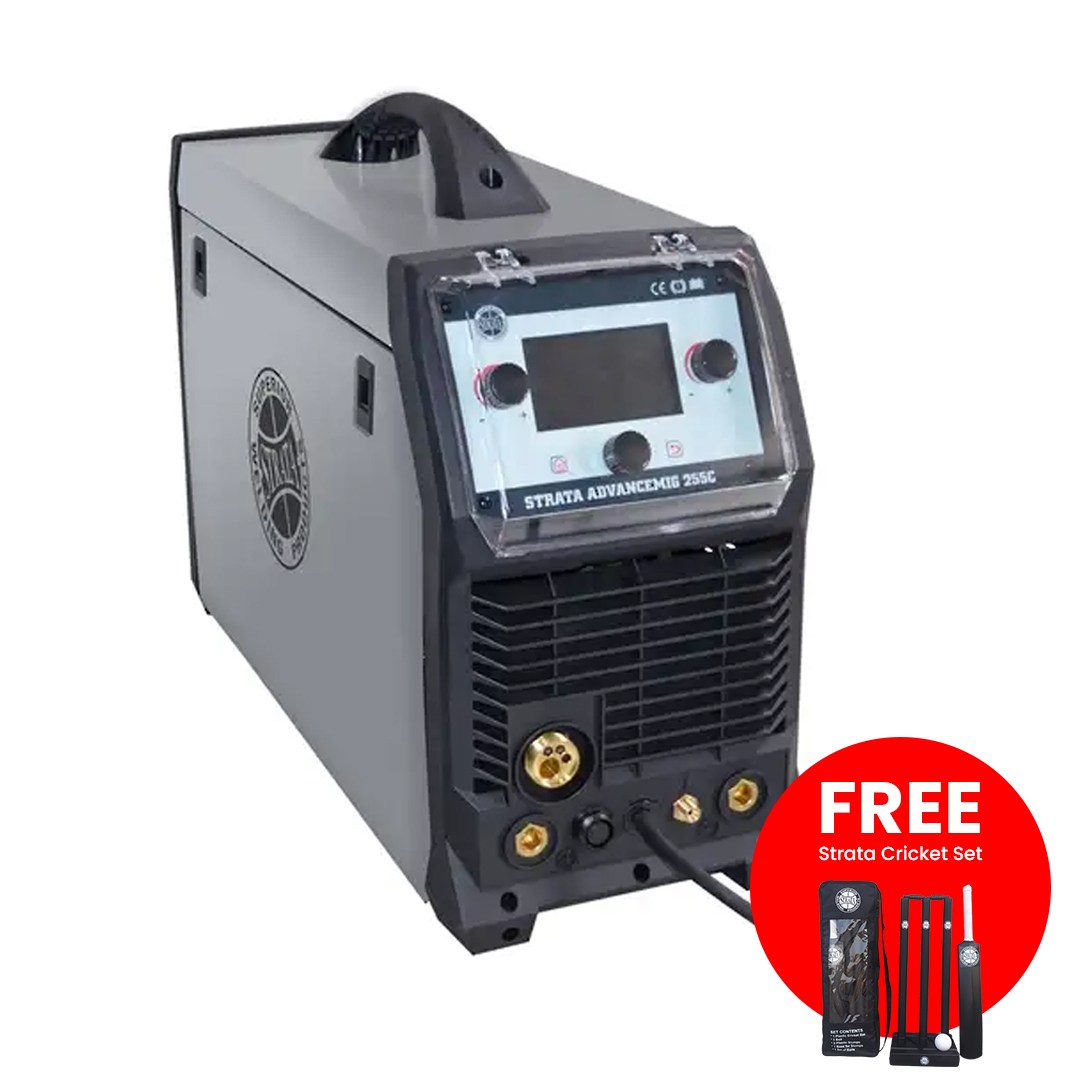

Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder Package

With IGBT and PFC technology the ADVANCEMIG 255C is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.

Key Features

- Digital microprocessor control system with superior & dynamic arc characteristics

- Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads

- Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters

- Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results

- Lift TIG operation with down slope and remote current control ability (optional torch available)

- 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed

- MIG waveform (inductance) gives good control of the arc for smooth welding results

- Lightweight & compact design ideal for portable applications

- Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety

- Designed to work with generator power supply with protection from power surges.

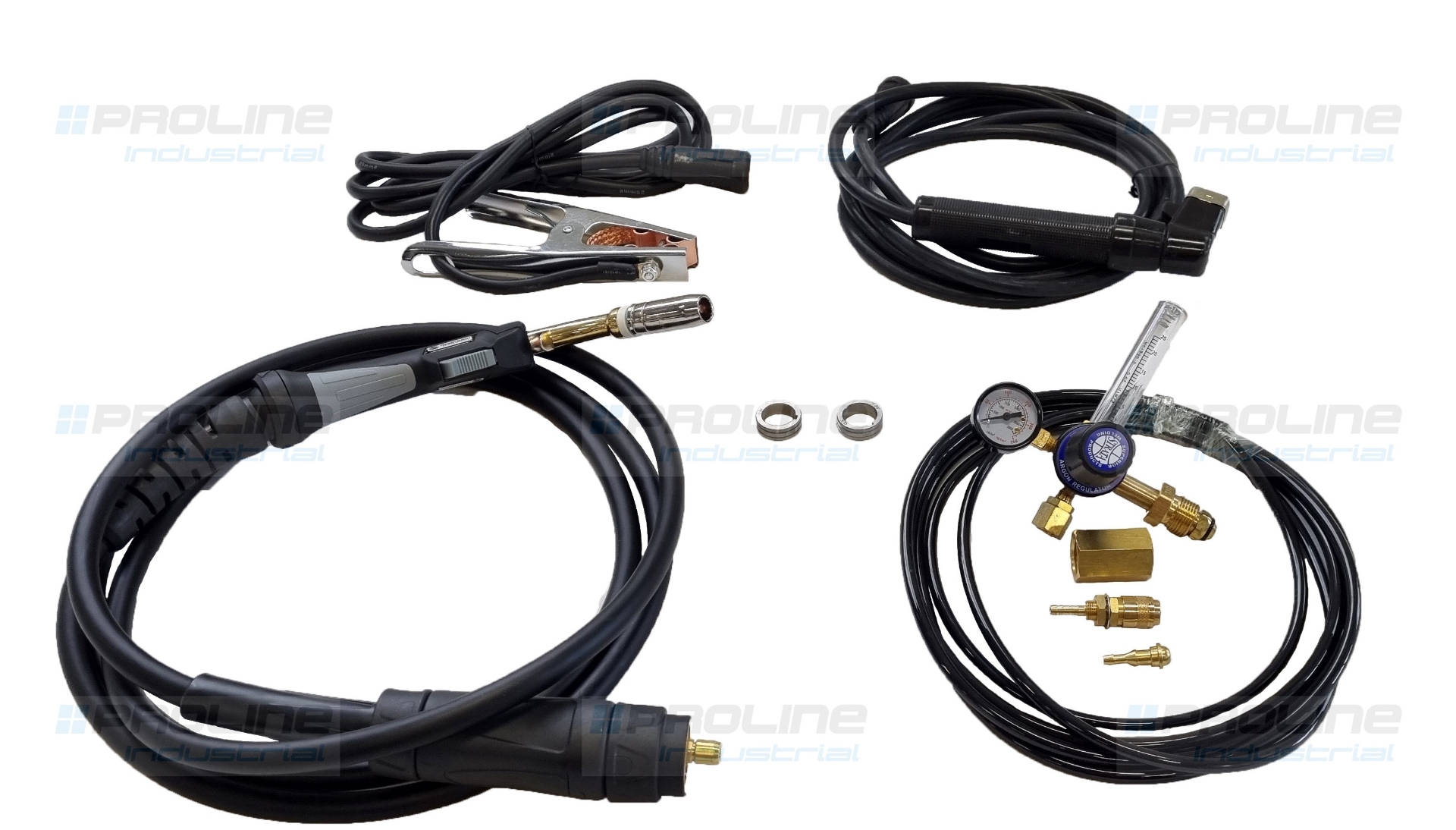

- Includes: 3M Earth Lead with Heavy Duty clamp, 4M Arc Lead with Heavy Duty Twist Lock Electrode Holder, 4M MB25 Mig Torch, 2 Stage Flowmeter, Argon Gas Regulator, Adaptor, 4M Gas Hose, Gas Inlet Quick Connector, Hose Clamps, Mig Drive Rollers

Product Video

Specifications

Products specifications
Dimensions680x230x445mm
Weight25kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance90V-275V AC
Maximum Input Current41A
Generator Capacity10kVA
MIG Output Voltage10V - 30V
MIG Output Current25A - 250A
MIG Duty Cycle250A@16%, 195A@60%, 150A@100%
MIG Drive Rollers0.6/0.8/0.9/1.0mm V Groove, Knurled 0.8/0.9/1.0mm, U Groove 0.8/1.0mm
Spool SizeD200/D300 5kg/15kg
MMA Current Output10A - 250A
MMA O/C Voltage65V
MMA Duty Cycle250A@13% 180A@60% 140A@100%
Insulation ClassIP23
StandardsEN60974-1:2012
MMA Rod Size1.6 - 5.0mm
Warranty36 months* with product registration
Power Efficiency80%
Power Factor0.99

Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder Package

With IGBT and PFC technology the ADVANCEMIG 255C is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.

Key Features

- Digital microprocessor control system with superior & dynamic arc characteristics

- Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads

- Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters

- Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results

- Lift TIG operation with down slope and remote current control ability (optional torch available)

- 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed

- MIG waveform (inductance) gives good control of the arc for smooth welding results

- Lightweight & compact design ideal for portable applications

- Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety

- Designed to work with generator power supply with protection from power surges.

- Includes: 3M Earth Lead with Heavy Duty clamp, 4M Arc Lead with Heavy Duty Twist Lock Electrode Holder, 4M MB25 Mig Torch, 2 Stage Flowmeter, Argon Gas Regulator, Adaptor, 4M Gas Hose, Gas Inlet Quick Connector, Hose Clamps, Mig Drive Rollers

Products specifications
Dimensions680x230x445mm
Weight25kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance90V-275V AC
Maximum Input Current41A
Generator Capacity10kVA
MIG Output Voltage10V - 30V
MIG Output Current25A - 250A
MIG Duty Cycle250A@16%, 195A@60%, 150A@100%
MIG Drive Rollers0.6/0.8/0.9/1.0mm V Groove, Knurled 0.8/0.9/1.0mm, U Groove 0.8/1.0mm
Spool SizeD200/D300 5kg/15kg
MMA Current Output10A - 250A
MMA O/C Voltage65V
MMA Duty Cycle250A@13% 180A@60% 140A@100%
Insulation ClassIP23
StandardsEN60974-1:2012
MMA Rod Size1.6 - 5.0mm
Warranty36 months* with product registration
Power Efficiency80%
Power Factor0.99
