    Strata Air Cooled 17388

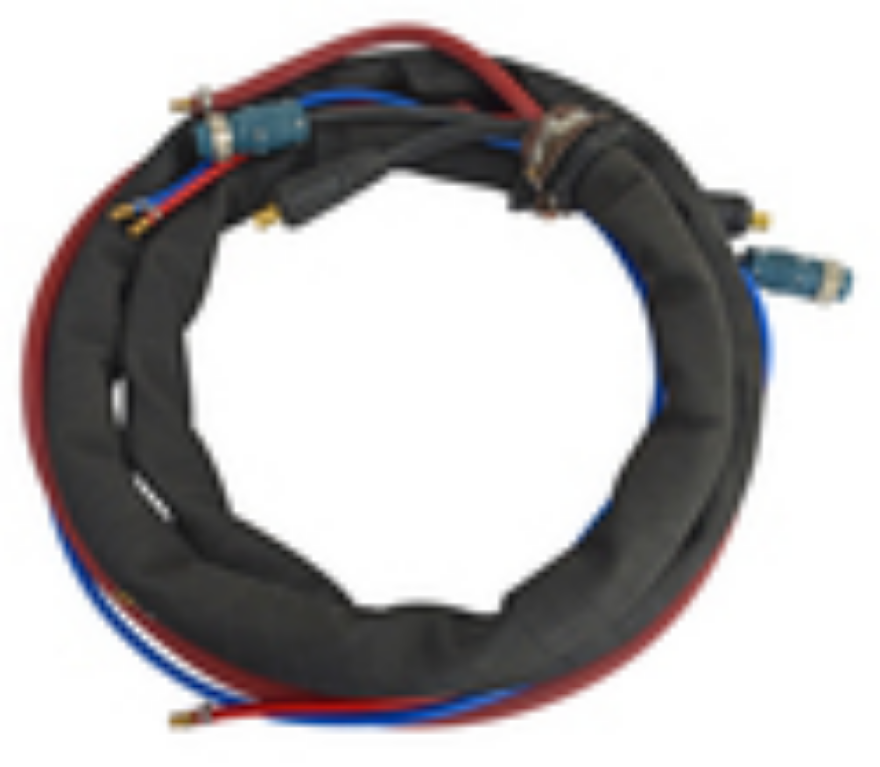

    Strata 10m Air Cooled 350A Interconnect Lead Set
    SKU: 17388
    Please give us a brief description of your intended application (we may have a better solution.)
    AdvanceMig350 state of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for a rugged heavy work day in and day out.
    • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
    • Digital microprocessor control system for superior & dynamic arc characteristics
    • Optional Integrated heavy-duty industrial trolley with storage compartment option
    • Optional extended 10m interconnect cable
    • The modular power source can be used individually for MMA, arc air gouging and lift TIG welding
    • Synergic MIG operation for optimum welding results every time
    • Lift TIG operation with downslope and remote current control
    • MIG waveform (inductance) control for great arc control and smoother welding results
    • Damage resistant Industrial casing with front panel protection
    • Wire inching and gas purge control
    • Safe and simple set up and easy to use
    • Adjustable pre flow, post flow, burn back and soft start settings
    • 2T/4T trigger operation with crater control settings
    • Adjustable arc force, hot start & automatic anti stick control
    • Dual digital display meters for accurate pre setting and feedback of welding parameters & output
    • Power source wind tunnel cooling construction
    • Protection against environmental contamination.

    Products specifications
    Power Source Dimensions525x240x445mm
    Weight21kg
    Wire Feeder Dimensions600x290x480mm
    Wire Feeder Weight16kg
    Trolley Dimensions1050x440x1100mm
    Trolley Weight32kg
    Storage Compartment Dimensions620x240x290mm
    Storage Compartment Weight11kg
    Complete Package Dimensions1050x44x1450mm
    Complete Package Weight90kg
    Input Power Supply400V AC 3 Phase 32A 50/60Hz
    Input Power Supply Tolerance#ERROR!
    Maximum Input Current22A
    Generator Capacity15KVA
    MIG Output Voltage10V - 35V
    MIG Output Current40A - 350A
    MIG Duty Cycle350A@60%, 275A@100%
    Wire Feeding Speed2.4 - 18m/min
    MMA Current Output40A - 350A
    MMA O/C Voltage67V
    TIG Duty Cycle350A@60% 275A@100%
    TIG Current Output40A-350A
    TIG SystemInternal solenoid gas control, lift ignition
    Insulation ClassIP23
    StandardsEN60974-1:2012
    MMA Rod Size1.6-6.0mm
    WarrantyCommercial 12 month extends to 36 months with product registration
    Power Efficiency0.85
    Power Factor0.95
    MIG Drive Rollers Available0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm
    MIG Wire Spool SizeD200/D300 5KG/15KG
