Strata EziArc165 160A DC Inverter MMA/Lift TIG Welder

Brand: Strata
SKU: 22098
$ 395 .00
$ 454.25 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

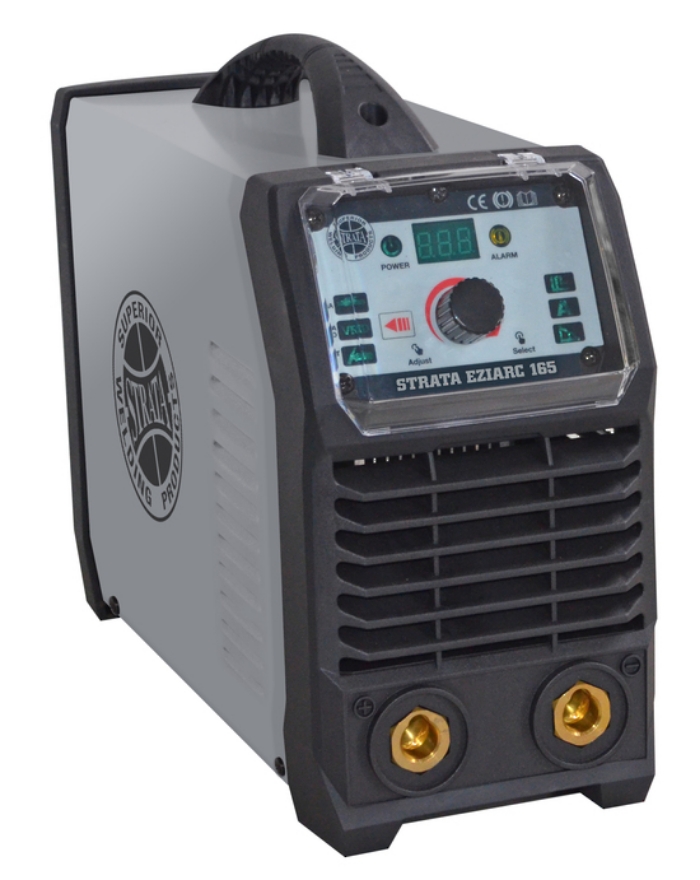

Strata EziArc165 160A DC Inverter MMA/Lift TIG Welder

A very versatile and easy to use 230V machine with the latest IGBT technology, hot start and anti-stick technology. At only 2.6kg this machine packs a punch is built tough for onsite work and engineering applications.

Key Features

- IGBT Inverter technology for smooth & stable welding output

- Microprocessor control system with superior and dynamic arc characteristics

- Lightweight & compact design for portable applications

- Production tested to 440V for extreme stress testing in production, ensuring rugged reliability

- Industrial IP23 casing with front panel protection resists damage, moisture and corrosion

- Adjustable arc force and hot start enable good control and ease of use when MMA welding

- Increased safety with MMA VRD protection mode

- Lift TIG welding operation for precision in aesthetically important welding jobs (Optional torch available)

- Accurate pre-setting and feedback of welding parameters & output with digital current display meter

- Durable and reliable with high quality & over specified electronic components

- Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety

- Designed to work with generator power supply with protection from power surges

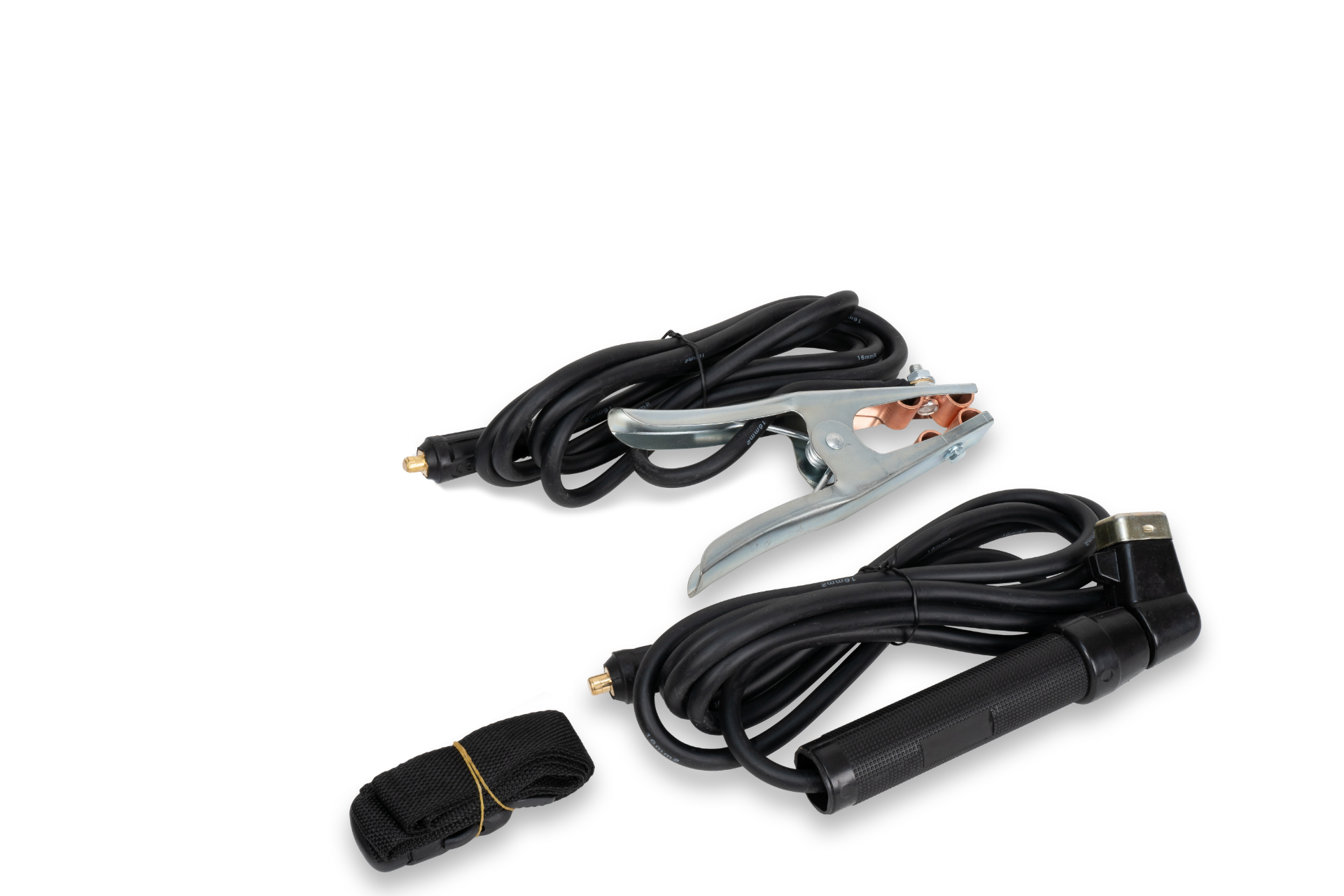

- Includes: 4M Arc Welding Lead Set

Specifications

Products specifications
Dimensions390x146x278mm
Weight2.6kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance230±20%V
Maximum Input Current36A
Generator CapacitDimension8.5KVA
MMA Current Output10A-160A
MMA O/C Voltage70V
MMA Duty Cycle160A@17%, 114A@60%, 88A@100%
Lift TIG Current Output10A-160A
Lift TIG Duty Cycle160A@25%, 100A@60%, 90A@100%
Insulation ClassIP23
Power Efficiency80%
Power factor at max. current0.65
StandardsEN60974-1:2012
MMA Rod Size1.6-4.0mm
Warranty24 months* with product registration

Strata EziArc165 160A DC Inverter MMA/Lift TIG Welder

A very versatile and easy to use 230V machine with the latest IGBT technology, hot start and anti-stick technology. At only 2.6kg this machine packs a punch is built tough for onsite work and engineering applications.

Key Features

- IGBT Inverter technology for smooth & stable welding output

- Microprocessor control system with superior and dynamic arc characteristics

- Lightweight & compact design for portable applications

- Production tested to 440V for extreme stress testing in production, ensuring rugged reliability

- Industrial IP23 casing with front panel protection resists damage, moisture and corrosion

- Adjustable arc force and hot start enable good control and ease of use when MMA welding

- Increased safety with MMA VRD protection mode

- Lift TIG welding operation for precision in aesthetically important welding jobs (Optional torch available)

- Accurate pre-setting and feedback of welding parameters & output with digital current display meter

- Durable and reliable with high quality & over specified electronic components

- Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety

- Designed to work with generator power supply with protection from power surges

- Includes: 4M Arc Welding Lead Set

Products specifications
Dimensions390x146x278mm
Weight2.6kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance230±20%V
Maximum Input Current36A
Generator CapacitDimension8.5KVA
MMA Current Output10A-160A
MMA O/C Voltage70V
MMA Duty Cycle160A@17%, 114A@60%, 88A@100%
Lift TIG Current Output10A-160A
Lift TIG Duty Cycle160A@25%, 100A@60%, 90A@100%
Insulation ClassIP23
Power Efficiency80%
Power factor at max. current0.65
StandardsEN60974-1:2012
MMA Rod Size1.6-4.0mm
Warranty24 months* with product registration
