EziMig205 200A Strata Mig/Arc

Free Shipping
Strata /
SKU: 21361
Overview

Product Overview

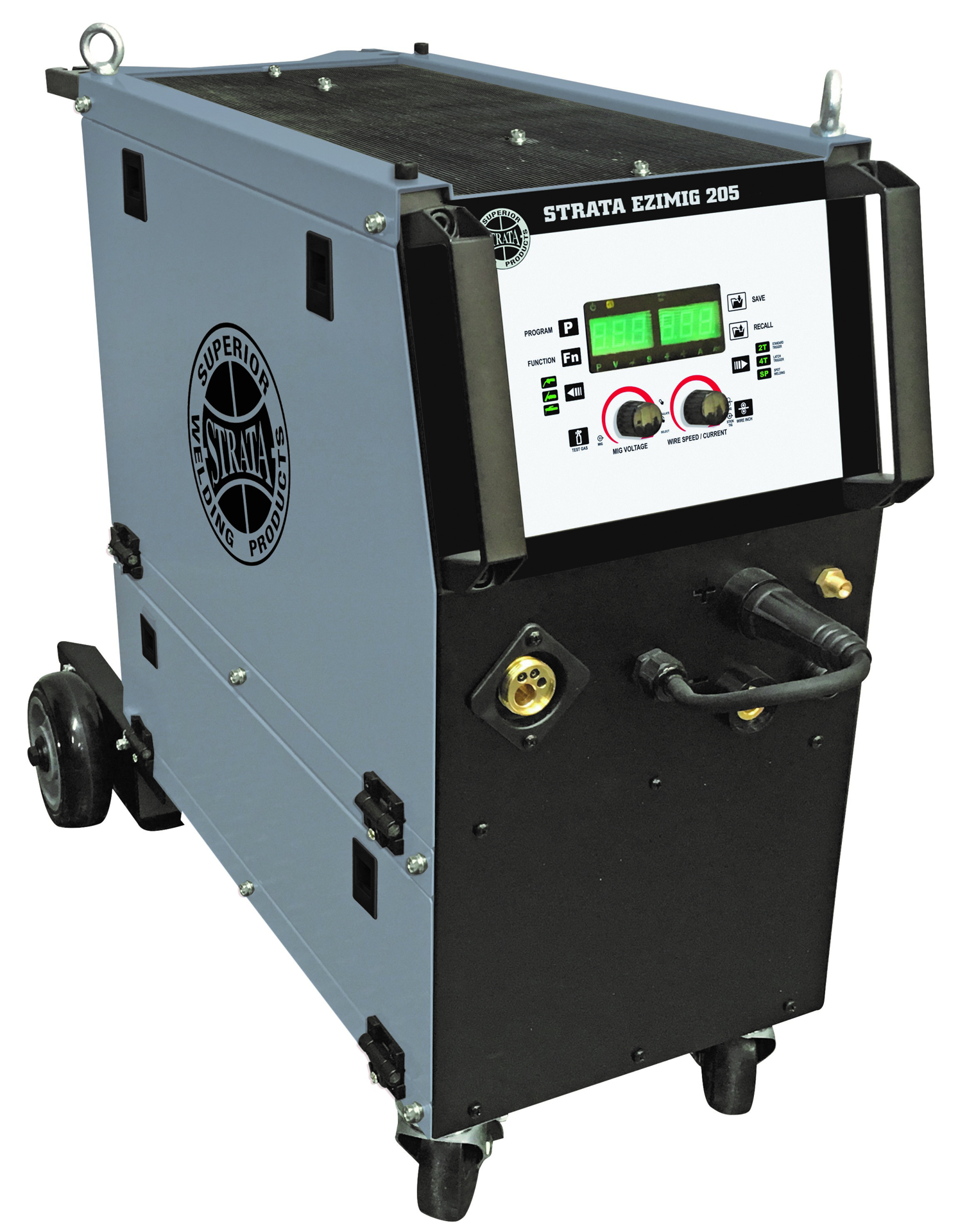

EziMig205 200A Strata Mig/Arc

Key Features

  • Single phase, 230V input power
  • Multifunction Powersource: MIG, TIG, ARC capabilities - Suitable for a wide range of welding tasks.
  • Latest IGBT inverter technology for high efficiency and reliability with smooth welding output.
  • Sturdy Integrated Wheeled Trolley gives portability and protection for workshop environments with gas cylinder mounting tray and on-board storage compartment.
  • Heavy Duty Aluminium 4 Roll Wire Feeder for consistent, smooth and reliable wire feeding.
  • Synergic MIG operation with parameter save/recall for intuitive and simple setting of controls for consistent weld results.
  • Spool Gun Connectivity for Aluminium welding capability and access for difficult welding locations.
  • Reversible welding polarity connection - Suitable for Gas & Gasless MIG operation.
  • Adjustable MMA Arc force, automatic hot-start & anti-stick control for greater control and ease of use when arc welding.
  • Extreme stress tested up to 440V for rugged reliability.
  • Intelligent protection system for increased reliability and safety.

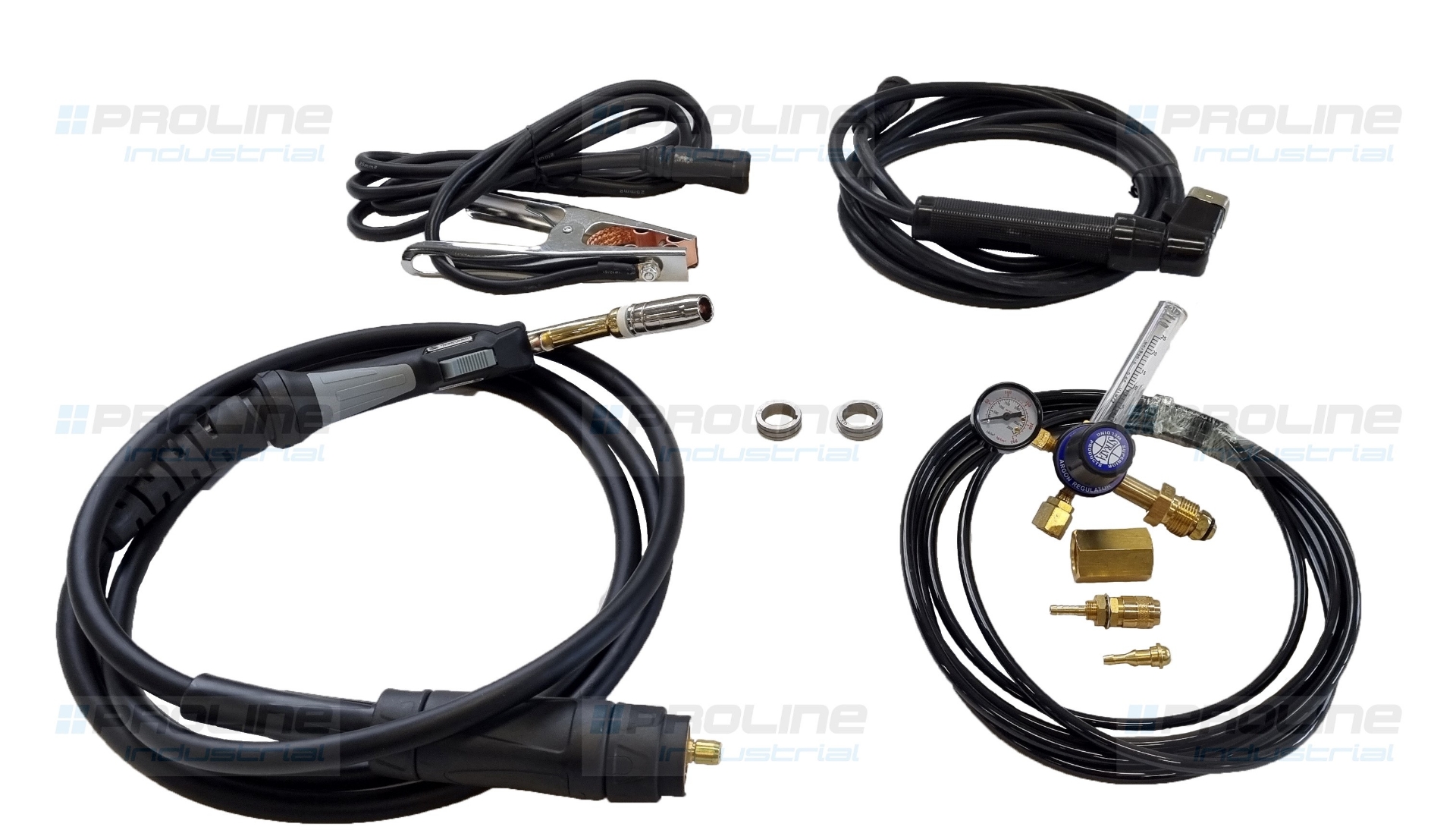

  • Includes Strata Professional MIG Torch, Earth Lead & Heavy Duty Earth Clamp, ARC Lead & Twist Lock Electrode Holder, 2 Stage Argon Gas Regulator and Gas Hose

Replaced by Strata EziMig215C 200A Synergic Welder & Trolley Package

Overview

Specifications

Function / MIG / ARC
Rated Input Power Capacity / 12KVA
No Load Voltage MIG / 28V
No Load Voltage ARC / 58V
Output Current Range MIG / 40A - 200A
Output Current Range ARC / 10A - 200A
Rated Output Voltage MIG / 16V - 27V
Rated Output Voltage ARC / 20V - 28V
MIG Duty Cycle / 60% @ 145A
Power Factor / 0.65
Max Weld Thickness / 10mm
Wire Diameter / 0.6mm - 1.2mm
Rod Diameter / 1.6mm - 4.0mm
Feeding Speed / 2m - 16m /min
Type Of Wire Feeder / Internal
Diameter of Coil / 200mm - 300mm
Input Power / Single phase 230V
Power Efficiency / 0.85
Your Questions Answered

FAQ's

What welding processes does the EziMig205 support?

Is it suitable for aluminium welding?

Can it be used for both gas and gasless MIG welding?

Can it run on standard single-phase power?

What type of wire feeder does it use?

What safety and reliability features are built in?
