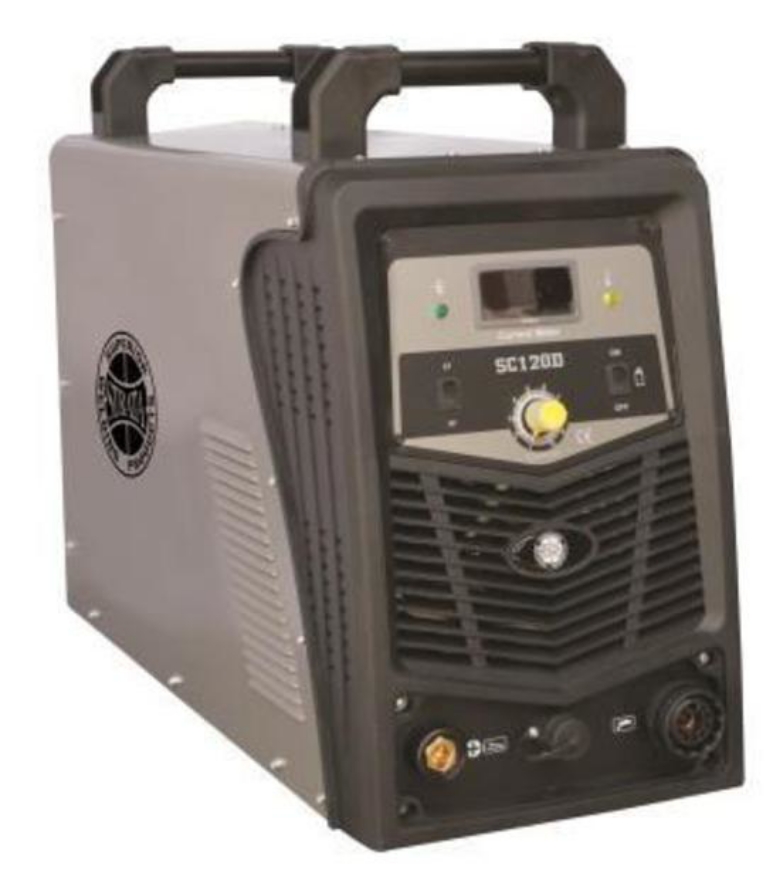

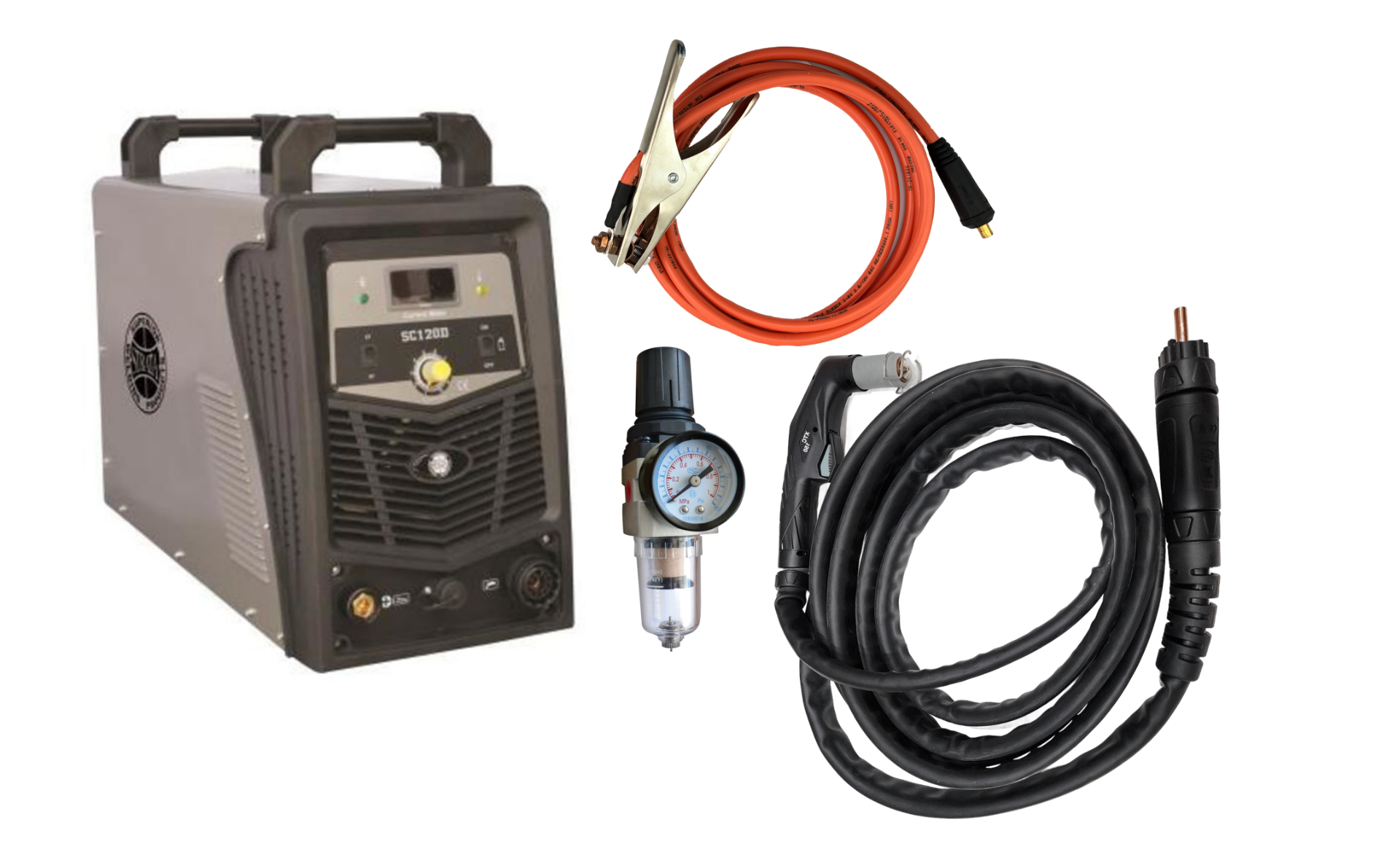

    Strata Sc120D Digital Control Inverter Plasma Cutter

    SC120D - Strata 160A Digital Plasma Cutter
    SKU: SC120D
    Please give us a brief description of your intended application (we may have a better solution.)

    With digital control this Plasma offers the professional even, precise and quicker results. The PWM (pulse with modulation) and closed-loop control system give even flow creating more consistent power and greater precision  while cutting.

    * Cuts up to 40mm steel
    * Three phase industrial rating
    * Heavy duty HF ARC starting for cutting oxidised and painted metals
    * Purge feature ensures no false starts
    * LED display and adjustable post gas ensure long consumable life
    * 2T/ 4T operation
    * Powerful electric network filtering reduces power supply pollution preventing interference with other sensitive electronic devices
    * Suitable for CNC cutting

    Products specifications
    Dimensions640 x 240 x 445mm
    Weight24kg
    Input Power Supply400V AC 20A 50Hz 3 Ph
    Max. Input Current18A
    Generator Capacity12.3KVA
    Current Output20-65A
    Duty Cycle100% @ 61A
    Cut CapacitySteel 25mm Alum. 20mm
    Severance CapacitySteel 35mm
    Compressed Air Req110L/min 5bar
    StandardsEN60974-1:2012

    With digital control this Plasma offers the professional even, precise and quicker results. The PWM (pulse with modulation) and closed-loop control system give even flow creating more consistent power and greater precision  while cutting.

    * Cuts up to 40mm steel
    * Three phase industrial rating
    * Heavy duty HF ARC starting for cutting oxidised and painted metals
    * Purge feature ensures no false starts
    * LED display and adjustable post gas ensure long consumable life
    * 2T/ 4T operation
    * Powerful electric network filtering reduces power supply pollution preventing interference with other sensitive electronic devices
    * Suitable for CNC cutting

    Products specifications
    Dimensions640 x 240 x 445mm
    Weight24kg
    Input Power Supply400V AC 20A 50Hz 3 Ph
    Max. Input Current18A
    Generator Capacity12.3KVA
    Current Output20-65A
    Duty Cycle100% @ 61A
    Cut CapacitySteel 25mm Alum. 20mm
    Severance CapacitySteel 35mm
    Compressed Air Req110L/min 5bar
    StandardsEN60974-1:2012
