WP18 8m TIG TORCH - XTP3150ACDC Analogue XTP2000ACDC

Brand: Strata
SKU: XTP3150 ACDC

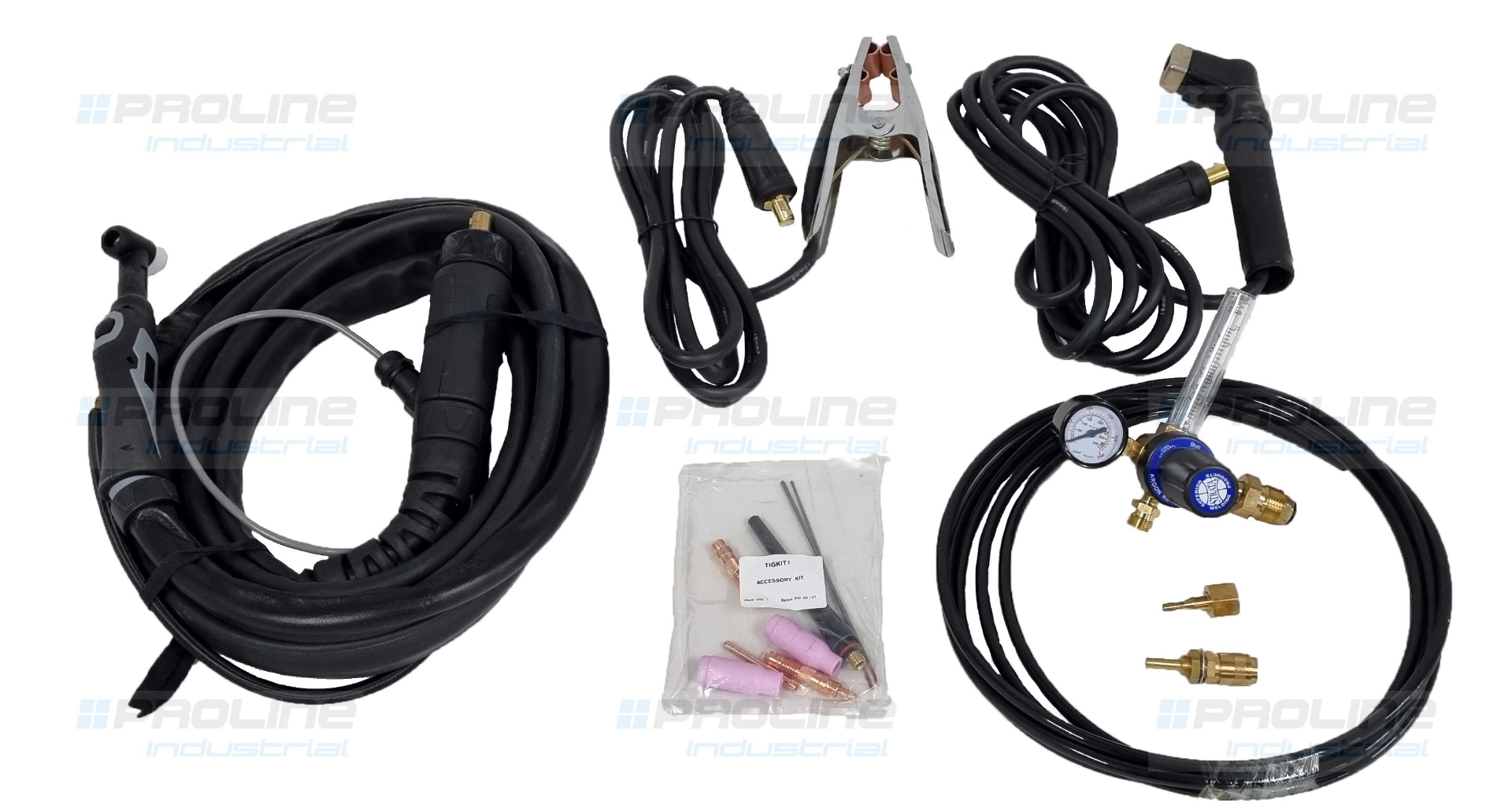

XTP3150 ACDC - Strata 315A TIG/ARC AC/DC Inverter Pulse Tig, Including Water Cooler WP18 8m Tig Torch, Arc/Earth Leads & Flow Regulator.
$ 4,295 .00 excl GST
$ 4,939.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

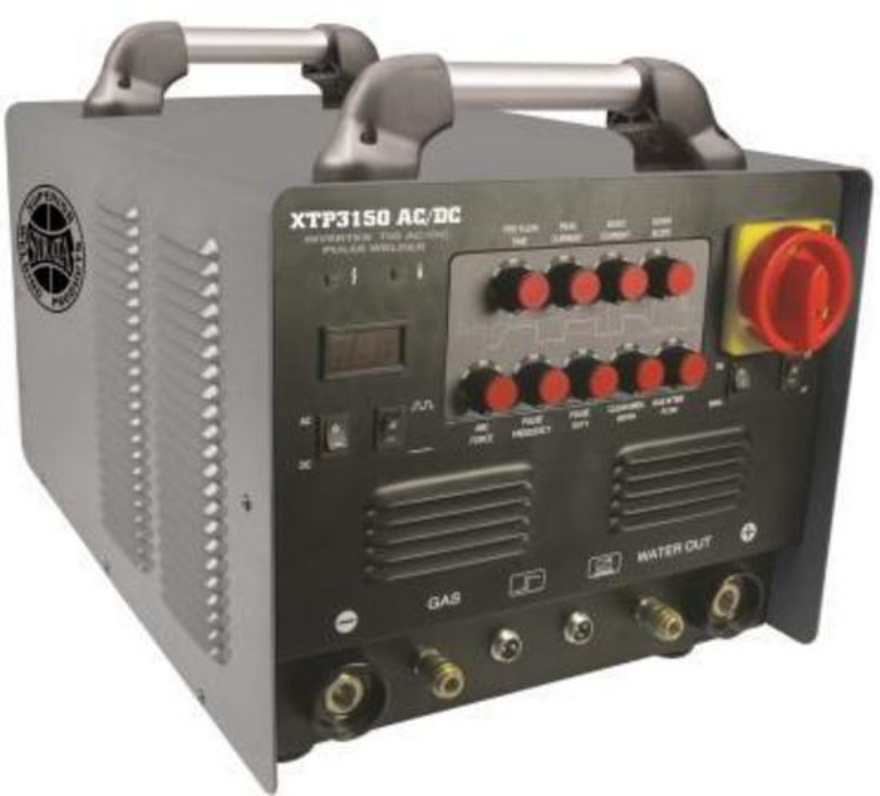

With exceptionally precise control and smooth stable arc the XTP3150PRO is an excellent 3 phase AC/DC inverter welder. The ideal machine for TIG welding aluminium, stainless steels and other steels from 0.5 - 15mm thickness

  • Three phase
  • 10 - 300A TIG and ARC welding power
  • HF start TIG welding with 2T/4T TIG function
  • ARC force adjustment
  • 60% at 200A duty cycle
  • Adjustable pulse frequency and pulse duty
  • Post and pre-flow gas adjustment
  • Down slop control

Specifications

Products specifications
Input PowerThree phase
Rated Input Power Capacity9
No Load Voltage45
Output Current Range10 - 315A
Rated output voltage10 - 22V
Duty Cycle60
ARC StartingHF TIG
Efficiency85
Power Factor0.93
Weight35kg
Overall Dimension560 x 360 x 355mm
Max. Weld Thickness12+mm
Rod Diameter1.6 - 5mm
Rating180 Amps DC
AC270 amps
Cooling flow rate1.0L/min
Inlet water pressure required2.0-5.0 Bar
Electrodes1.0mm-4.0mm

With exceptionally precise control and smooth stable arc the XTP3150PRO is an excellent 3 phase AC/DC inverter welder. The ideal machine for TIG welding aluminium, stainless steels and other steels from 0.5 - 15mm thickness

  • Three phase
  • 10 - 300A TIG and ARC welding power
  • HF start TIG welding with 2T/4T TIG function
  • ARC force adjustment
  • 60% at 200A duty cycle
  • Adjustable pulse frequency and pulse duty
  • Post and pre-flow gas adjustment
  • Down slop control
Products specifications
Input PowerThree phase
Rated Input Power Capacity9
No Load Voltage45
Output Current Range10 - 315A
Rated output voltage10 - 22V
Duty Cycle60
ARC StartingHF TIG
Efficiency85
Power Factor0.93
Weight35kg
Overall Dimension560 x 360 x 355mm
Max. Weld Thickness12+mm
Rod Diameter1.6 - 5mm
Rating180 Amps DC
AC270 amps
Cooling flow rate1.0L/min
Inlet water pressure required2.0-5.0 Bar
Electrodes1.0mm-4.0mm
