TAYLOR DA800 STUD WELDER, DA7 H/TOOL, EARTH LEADS

Brand: Taylor
SKU: 2101
TAYLOR DA800 STUD WELDER, DA7 H/TOOL, EARTH LEADS
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

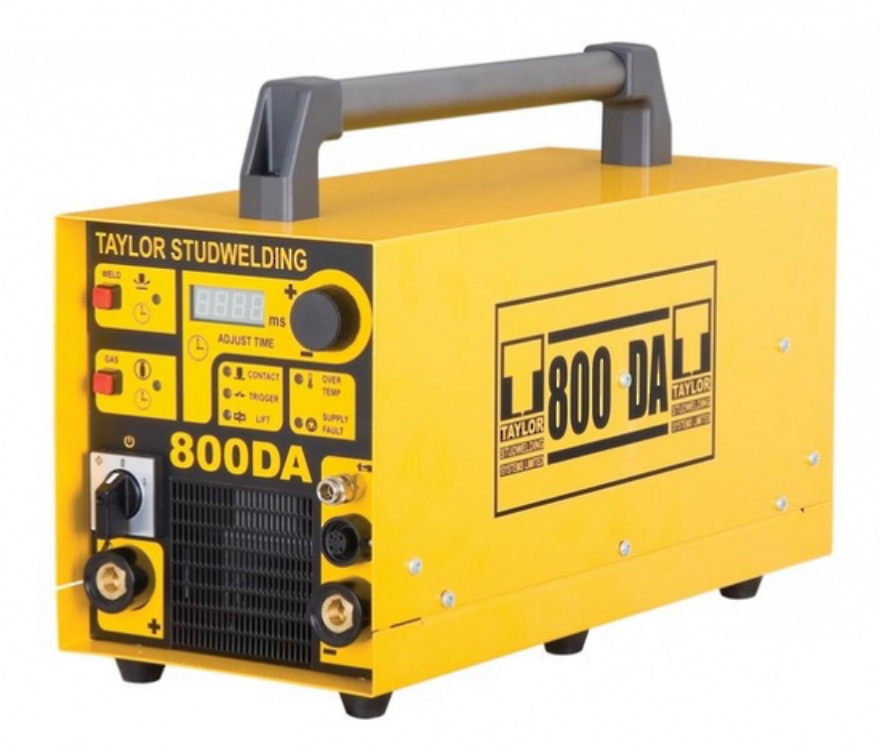

TAYLOR DA800 STUD WELDER, DA7 H/TOOL, EARTH LEADS



A Compact manouverable Drawn Arc welder that welds up to 12mm reduced base studs. With its simple robust construction the 800DA offers an economical and reliable method of fixing mild steel and stainless steel studs. Fast, accurate and easy to operate, the System 800DA gives you better weld results.





  • Robust and compact design housing all components in one cabinet
  • Lightweight and portable
  • Soak tested components used. All systems undergo extensive durability tests
  • Microprocessor controlled
  • Constant weld current
  • Infinitely adjustable welding time
  • Solid state switching
  • Visual time display
  • Constant air cooling
  • Recessed front and back panels protect controls and weld sockets
  • Twist and lock plugs and sockets
  • Hand tool can use any UK or European chuck system
  • Gun lift test facility
  • Chuck saver circuit fitted
  • Fitted with gas facility
  • Welds Short Cycle Drawn Arc
  • Designed and built to exacting standards and meeting all required standards, CE & C-TICK approved
  • With DA7 Hand Tool and Earth Leads

DA7 FEATURES

  • Material: BAH Delrin
  • Welding range: 3 - 12mm
  • Stud length: Standard legs 50mm
  • Stud length: Extended legs 170mm
  • Cable length: 4m
  • Cable size: 35mm
  • Weight (less cable): 1.3kg
  • Dimensions (LxWxH): 196 x 66 x 150 mm
  • Designed for lightness and balance
  • Comfortable to use, minimises operator fatigue
  • Made from impact resistant, high strength BAH Delrin
  • Various accessories/attachments are available to solve specific problems
  • Extensions are available for both handtool and earth cables
  • Possible to weld up to12mm standard Drawn Arc Studs



Specifications

Products specifications
Welding stud range3mm-10.8mm
Input3ph. 400V 50Hz
Fusing32A
Maz. kVA rating30 kVA
welding current Range(10%cycle) 800A
Welding Time(m/sec)20-500
Welding rate20-3/min
No-load voltage58V DC
Class protectionIP23
CoolingFan
Transformer insulation classH
Dimension520x230x280
Weight32kg

TAYLOR DA800 STUD WELDER, DA7 H/TOOL, EARTH LEADS



A Compact manouverable Drawn Arc welder that welds up to 12mm reduced base studs. With its simple robust construction the 800DA offers an economical and reliable method of fixing mild steel and stainless steel studs. Fast, accurate and easy to operate, the System 800DA gives you better weld results.





  • Robust and compact design housing all components in one cabinet
  • Lightweight and portable
  • Soak tested components used. All systems undergo extensive durability tests
  • Microprocessor controlled
  • Constant weld current
  • Infinitely adjustable welding time
  • Solid state switching
  • Visual time display
  • Constant air cooling
  • Recessed front and back panels protect controls and weld sockets
  • Twist and lock plugs and sockets
  • Hand tool can use any UK or European chuck system
  • Gun lift test facility
  • Chuck saver circuit fitted
  • Fitted with gas facility
  • Welds Short Cycle Drawn Arc
  • Designed and built to exacting standards and meeting all required standards, CE & C-TICK approved
  • With DA7 Hand Tool and Earth Leads

DA7 FEATURES

  • Material: BAH Delrin
  • Welding range: 3 - 12mm
  • Stud length: Standard legs 50mm
  • Stud length: Extended legs 170mm
  • Cable length: 4m
  • Cable size: 35mm
  • Weight (less cable): 1.3kg
  • Dimensions (LxWxH): 196 x 66 x 150 mm
  • Designed for lightness and balance
  • Comfortable to use, minimises operator fatigue
  • Made from impact resistant, high strength BAH Delrin
  • Various accessories/attachments are available to solve specific problems
  • Extensions are available for both handtool and earth cables
  • Possible to weld up to12mm standard Drawn Arc Studs



Products specifications
Welding stud range3mm-10.8mm
Input3ph. 400V 50Hz
Fusing32A
Maz. kVA rating30 kVA
welding current Range(10%cycle) 800A
Welding Time(m/sec)20-500
Welding rate20-3/min
No-load voltage58V DC
Class protectionIP23
CoolingFan
Transformer insulation classH
Dimension520x230x280
Weight32kg
