TECHNOLOGY 238 XT CE/MPGE

Brand: Telwin
SKU: 205315
TECHNOLOGY 238 XT CE/MPGE
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

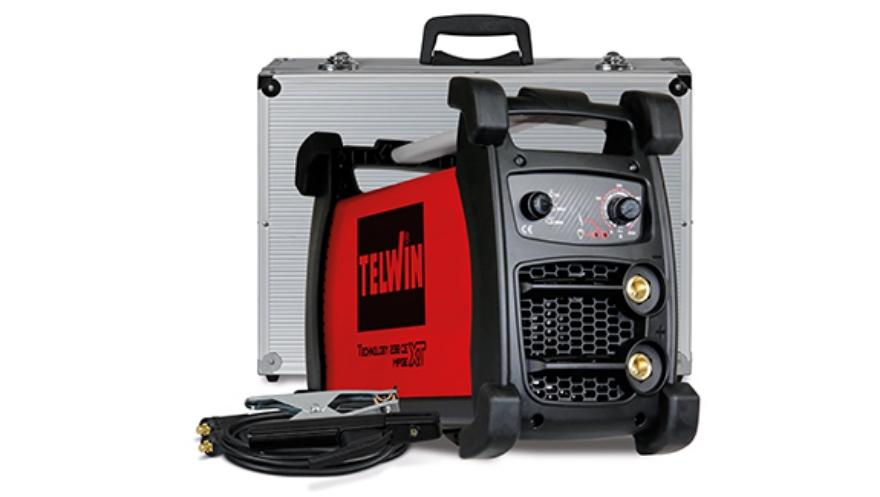

TECHNOLOGY 238 XT CE/MPGE 230V ACX+CASE

code 816252

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, cellulosic, etc.
Recommended for motorgenerators, this model grants high performance despite power supply instability, thanks to the MPGE multiprotections: control device of the wave form, filter against input peaks, stabilization of oscillations. Robust and impact resistant.
Features:
- compact and light
- 50 Ø dinse
- high welding current stability in spite of mains voltage fluctuations
- regulation of arc force and hot start according to the type of electrode in use
- anti-stick device
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with MMA welding accessories and aluminium carry case.

Specifications

Products specifications
Single Phase230V
Mains Frequency50/60 Hz
Current range5-200 A
Max current200A - 35%
Current At 60%140A
Max no Load Voltage80V
Max Absorbed currentq39A
Absorbed Power3 kW
Efficiency0.87
Power Factor0.7
Protection degreeIP23
Motorgenerator Minimum power10 kw
Weight10.55kg
Dimensions37.5x50x22
