TECHNOLOGY PLASMA 54 KOMPRESSOR

Brand: Telwin
SKU: 204341
TECHNOLOGY PLASMA 54 KOMPRESSOR
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

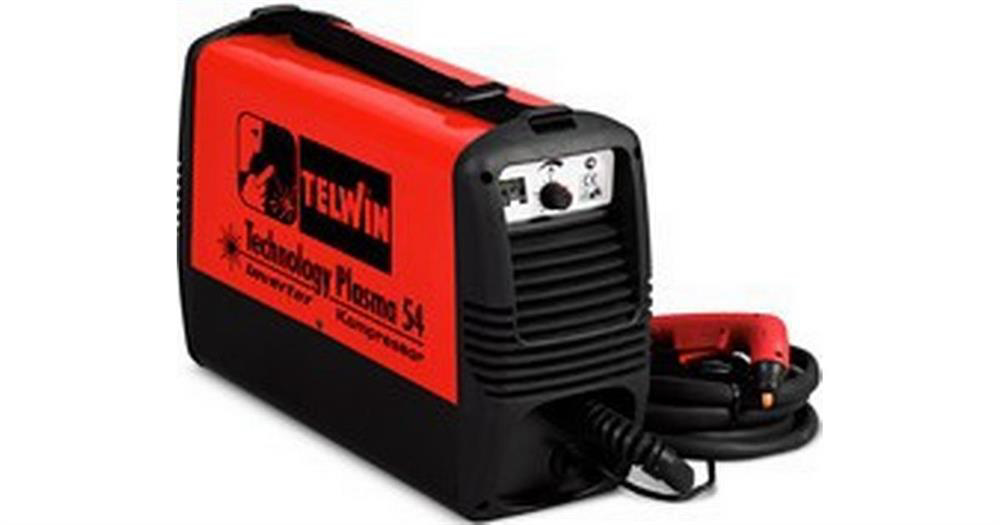

TECHNOLOGY PLASMA 54 KOMPRESSOR 230V

code 815088

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
The model is equipped with a compressor and needs not to be connected to an external compressed air power source.
Features:
- reduced weight and dimensions
- warning led for torch under voltage, protections
- torch automatic cooling
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with torch.

Specifications

Products specifications
Mains Frequency50/60 Hz
Single phase Mains Voltageq230V
Current range7-40 A
Max current35 A-30%
Max no Load Voltage400 V
Max Absorbed currentq27.5 A
Efficiency0.7
Power Factor0.7
Max Cutting Thickness10mm
Protection degreeIP23
Weight16.45kg
Dimensions55x17x34

TECHNOLOGY PLASMA 54 KOMPRESSOR 230V

code 815088

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
The model is equipped with a compressor and needs not to be connected to an external compressed air power source.
Features:
- reduced weight and dimensions
- warning led for torch under voltage, protections
- torch automatic cooling
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with torch.

Products specifications
Mains Frequency50/60 Hz
Single phase Mains Voltageq230V
Current range7-40 A
Max current35 A-30%
Max no Load Voltage400 V
Max Absorbed currentq27.5 A
Efficiency0.7
Power Factor0.7
Max Cutting Thickness10mm
Protection degreeIP23
Weight16.45kg
Dimensions55x17x34
