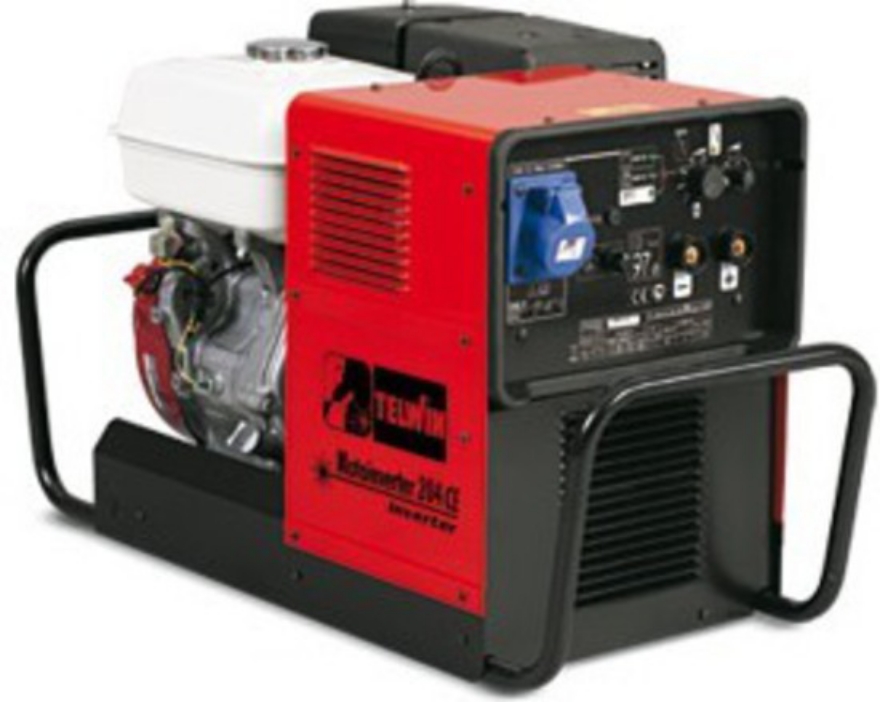

Telwin Motoinverter 204 Engine Driven Welder/Generator

Brand: Telwin
SKU: 203201
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Telwin Motoinverter 204 Engine Driven Welder/Generator uses the latest inverter technology to produce smooth and consistent welding power. With a Kohler US Made 4-stroke air cooled petrol engine featuring auto shutdown for low oil, this welder/generator boasts reliabilty. It is designed to weld using a wide range of electrodes including rutile, cellulosic, stainless steel, cast iron etc. It can also be used as a direct current (DC) generator for powering electrical tools such as drills, grinders, sanders etc.

Key Features:

- Over-fast engine safeguard

- Continuous welding current adjustment

- High current stability by variations in engine revs

- Hot start function

- Arc force regulation

- Thermostatic protection

- High frequency permanent magnets alternator for MMA and TIG-DC electrode welding and scratch start tig welding.

Specifications

Products specifications
Current range5-190 A
Max Current DC160 @ 35% A
DC Current115A
Max no Load Voltage112 V
D.Usable Electrobes IN Dc1.6-4 mm
Protection degreeIP23
DC Available voltage230V
DC Available power2.2 kW
Fuel Consumption313 g/kWh
Displacement270 cm3
Weight58kg
Dimensions84x47x48

The Telwin Motoinverter 204 Engine Driven Welder/Generator uses the latest inverter technology to produce smooth and consistent welding power. With a Kohler US Made 4-stroke air cooled petrol engine featuring auto shutdown for low oil, this welder/generator boasts reliabilty. It is designed to weld using a wide range of electrodes including rutile, cellulosic, stainless steel, cast iron etc. It can also be used as a direct current (DC) generator for powering electrical tools such as drills, grinders, sanders etc.

Key Features:

- Over-fast engine safeguard

- Continuous welding current adjustment

- High current stability by variations in engine revs

- Hot start function

- Arc force regulation

- Thermostatic protection

- High frequency permanent magnets alternator for MMA and TIG-DC electrode welding and scratch start tig welding.

Products specifications
Current range5-190 A
Max Current DC160 @ 35% A
DC Current115A
Max no Load Voltage112 V
D.Usable Electrobes IN Dc1.6-4 mm
Protection degreeIP23
DC Available voltage230V
DC Available power2.2 kW
Fuel Consumption313 g/kWh
Displacement270 cm3
Weight58kg
Dimensions84x47x48
