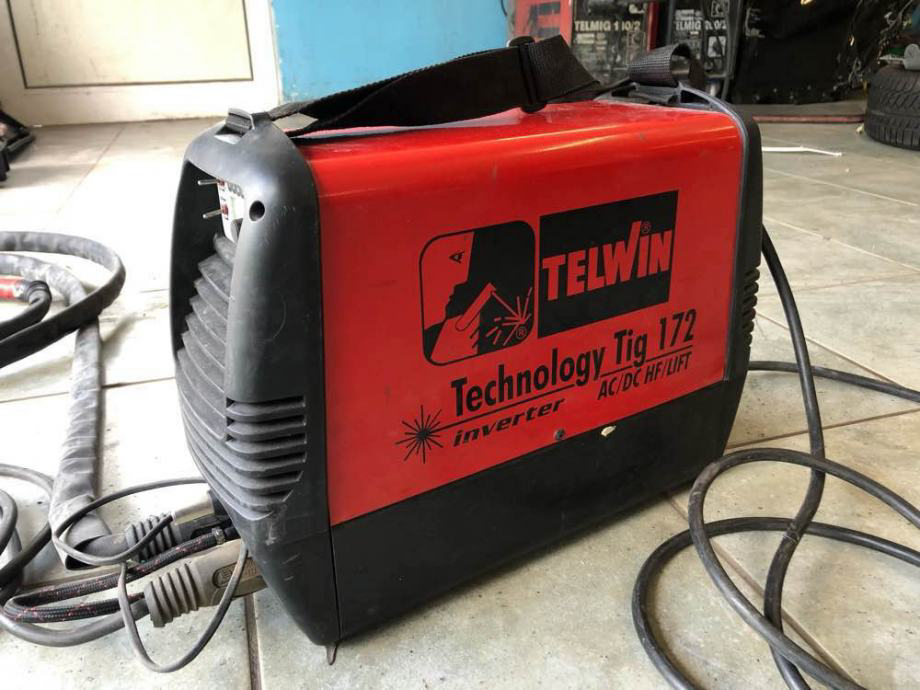

TELWIN TECHNOLOGY TIG 172 AC / DC HF / LIFT

Brand: Telwin
SKU: 201491
TELWIN TECHNOLOGY TIG 172 AC / DC HF / LIFT
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Inverter welding rectifier for TIG welding with alternating current (AC) and direct current (DC) with non-contact or touch (LIFT) arc ignition and MMA method covered with direct current (DC).

Single phase supply.

Allows welding of aluminum, carbon and stainless steels, nickel, titanium, oxygen-free copper, bronze.

Overload protection.

Electronically controlled smooth welding current regulation.

Has functions that facilitate the welding process: ANTI STICK :
short circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents accidental welding arc
ARC FORCE: short circuit current regulation - makes it easier to transfer a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode drop contacts the weld pool
HOT START: hot start - facilitates ignition of the electrode by providing a larger welding current each time the arc strikes.

For TIG welding: bi-level current regulation, shield gas off delay adjustment, current fall time adjustment, balance adjustment, anti stick.

Adjustment of all settings controlled by microprocessor.

2-step / 4-step function

Adjusting the welding dynamics with the MMA method allows you to control arc stability and the amount of spatter.

Maximum diameter of coated electrode 4.0.

Equipped with a digital meter (ammeter).

Possibility to connect a remote control or pulsating current control.

Fan cooled.

Over and undervoltage protection.

Memory of last 10 alarms.

High welding current stability despite mains voltage fluctuations.

Specifications

Products specifications
Model Technology Tig172 AC/DC
Voltage230V / 50Hz
Power consumption60% 2.7 kw
Max power consumption4.5 kw
welding current5-160 A
Electrode diameter1.6 - 4.0 mm
Weight12.8kg
Dimensions430x170x340
