Telwin Technomig 215 Dual Synergic Multiprocess Inverter Welder

Brand: Telwin
SKU: 200380
Italian made, synergic adjustment of parameters for perfect welding. One solution for multiple welding needs.
$ 1,995 .00 excl GST
$ 2,294.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

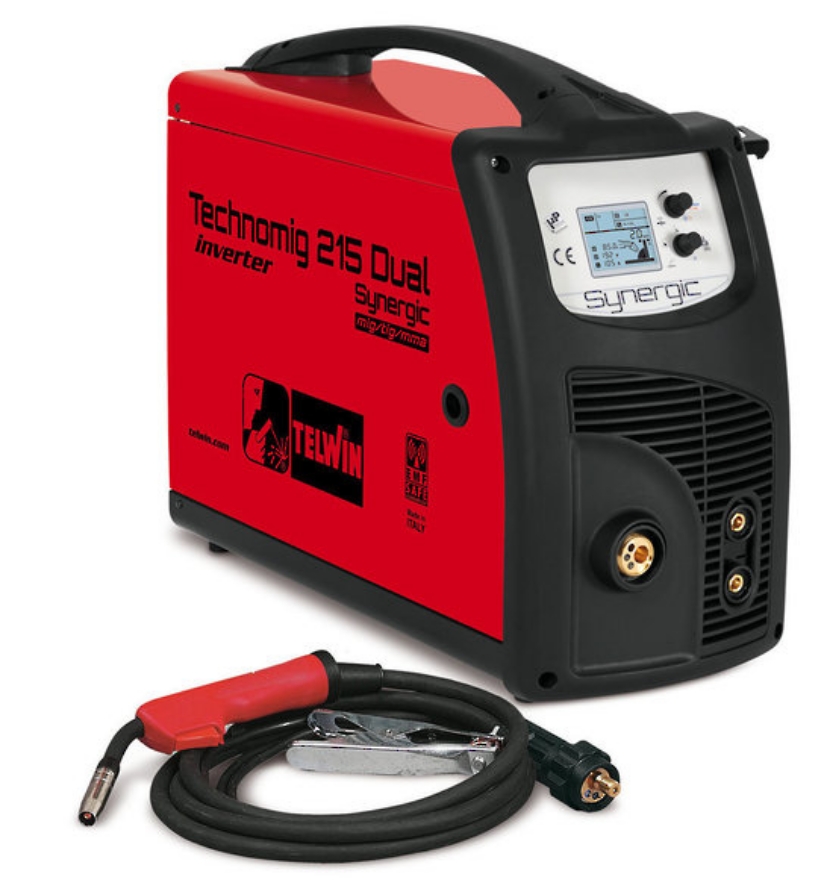

The Telwin Technomig 215 230V is a European made, microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift inverter multiprocess welding machine.

Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet).

The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.

The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.

The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.

Features:

  • Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding;
  • 27 synergy curves available;
  • Visualization on LCD display of voltage, current, welding speed;
  • Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
  • Choice of 2/4 times, spot operation;
  • VRD device;
  • Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protection
  • Complete with MIG-MAG torch, work clamp and cable.

Product Video

Specifications

Products specifications
Mains FrequencyV50/60Hz
Single phase Mains Voltageq230v
Current range20-220A
Max current180A- 20%
Max no Load Voltage78V
Max Absorbed currentq32A
Efficiency0.84
Power Factor0.7
Steel welding wire Diameter0.6-1mm
Protection degreeIP23
Weight22 kg
Dimensions62-26-49

The Telwin Technomig 215 230V is a European made, microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift inverter multiprocess welding machine.

Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet).

The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.

The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.

The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.

Features:

  • Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding;
  • 27 synergy curves available;
  • Visualization on LCD display of voltage, current, welding speed;
  • Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
  • Choice of 2/4 times, spot operation;
  • VRD device;
  • Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protection
  • Complete with MIG-MAG torch, work clamp and cable.
Products specifications
Mains FrequencyV50/60Hz
Single phase Mains Voltageq230v
Current range20-220A
Max current180A- 20%
Max no Load Voltage78V
Max Absorbed currentq32A
Efficiency0.84
Power Factor0.7
Steel welding wire Diameter0.6-1mm
Protection degreeIP23
Weight22 kg
Dimensions62-26-49
