Telwin Tecnica 188 MPGE Inverter Welder

Brand: Telwin
SKU: 201452

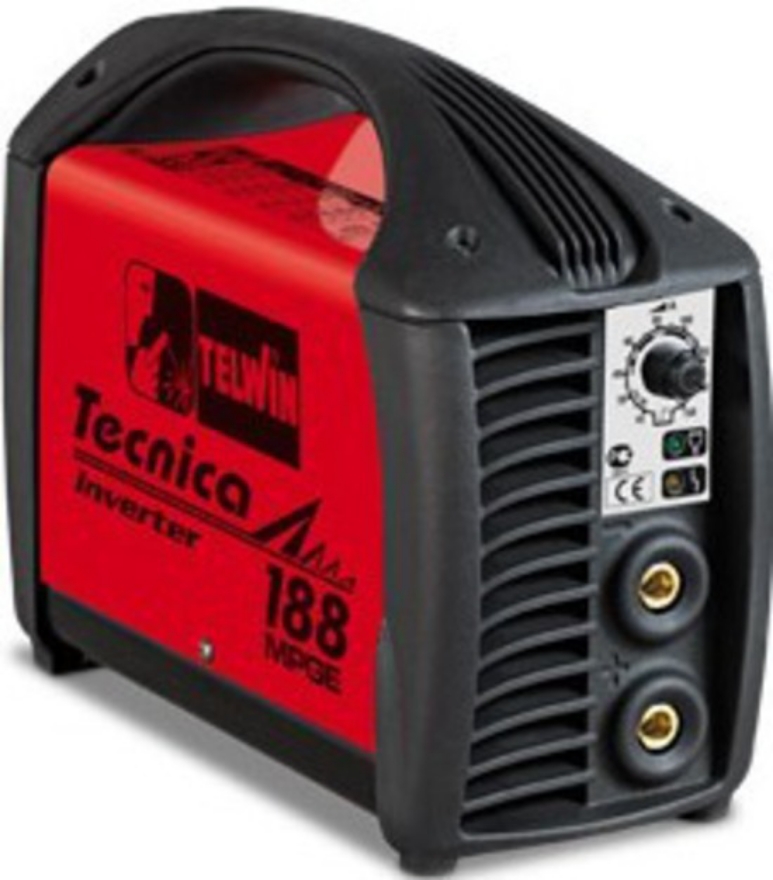

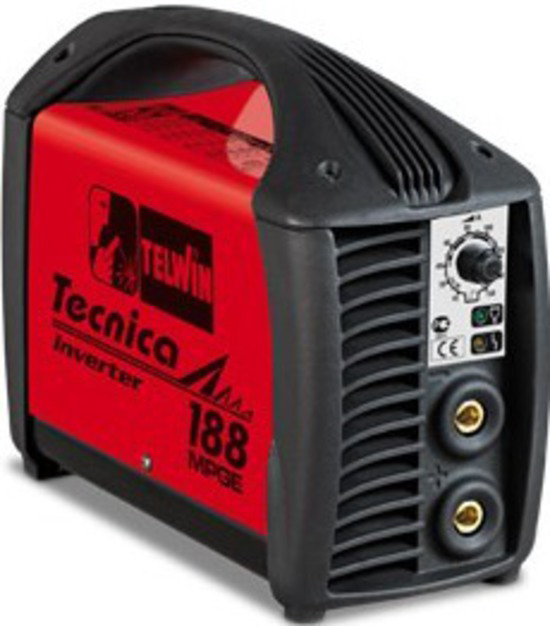

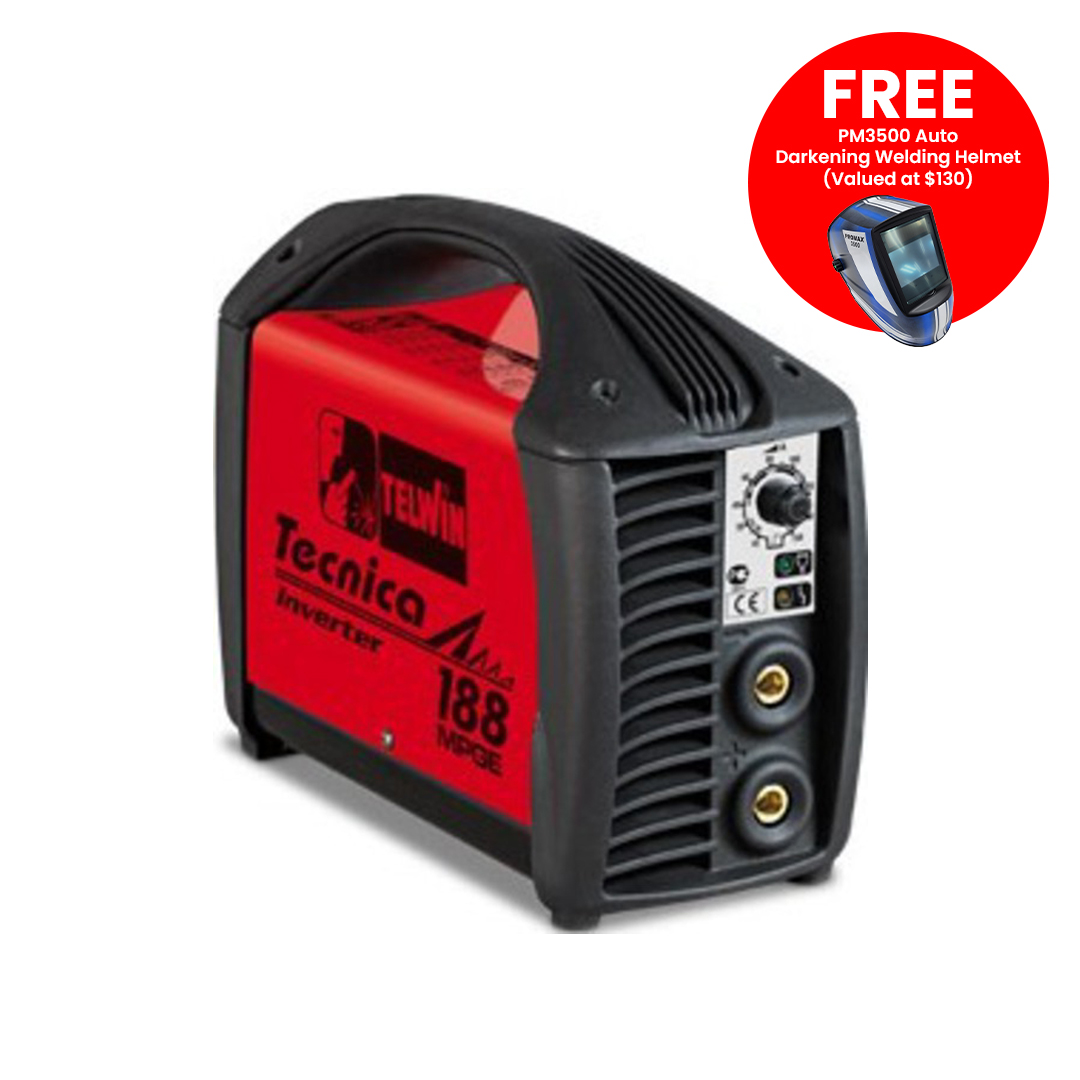

Telwin Tecnica 188 MPGE Inverter Welder
$ 695 .00 excl GST
$ 799.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Telwin Tecnica 188 MPGE Inverter Welder

The Tecnica 188 MPGE inverter is a 150A DC welder designed especially for the professional welder. The 188's 'GE' rating means that it has special electronic protection built in to guarantee smooth and reliable running power. The key benefit of this model is the generator protection device which protects the electronics when running the welder on a portable generator.

Suitable for arc electrodes from 1.6mm - 4.0mm, the 188 also offers TIG welding capabilities with the optional TIG kit.

* Single phase, 230V input power

* 5 - 150A DC welding current

* Fan cooled

* Arc force, hot start, and anti-stick functions

* Thermostatic undervoltage / overvoltage and overcurrent safety devices

* Special protection device for motor-generator use

Specifications

Products specifications
Single Phase230V
Mains Frequency50/60 Hz
Current range10-150 A
Max current140A -25%
Current At 60%90 A
Max no Load Voltage75 V
Max Absorbed currentq28 A
Absorbed Current17A
Max Absorbed power4.2 kW
Efficiency0.86
Power Factor0.7
Protection degreeIP23
Motorgenerator Minimum power6 kW
Weight7kg
Dimensions38-42-17

Telwin Tecnica 188 MPGE Inverter Welder

The Tecnica 188 MPGE inverter is a 150A DC welder designed especially for the professional welder. The 188's 'GE' rating means that it has special electronic protection built in to guarantee smooth and reliable running power. The key benefit of this model is the generator protection device which protects the electronics when running the welder on a portable generator.

Suitable for arc electrodes from 1.6mm - 4.0mm, the 188 also offers TIG welding capabilities with the optional TIG kit.

* Single phase, 230V input power

* 5 - 150A DC welding current

* Fan cooled

* Arc force, hot start, and anti-stick functions

* Thermostatic undervoltage / overvoltage and overcurrent safety devices

* Special protection device for motor-generator use

Products specifications
Single Phase230V
Mains Frequency50/60 Hz
Current range10-150 A
Max current140A -25%
Current At 60%90 A
Max no Load Voltage75 V
Max Absorbed currentq28 A
Absorbed Current17A
Max Absorbed power4.2 kW
Efficiency0.86
Power Factor0.7
Protection degreeIP23
Motorgenerator Minimum power6 kW
Weight7kg
Dimensions38-42-17
