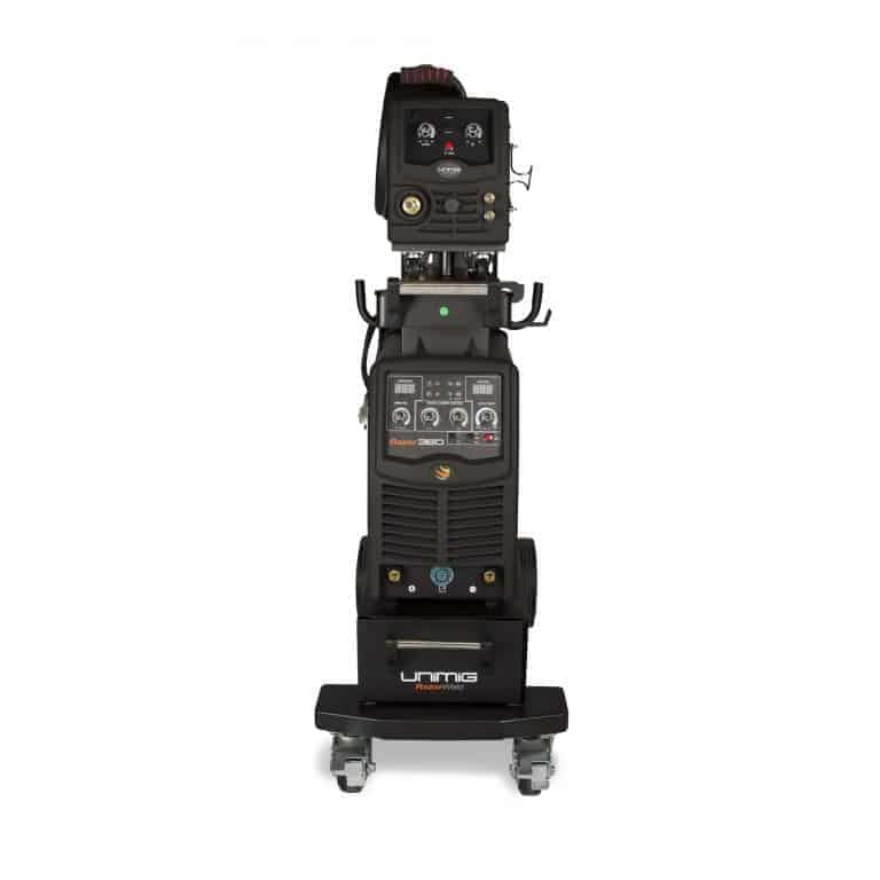

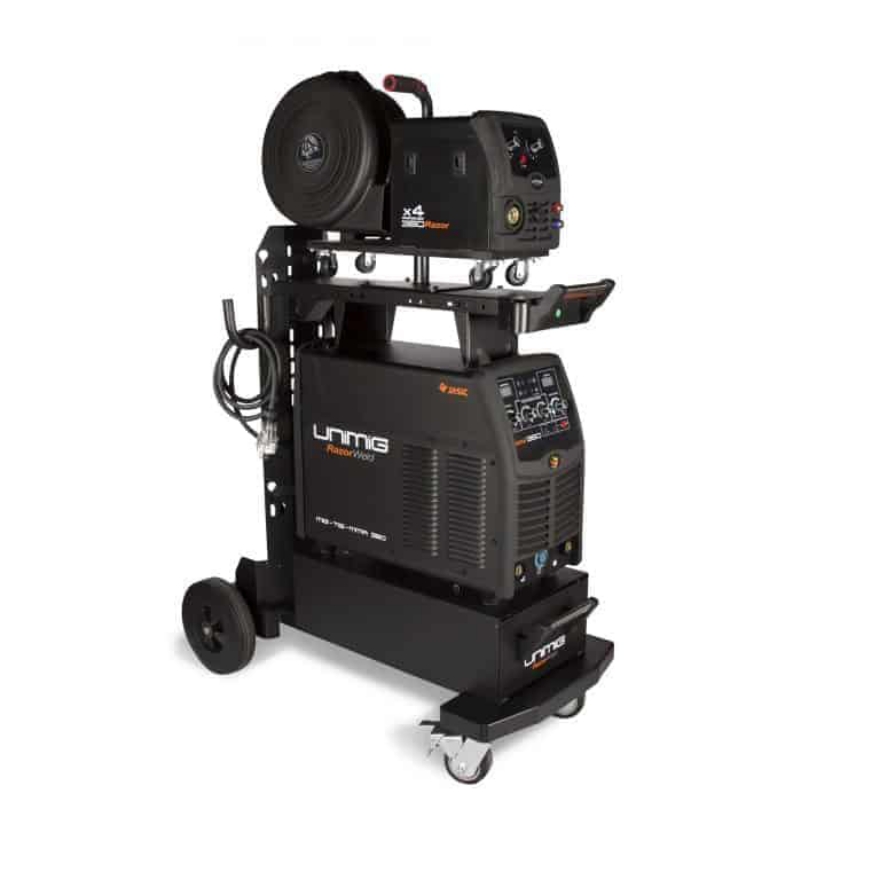

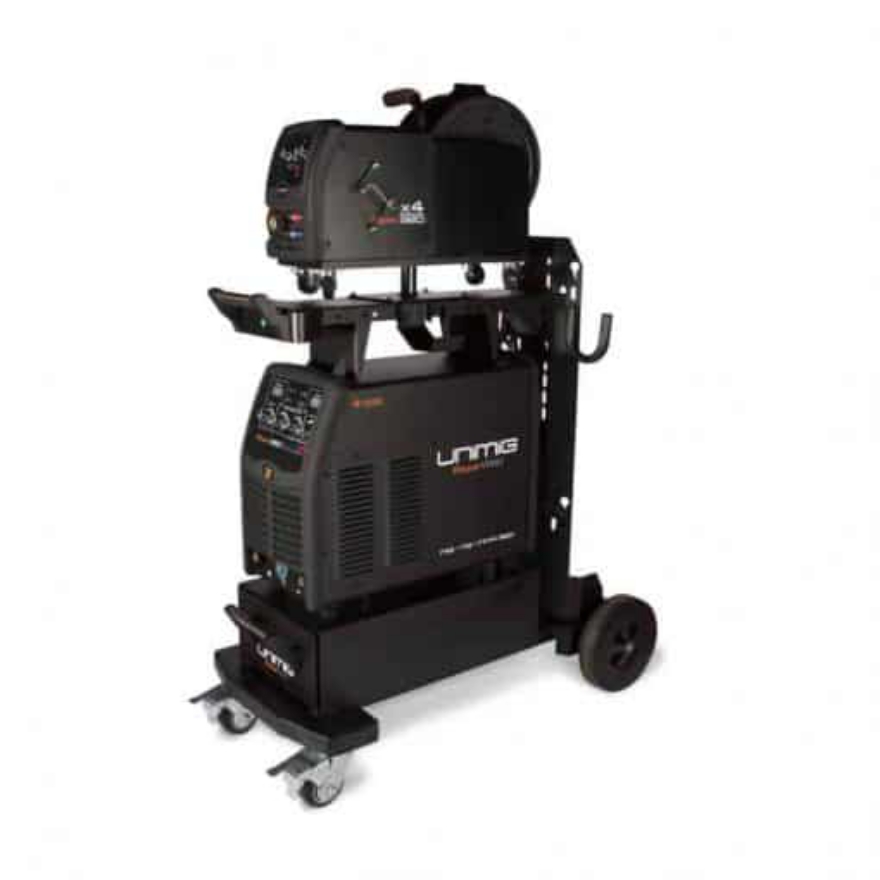

UNIMIG 500 SWF Inverter Mig

Free Shipping
UniMig /
SKU: 201784

The UNIMIG 500 SWF is a powerful inverter MIG welder with advanced controls, multiple welding modes, and excellent arc stability—ideal for heavy-duty industrial applications.

Overview

Product Overview

UNIMIG 500 SWF Inverter Mig

The UNIMIG 500 SWF Inverter MIG Welder is engineered for professional performance across industrial welding applications. Featuring the latest IGBT inverter technology, it provides reliable power, exceptional arc stability, and the flexibility to handle MIG/MAG (gas or gasless), Stick (MMA), and DC TIG welding processes.

With a separate 4-roll geared wire feeder, digital LED display, and 10m interconnecting cables, this unit is built for convenience and efficiency on the workshop floor. Operator-focused features such as variable inductance, burn back control, crater current adjustment, and 2T/4T trigger functionality provide full control for precise, clean welds. Durable, versatile, and easy to operate, the UNIMIG 500 SWF is the ultimate solution for medium to heavy fabrication tasks.

Key Features:

  • IGBT Inverter Technology
    Ensures high efficiency, stable output, and reliable performance across demanding welding applications.
  • Multi-Process Capability
    Supports MIG/MAG (gas and gasless), Stick (MMA), and DC TIG with scratch start, giving flexibility in one machine.
  • Advanced Wire Feeding
    Equipped with a separate 4-roll geared wire feeder and 10m interconnecting cables for smooth, consistent wire delivery.
  • Precision Controls
    Features variable inductance, burn back, and crater current adjustment, allowing operators to fine-tune weld quality.
  • User-Friendly Functions
    Includes voltage and wire feed controls at the feeder, 2T/4T trigger modes, and gas check/inch wire functions for easy setup and operation.
  • Digital LED Display
    Provides clear, accurate readings of welding parameters for greater precision and monitoring.
  • Euro Torch Connection
    Designed with a Euro MIG torch connector for quick setup and compatibility with a wide range of torches.
  • Excellent Arc Stability
    Delivers consistently smooth and stable arcs across MIG, TIG, and Stick processes for high-quality results.
Overview

Specifications

Power Supply / AC415V±15%-50/60Hz
Duty Cycle@40°c to AS/NZ6097 4 / 60% @ 500 Amps MIG
Output Current Range MIG / 50A/16.5V – 500A/39.0V
Rated Power MIG / 24.7 KVA
Comp. Air Pressure / 5 Bar
Protection class / IP 21S
Insulation Class / F
Weight Power Source / 40.6kg
Weight Power Feeder / 14
Dimention wire feeder / 630x235x420mm
Dimention Power Source / 595x280x440mm
