WECO Pioneer 321 MSR MIG Welder

Brand: Weco
SKU: 201799
WECO Pioneer 321 MSR MIG Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

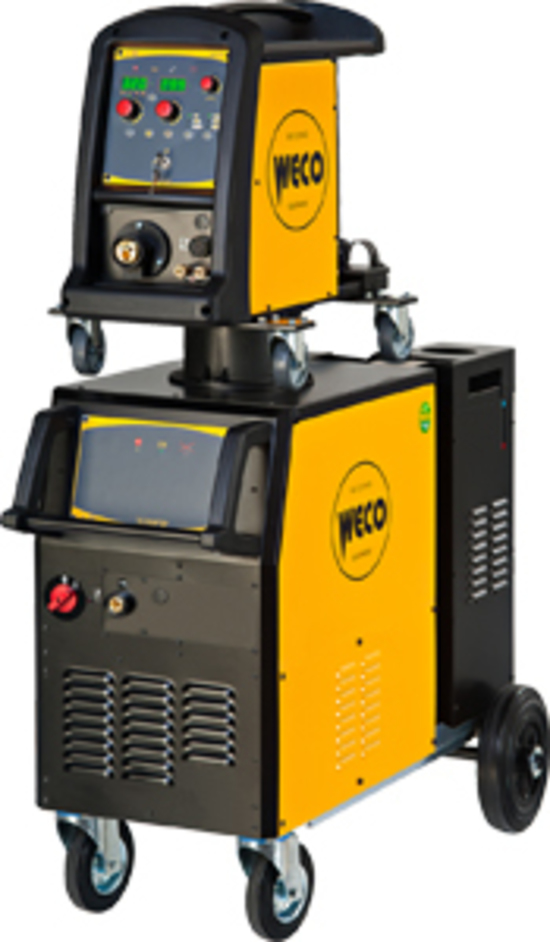

Pioneer 321 MSR is a synergic 3 Phase Inverter with separated wire-feeder.
A wide range of MIG-MAG synergic programs facilitate the selection of precise welding parameters using any welding wires.
WF 107 is a portable 4-roll drive wire feeder designed to withstand severe environmental conditions, it is ideal for any applications of medium to heavy size carpentry, constructions and automotive.
Friendly-user interface allows precise parameters setting using only one knob.
All MIG-MAG controls are on the wire feeder: Wire Speed, Welding Voltage, Inductance, Motor Slope, Soft Start, Burn Back, Post Gas, Wire Feeding, Test Gas, 2T/ 4T/ 3T Special trigger torch control, Intermittent and Spot welding selection.
3T Special allows both Hot Start and Crater Filler current setting, for optimal penetration at start and crater filling at bead’s end.
Spot and Intermittent welding mode give excellent welding spots.
Microprocessor, inverter technology, digital displays, synergic curves and memory locations for customized welding parameters assure complete welding process repeatability.
WECO unique HAC (Hybrid Arc Control) supplies a soft and very stable MIGMAG welding arc with excellent weld bead quality and minimal spattering in any working conditions.

Equipped with big wheels and gas bottle holder
Cooling Unit available
Fan on demand and Built-in Wind Tunnel protects electronic devices from dust and saltiness and improves reliability
Up to 50m cable bundle can be used with no performances reduction
Push-Pull Gun applicable for better MIG aluminum welding

Construction technology:  Inverter
Mains supply:  Three phases
Type:  MIG - MAG
Warranty Period: 24 Months

Specifications

Products specifications
Voltage3 x 400V~ ±15% / 50-60Hz
welding current16A Ritardata / Delayed
Input current11.1A
Circuit Voltage53V
Insulation ClassH
Protection ratingIP23S
CoolingAF
Dimention1100x500x1440
Weight123kg

Pioneer 321 MSR is a synergic 3 Phase Inverter with separated wire-feeder.
A wide range of MIG-MAG synergic programs facilitate the selection of precise welding parameters using any welding wires.
WF 107 is a portable 4-roll drive wire feeder designed to withstand severe environmental conditions, it is ideal for any applications of medium to heavy size carpentry, constructions and automotive.
Friendly-user interface allows precise parameters setting using only one knob.
All MIG-MAG controls are on the wire feeder: Wire Speed, Welding Voltage, Inductance, Motor Slope, Soft Start, Burn Back, Post Gas, Wire Feeding, Test Gas, 2T/ 4T/ 3T Special trigger torch control, Intermittent and Spot welding selection.
3T Special allows both Hot Start and Crater Filler current setting, for optimal penetration at start and crater filling at bead’s end.
Spot and Intermittent welding mode give excellent welding spots.
Microprocessor, inverter technology, digital displays, synergic curves and memory locations for customized welding parameters assure complete welding process repeatability.
WECO unique HAC (Hybrid Arc Control) supplies a soft and very stable MIGMAG welding arc with excellent weld bead quality and minimal spattering in any working conditions.

Equipped with big wheels and gas bottle holder
Cooling Unit available
Fan on demand and Built-in Wind Tunnel protects electronic devices from dust and saltiness and improves reliability
Up to 50m cable bundle can be used with no performances reduction
Push-Pull Gun applicable for better MIG aluminum welding

Construction technology:  Inverter
Mains supply:  Three phases
Type:  MIG - MAG
Warranty Period: 24 Months

Products specifications
Voltage3 x 400V~ ±15% / 50-60Hz
welding current16A Ritardata / Delayed
Input current11.1A
Circuit Voltage53V
Insulation ClassH
Protection ratingIP23S
CoolingAF
Dimention1100x500x1440
Weight123kg
