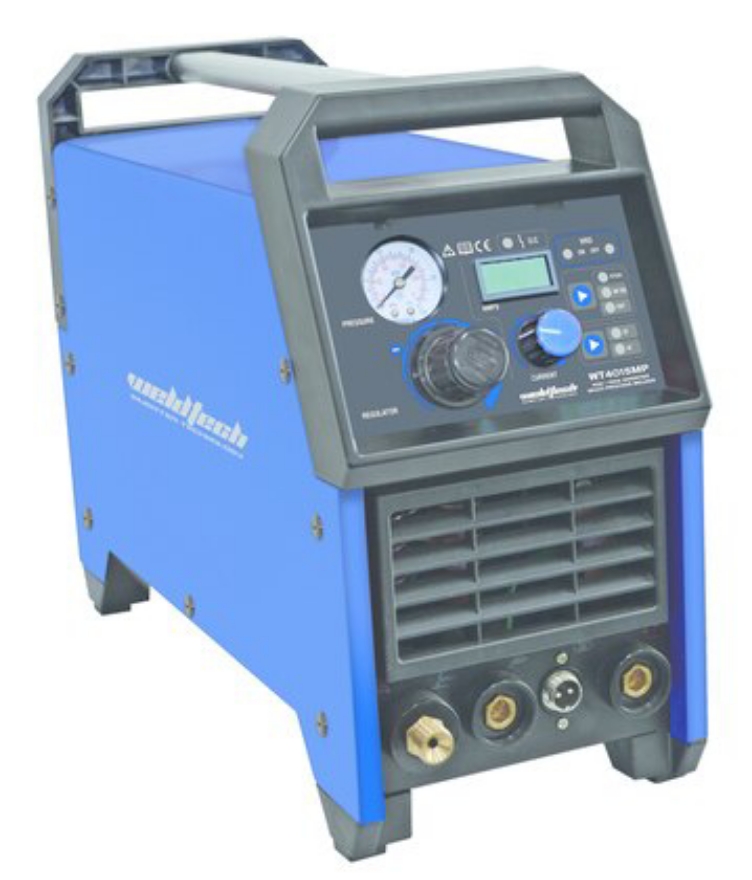

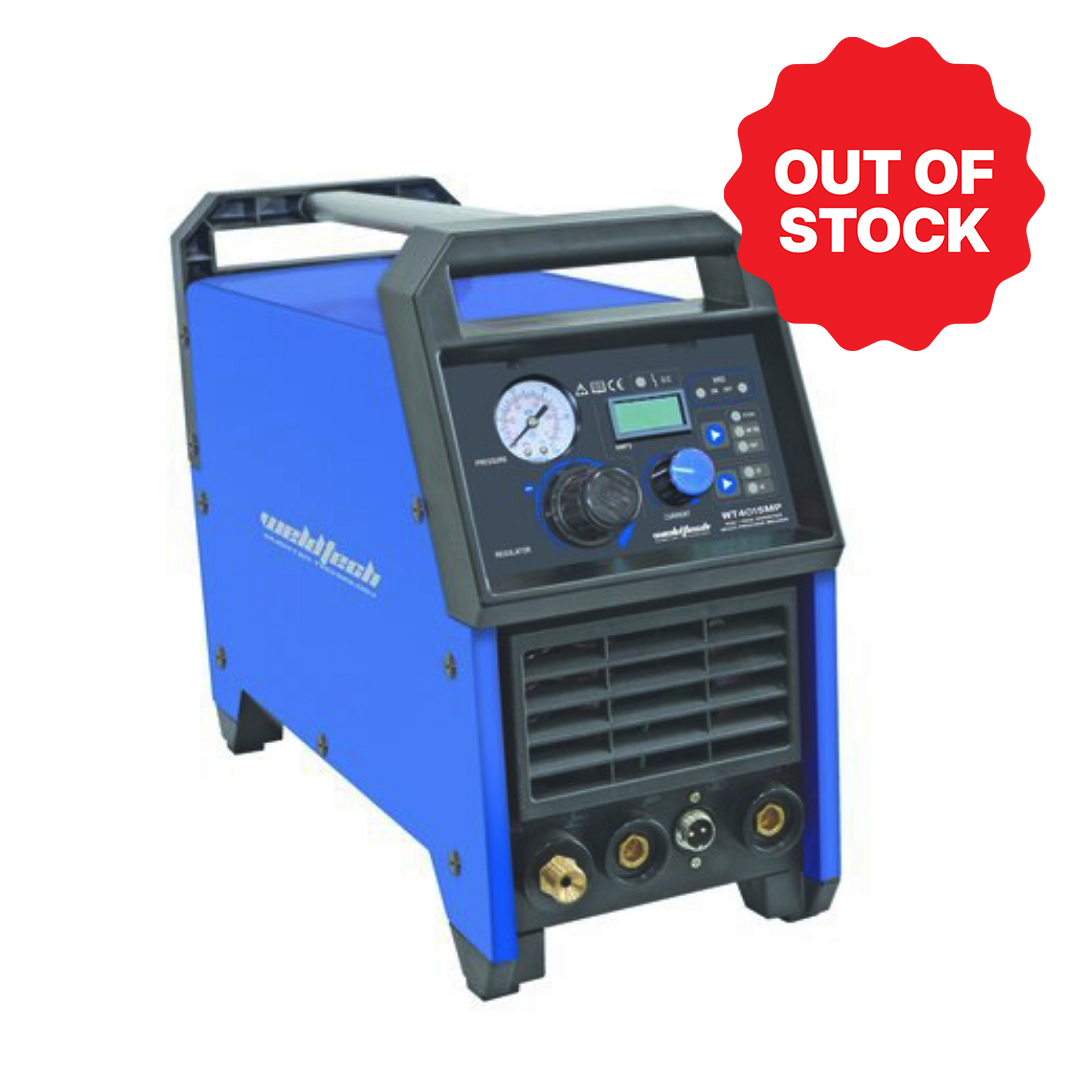

Weldtech Plasma Cutter Inverter Welder WT4015MP

Brand: Weldtech
SKU: 18033
The Weldtech WT4015MP is the perfect multi-process welder for MMA/TIG and plasma cutting tasks around the workshop!
$ 895 .00 excl GST
$ 1,029.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Weldtech WT4015MP is the perfect multi-process welder for MMA/TIG and plasma cutting tasks around the workshop!

Powerful - 150A welding power MMA/TIG. 40A plasma output current - cuts up to 12mm steel
Portable - Only 9.5kg super lightweight and portable
Reliable - Cutting edge IGBT Inverter Technology

Includes: 5m Plasma Torch, 3m Earth Lead, 3m MMA Lead w/twist Lock Electrode Holder, 4m Tig Torch

Key Features:

  • Ideal for portable applications
  • Increased duty cycle and efficiency
  • Increased starting performance and consumable life
  • Lightweight and compact design – only 9.5kg
  • Protected from damage and allows direct compressed air connection to the machine

Specifications

Products specifications
Input Power Supply230V AC 15A 50/60Hz
Input Power Supply TolerancePlus/Minus 15%
Maximum Input Current29.1A
Generator Capacity6.7 KVA
Plasma Output Current20-40A
Duty Circle40A@30%, 27A@60% 21A@100%
Weight9.5kg
Dimention415x194x307mm
Plasma Production Cut Capacity Carbon Steel10mm
Plasma Production Cut Capacity Aluminium6mm
Plasma Severance Cut Capacity Carbon Steel12mm
Insulation ClassIP21
Power Factor0.73
Compressed Air Inlet FittingAro 1/4" Male
Power Efficiency0.008
The Weldtech WT4015MP is the perfect multi-process welder for MMA/TIG and plasma cutting tasks around the workshop!

Powerful - 150A welding power MMA/TIG. 40A plasma output current - cuts up to 12mm steel
Portable - Only 9.5kg super lightweight and portable
Reliable - Cutting edge IGBT Inverter Technology

Includes: 5m Plasma Torch, 3m Earth Lead, 3m MMA Lead w/twist Lock Electrode Holder, 4m Tig Torch

Key Features:

  • Ideal for portable applications
  • Increased duty cycle and efficiency
  • Increased starting performance and consumable life
  • Lightweight and compact design – only 9.5kg
  • Protected from damage and allows direct compressed air connection to the machine
Products specifications
Input Power Supply230V AC 15A 50/60Hz
Input Power Supply TolerancePlus/Minus 15%
Maximum Input Current29.1A
Generator Capacity6.7 KVA
Plasma Output Current20-40A
Duty Circle40A@30%, 27A@60% 21A@100%
Weight9.5kg
Dimention415x194x307mm
Plasma Production Cut Capacity Carbon Steel10mm
Plasma Production Cut Capacity Aluminium6mm
Plasma Severance Cut Capacity Carbon Steel12mm
Insulation ClassIP21
Power Factor0.73
Compressed Air Inlet FittingAro 1/4" Male
Power Efficiency0.008
