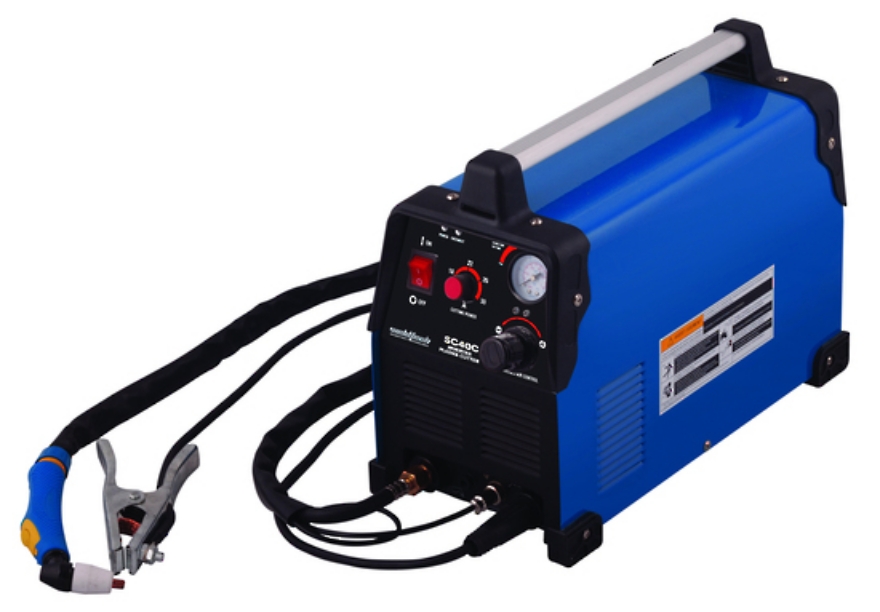

Weldtech 40A Inverter Plasma Cutter Wt-Sc40C

Brand: Weldtech
SKU: SC40C
The SC40C makes light work of any metals including stainless, steel and aluminium. Cuts up to 10mm steel & 6mm Aluminium.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Weldtec wt sc40c has now replaced the xsc40c.

This new model has some exciting new features, including:

  • Built-in self-draining water trap creating clean dry air for added consumable life
  • Heavy-duty case with full-length aluminium handle
  • Common, low-cost torch consumables
  • The air hose plugs directly into the rear panel with 3/8 Nitto quick coupling

Key Features

  • Cuts up to 10m mild steel and 6mm alloy
  • HF Pilot ARC
  • Inbuilt air regulator for precision control
  • Complete with torch and earth clamp ready to go

Specifications

Products specifications
Input Power Voltage Freq. (V)230 +/- 15% 50Hz Single phase
Rated Input Power Capacity (KVA)6
No Load Voltage (V)272
Output Current Range (A)10 - 40
Rated Output Voltage (V)85 - 96
Duty Cycle40
Insulation ClassF
Weight10
Dimensions415 x 200 x 310mm
Max Cut Thickness10mm

The Weldtec wt sc40c has now replaced the xsc40c.

This new model has some exciting new features, including:

  • Built-in self-draining water trap creating clean dry air for added consumable life
  • Heavy-duty case with full-length aluminium handle
  • Common, low-cost torch consumables
  • The air hose plugs directly into the rear panel with 3/8 Nitto quick coupling

Key Features

  • Cuts up to 10m mild steel and 6mm alloy
  • HF Pilot ARC
  • Inbuilt air regulator for precision control
  • Complete with torch and earth clamp ready to go
Products specifications
Input Power Voltage Freq. (V)230 +/- 15% 50Hz Single phase
Rated Input Power Capacity (KVA)6
No Load Voltage (V)272
Output Current Range (A)10 - 40
Rated Output Voltage (V)85 - 96
Duty Cycle40
Insulation ClassF
Weight10
Dimensions415 x 200 x 310mm
Max Cut Thickness10mm
